Specification
Brand : TBVECHI
BulletPoint1 : Excellent Heating Performance: Each lamp comes with two 1000W carbon fiber heating tubes for quick and powerful heating which can reach approximately 400℉ in a short time and can cover an area of about 35ft³.
BulletPoint2 : Build to Last: The galvanized board with high-temperature spraying plastics treatment provides this product with high hardness, resistance to corrosion and rust, and long service life.
BulletPoint3 : Thoughtful Design: The product can be adjusted up and down by 45° to allow for more flexibility in the direction of heat transfer.
BulletPoint4 : Quick Heat Dissipation: It comes with multiple heating dissipation holes to quickly dissipate the heat, and prevent the product from overheating.
BulletPoint5 : Sturdy Brackets: The brackets with pre-drilled holes allow for easier and firmer installation. Iron Wire Net, It prevents large foreign objects from entering and protects the heating tubes from damage or direct contact with flammable materials.
Color : Red

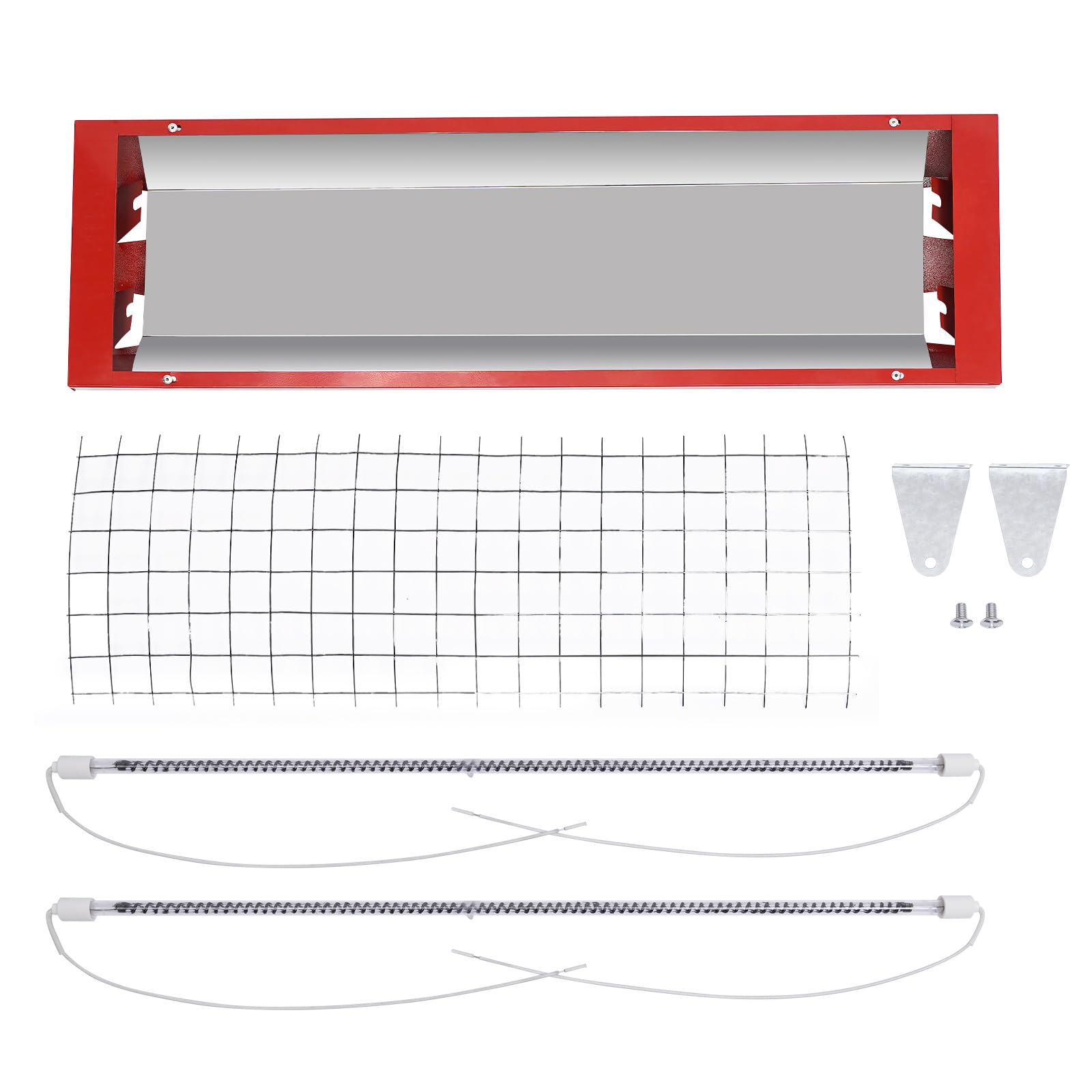

IncludedComponents1 : 2* Paint Curing Lamps
IncludedComponents2 : 4* Brackets
IncludedComponents3 : Other Needed Accessories
IsAssemblyRequired : 1
ItemName : TBVECHI 2pcs Infrared Paint Curing Lamp, 110v 1000w Paint Spray Booth Automotive Heater Lamp Infrared Paint Curing Light for Automobile Paint Booths, Furniture Paint Booths
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-paint-curing-systems
Manufacturer : TBVECHI
Material : Metal
ModelName : TBVECHI
ModelNumber : BI-1135-ED
NumberOfItems : 2
PartNumber : BI-1135-ED
ProductDescription :

Description

This set includes 2 paint curing lamps made of high-quality galvanized boards and treated with a high-temperature plastic spraying process, which provides them excellent durability.     Adopting energy-saving carbon fiber heating tubes, it has high thermal efficiency and improves the baking paint quality, greatly reduces wrinkles and tears, and avoids rework.

Application

The product is suitable for automotive paint booths, local paint drying, putty drying, heaters, printing dryers, and different kinds of drying equipment, etc.

How to Install:

1.    Install the two lamps and hold their ends with 2 clips.

2.    Place the net into the housing.     (Please be careful not to cut your hands.)

3.    Fasten the two brackets to the ends of the housing with screws.

4.    Connect the wires at each end of the lamp (right to right, left to left) and connect them to a neutral energized conductor (make sure the fire wire is on one end while the zero wire is on the other).

Specifications

Color: Red

Style: Modern

Material: Galvanized Board, Iron

Process: High-temperature Spraying Process

Heating Tube Type: Carbon Fiber

Assembly Required: Yes

Voltage: 110V, 50Hz

Heating Area: About 1m³/35.3ft³

Total Power: 2000W

Each Heating Tube Power: 1000W

Heating Temperature: About 200℃/392℉

Product Size: 62*18*5cm/24.4*7*1.97inch

Package Included

2* Paint Curing Lamps

4* Brackets

Other Needed Accessories

Notes

1.    Please check the size carefully before ordering.

2.    Please do not touch its surface and iron wire during heating to avoid burns.

SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 25170000
WarrantyDescription : 2 Year Manufacturer
