SpecificationBrand : sertheha
BulletPoint1 : Build to Last: The paint curing baking lamp is mainly made of carbon steel, aluminum alloy, and stainless steel, after baking paint, mirror, and chrome plating processes, which is solid, wear-resistant, and not easy to deform, ensuring a long service life.
BulletPoint2 : High Efficiency: Paint drying lamp adopts the super high power (800W), high working temperature (lamp tube wall temperature: about 932-1112°F), and stainless steel mirror reflector, thus making heat distribution more uniform, increasing the curing area (1.29ft²), and shortening the curing time.
BulletPoint3 : Short-wave Infrared Heating: It adopts the short-wave infrared curing method, with high luminous efficiency and strong penetration, which can dry from the inside out, so the paint surface after curing has high gloss and strong coating adhesion. It can also greatly reduce wrinkles and tears to avoid rework.
BulletPoint4 : Adjustable Height & Angle: Through the three plum-shaped knobs, you can freely adjust the height from the ground (1.18-61.02in) and 360° rotation angle (in horizontal and vertical directions) of the lamp head, providing flexibility to dry different-sized automotive parts with ease and ensuring comprehensive coverage and consistent results.
BulletPoint5 : Wide Application: Paint curing baking lamp is suitable for baking furniture, baking car paint, baking billboards, baking plastics, baking hardware, heating and drying, dehumidification and mildew removal, scientific experiments, and baking aircraft parts.
Color : Red and Silver
ExternallyAssignedProductIdentifier : 00850021107055
ExternallyAssignedProductIdentifier1 : 0764331292588
ExternallyAssignedProductIdentifier2 : 764331292588
IncludedComponents : Paint Curing Baking Lamp
IncludedComponents1 : 2* Paint Curing Lamps
IncludedComponents2 : 4* Brackets
IncludedComponents3 : Other Needed Accessories
IncludedComponents4 : Accessories for Assembly
IsAssemblyRequired : 1

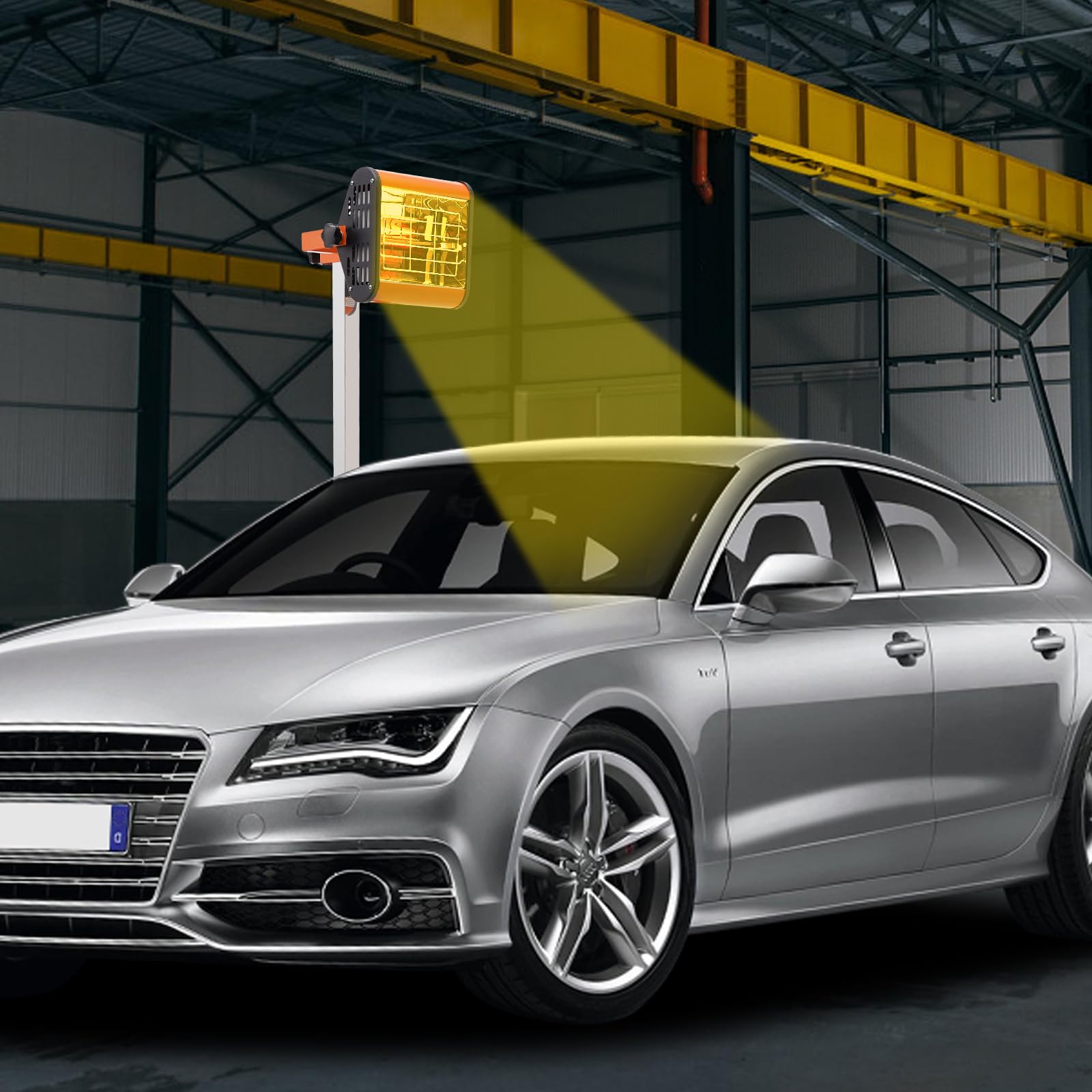

ItemName : sertheha Paint Curing Baking Lamp, 800W110V Short Wave Infrared Paint Drying Lamp for Car Paint Spray Body Repair, Infrared Paint Dryer with Smart Timer and Height Adjustable
ItemPackageDimensions_Height : 15.0876 centimeters
ItemPackageDimensions_Length : 1.1938 centimeters
ItemPackageDimensions_Width : 10.0076 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-paint-curing-systems
LegalComplianceCertifications : CARB Complicance Certificate
LightType : Halogen
Manufacturer : sertheha
Material : Tungsten, Glass, Halogen Gas
Material1 : Stainless Steel
Material2 : Metal
ModelName : Paint Curing Baking Lamp
ModelNumber : Paint Curing Baking Lamp
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Paint Curing Baking Lamp
PowerConsumption : 1000 watts
PowerSourceType : Corded Electric
ProductDescription :
Specifications
Material: Carbon Steel, Aluminum Alloy, Stainless Steel, Glass
Process: Baking Paint, Mirror, Chrome Plating
Color: Orange, Silver, Black
Style: Modern
Mount Type: Floor Mount
Assembly Required: Yes
Plug Type: US Standard
Rated Voltage: 110V 50/60Hz
Rated Power: 800W
Input Current: 4A
Timing Range: 0-60min
Working Temperature: About 500-600℃/932-1112°F(Lamp Tube Wall Temperature)
Rotation Angle: 360°(Horizontal, Vertical)
Maximum Baking Area: 0.12m²/1.29ft²
Baking Time: 7-17min
Lamp Tube Type: 1* Quartz Halogen Lamp Tube(Included)
Lamp Tube Length: 20cm/7.9in
Power Cord Length: About 3m/9.8ft
Adjustable Height Range: 3-155cm/1.18-61.02in(Distance from Lamp Head to Ground)
Overall Product Size: 38*35*170cm/15*13.8*67in
JKEJTM-000100US(Lamp+Base)
Gross Weight: 5.3kg/11.68lbs
Net Weight: 5kg/11lbs
Package Size: 39*36*16cm/15.35*14.17*6.3in
JKEJTM-000200US(Pole)
Gross Weight: 1.3kg/2.87lbs
Net Weight: 1.1kg/2.43lbs
Package Size: 149*4*4cm/58.66*1.57*1.57in
Package Included
1* Paint Curing Baking Lamp
1* English Manual
All Accessories for Assembly
ProductSiteLaunchDate : 2024-08-22T03:31:09.648Z
RecommendedUsesForProduct1 : Garden sprayer
RecommendedUsesForProduct2 : Sanitizing
RegulatoryComplianceCertification : NSDOS.0384EM-005
RequiredProductComplianceCertificate : California Air Review Board (CARB)
SafetyWarning : Adjust and try the pressure of the nozzle before use. If it does not work properly, you can debug the rotary knob. If the gun does not emit water or ejects weakly, check the nozzle for blockage by foreign objects. Please make sure that the pressure adjustment knob is not rotated too close clockwise or too far out counterclockwise. According to the thickness and density of the sprayed material, please moderate the pressure and spraying distance to avoid damage. After each use, please inject 1-2 drops of lubricant into the oil hole, and empty spray for a few seconds. The main material of this product is aluminum alloy and brass. Please do not contact acidic and alkaline liquid to prevent corrosion. This is a high-pressure cleaning gun, and it is strictly forbidden to point the muzzle at people.
Size : 18.5*18.5*47.2in
SpecificUsesForProduct : Automobile Painting, Furniture Painting, Machinery Painting
Style : Gun
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 25170000
Voltage : 110 volts
WarrantyDescription : 90days
Wattage : 1000 watts
