Specification
Brand : njxbrek
BulletPoint1 : Infrared Paint Curing Lamp: Its working temperature can reach 200℃, and it uses a special internal high-reflectivity reflector to make the heat more evenly distributed, which can increase the curing area (16.54*19.69in) and reduce the curing time.
BulletPoint2 : Height and Angle Adjustable: We equip you with a telescopic stand, you can adjust its height between 25.59-59.84 by adjusting the two knobs on the stand according to your needs. And you can manually adjust its working angle up to 270°.
BulletPoint3 : Good Heat Dissipation: Its housing is aluminum housing and has the feature of fast heat dissipation. It has numerous small holes on the back of the heat sink, which can greatly enhance its heat dissipation capacity and effectively improve its service life.
BulletPoint4 : Short-wave Infrared Heating: It adopts the short-wave infrared curing method, which has the characteristics of high luminous efficiency and strong penetration. Such a heating method can dry from the inside out, so the paint surface after curing has high gloss and strong coating adhesion. It can also greatly reduce wrinkles and tears to avoid rework.
BulletPoint5 : Timer Function: You can set the time of curing within 0-90 minutes by turning the knob on the back of the light according to the paint surface, which is convenient for you.
Color : Yellow, Black
IncludedComponents : 1* Baking Lamp 1* Handlebar 1* Telescopic Bracket 1* Connecting Plate 1* Fixing Plate 2* Hexagonal Wrenches All Accessories for Assembly
IsAssemblyRequired : 1

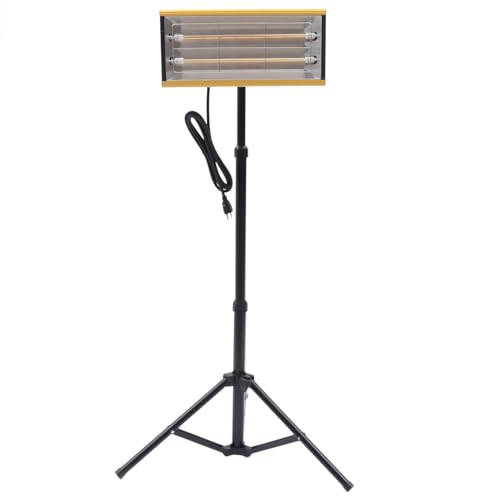

ItemName : Infrared Paint Curing Lamp, 2000W 110V Short Wave Infrared Paint Drying Lamp, Handheld Auto Body Paint Repair Dryer with Telescopic Stand, Height and Angle Adjustable, with Timing Function
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-paint-curing-systems
Manufacturer : njxbrek
Material : Aluminum
ModelName : Infrared Paint Curing Lamp
ModelNumber : Infrared Paint Curing Lamp
NumberOfItems : 1
PartNumber : /
ProductDescription :

Description

Do you want your newly painted surface to dry quickly? Then try this infrared paint-curing lamp. It uses an infrared short-wave curing method, can quickly cure the paint, and its a maximum curing area of 16.54 * 19.69in, so it can greatly meet your requirements of efficiency!



Details

Handlebar: The design of the handlebar increases its portability while also allowing your paint to be cured everywhere.



Screw Holes and Slide Rails: It has screw holes on both sides to allow you to install the appropriate brackets as needed for your convenience. The design of the slide rail also allows you to combine 2 or more infrared paint-curing lamps.



Net Cover: The net cover is made of high-gloss chrome, which is not easy to rust while its proper grid spacing will not cut the efficiency of the infrared paint-curing lamp.



Application

It can be used for automotive painting, field maintenance, engine drying, stripping, putty drying, primer drying, partial paint drying, or preheating before painting.



Installation

1.Mounting Base: Remove the nuts manually. Adjust the bolt to the middle position, align the two holes on the base and place nuts, then tighten the nuts.

2.Mounting Connection Plate: Align the female through holes in the connection plate with the holes on either side of the mounting plate. Tighten the nuts to ensure the connection plate is perpendicular to the mounting plate.

3.Connection Bracket: Remove the swivel nut at the top of the bracket, align the hole in the middle of the connection plate, and tighten the nut.

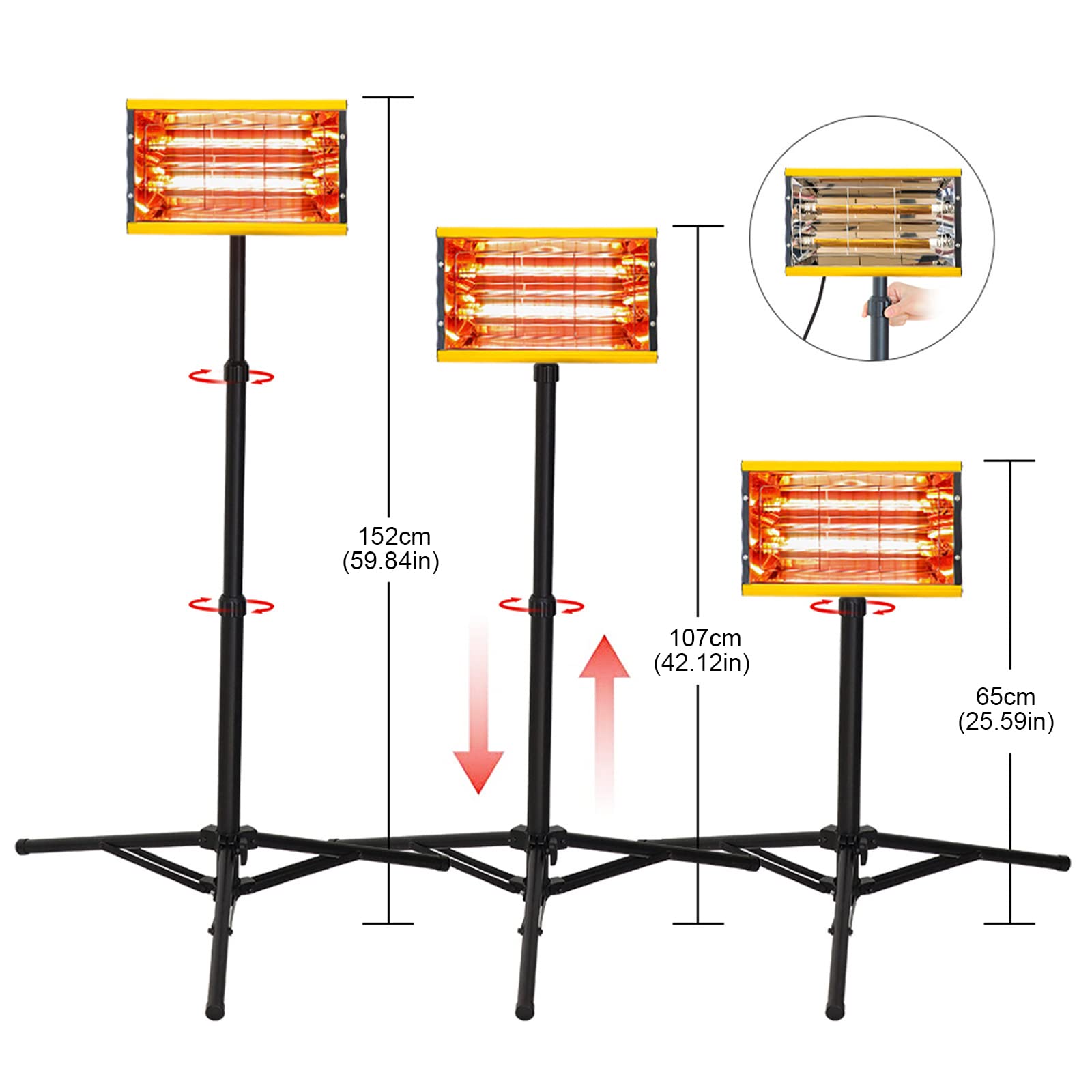

4.Height Adjustment: The free retraction of height is achieved by two rotating devices on the bracket.



Specification

Model: DT-SC-003

Color: Yellow, Black

Plug Standard: American

EU Energy Label Efficiency Labeling Class: A++to E

Efficiency: E

Voltage: 110V

Power: 2000W

Working Temperature: 0-200°C

Working Angle: 0-270°

Maximum Baking Area: 42*50cm/ 16.54*19.69in

Material: Aluminum

Bulb Type: Halogen (Included)

Lamp Length: 27cm/ 10.6in

Baking Lamp Size: 41.5*7*19cm/ 16.3*2.8*7.5in

Total Height Range: 65-152cm/ 25.59-59.84in

Package Size: 62*34*19cm/ 24.41*13.39*7.48in

Net Weight: 4.9kg/ 10.8lbs

Gross Weight: 5.1kg/ 11.24lbs



Package Included

1* Baking Lamp

1* Handlebar

1* Telescopic Bracket

1* Connecting Plate

1* Fixing Plate

2* Hexagonal Wrenches

All Accessories for Assembly



Notes

1.Please note that minors are not allowed to touch to prevent burns!

2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.



Size : 16.3*2.8*7.5in
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 25170000
WarrantyDescription : 2 Years Warranty
