Specification
Brand : DDYOOK
BulletPoint1 : Short-wave Infrared Heating: It adopts short-wave infrared curing method with high luminous efficiency and strong penetration. This heating method allows drying from the inside out, so the cured paint surface has a high gloss and strong coating adhesion. Reduces creasing and tearing.
BulletPoint2 : High Efficiency: Working temperature can be up to 200℃, internal high albedo reflector, so that the heat distribution is more uniform, good heat dissipation, can increase the curing area (16.54*19.69in), shorten the curing time.
BulletPoint3 : Timer Function: Depending on the condition of the paint surface, the curing time can be set from 0-90 minutes by turning the knob on the back of the lamp, and the lamp will automatically turn off when the timer is finished to minimize safety hazards.

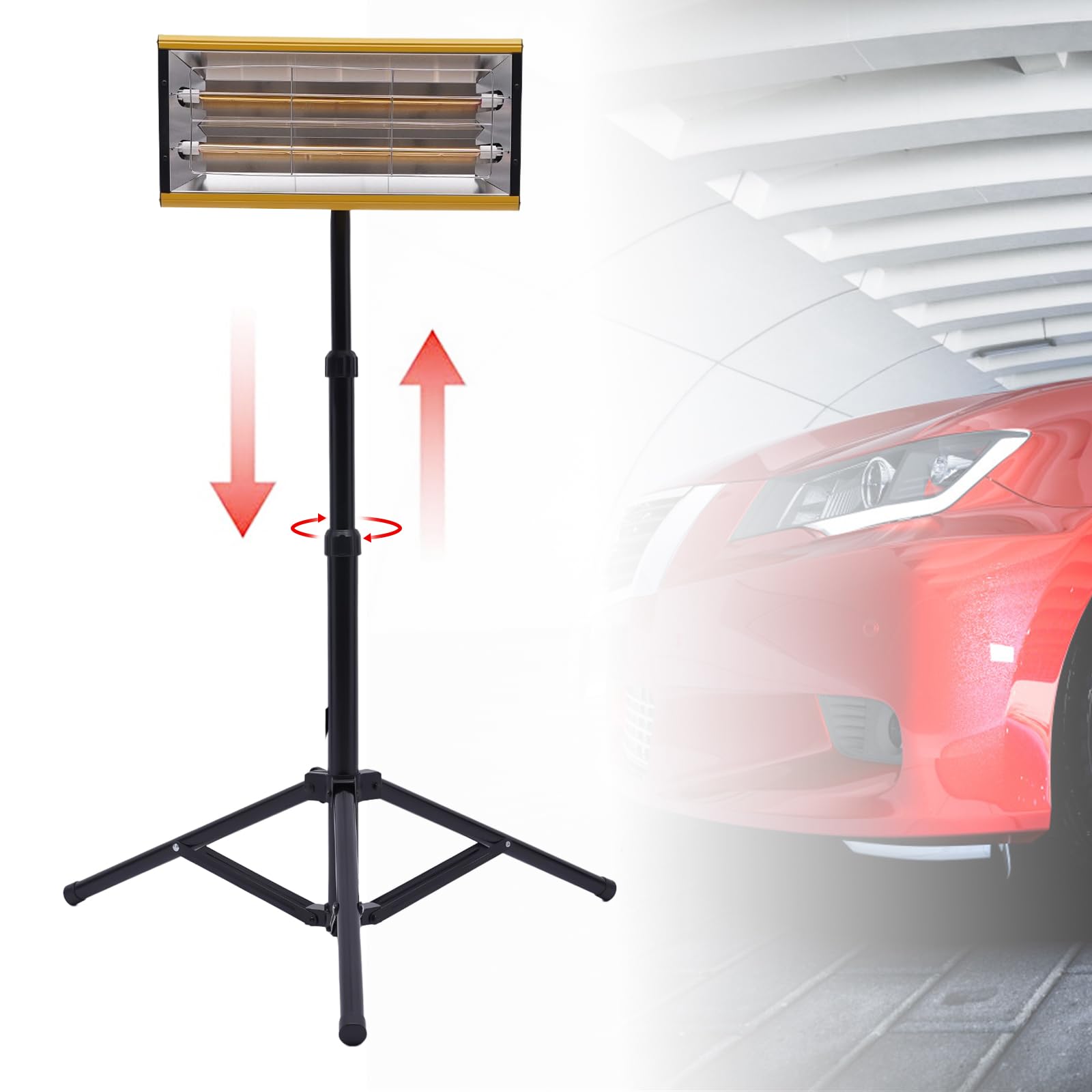

BulletPoint4 : Height and Angle Adjustable: We equip you with a telescopic stand, you can adjust its height between 25.59-59.84 by adjusting the two knobs on the stand according to your needs. And you can manually adjust its working angle up to 270°.
BulletPoint5 : Application: You can use it handheld or with a stand. It can be used for automotive painting, field maintenance, engine drying, stripping, putty drying, primer drying, partial paint drying, or preheating before painting.
Color : Yellow, Black
CompatibleGrooveDiameter : 6 millimeters
Configuration : AWD configuration
FinishType : Zinc
FitType : Universal
GradeRating : Grade 8 8
IncludedComponents : 1* Baking Lamp 1* Handlebar 1* Telescopic Bracket 1* Connecting Plate 1* Fixing Plate 2* Hexagonal Wrenches All Accessories for Assembly
IsAssemblyRequired : 1
ItemName : Baking Infrared Paint Curing Lamp, 2000W 110V Handheld Auto Body Short Wave Infrared Paint Dryer Lamp Heater with Telescopic Bracket and Timer for Car Bodywork Repair, Angle & Height Adjustable
ItemPackageDimensions_Height : 8.5 inches
ItemPackageDimensions_Length : 1.5 inches
ItemPackageDimensions_Width : 5 inches
ItemPackageQuantity : 1
ItemShape : Rectangular
ItemTypeKeyword : automotive-paint-curing-systems
LegalComplianceCertifications : CARB Compliance Certificate
Manufacturer : Aongslank
ManufacturerGrade : Grade 2 2
Material : Aluminum
Material1 : Plastic
Material2 : Alloy Steel
MetalType : Carbon Steel
ModelName : Baking Infrared Paint Curing Lamp
ModelNumber : DT-SC-003
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 150
PartNumber : HDE45
ProductDescription :

Description

It uses an infrared short-wave curing method, can quickly cure the paint, and its a maximum curing area of 16.54 * 19.69in, so it can greatly meet your requirements of efficiency!

Details

1. Handlebar: The design of the handlebar increases its portability while also allowing your paint to be cured everywhere.

2. Screw Holes and Slide Rails: It has screw holes on both sides to allow you to install the appropriate brackets as needed for your convenience. The design of the slide rail also allows you to combine 2 or more infrared paint-curing lamps.

3. Net Cover: The net cover is made of high-gloss chrome, which is not easy to rust while its proper grid spacing will not cut the efficiency of the infrared paint-curing lamp.

Installation

1.Mounting Base: Remove the nuts manually. Adjust the bolt to the middle position, align the two holes on the base and place nuts, then tighten the nuts.

2.Mounting Connection Plate: Align the female through holes in the connection plate with the holes on either side of the mounting plate. Tighten the nuts to ensure the connection plate is perpendicular to the mounting plate.

3.Connection Bracket: Remove the swivel nut at the top of the bracket, align the hole in the middle of the connection plate, and tighten the nut.

4.Height Adjustment: The free retraction of height is achieved by two rotating devices on the bracket.

Specification

Color: Yellow Black

Plug Standard: American

Efficiency: E

Voltage: 110V

Power: 2000W

Working Temperature: 0-200°C

Working Angle: 0-270°

Maximum Baking Area: 42*50cm/ 16.54*19.69in

Material: Aluminum

Bulb Type: Halogen (Included)

Lamp Length: 27cm/ 10.6in

Baking Lamp Size: 41.5*7*19cm/ 16.3*2.8*7.5in

Total Height Range: 65-152cm/ 25.59-59.84in

Package Size: 62*34*19cm/ 24.41*13.39*7.48in

Net Weight: 4.9kg/ 10.8lbs

Package Included

1* Baking Lamp

1* Handlebar

1* Telescopic Bracket

1* Connecting Plate

1* Fixing Plate

2* Hexagonal Wrenches

All Accessories for Assembly

ProductSiteLaunchDate : 2009-06-01T20:57:11.000-00:00
RequiredProductComplianceCertificate : California Air Review Board (CARB)
Size : Baking Lamp Size: 41.5*7*19cm/ 16.3*2.8*7.5in
StreetDate : 2017-10-18T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 25170000
WarrantyDescription : 1 YEAR
