Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Graigar
BulletPoint1 : With ARM-based 32-bit SCM, highly integrated hardware, new reliability level.480x272 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
BulletPoint2 : Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;Silicon panel and pushbuttons for better operation in high-temperature environment;
BulletPoint3 : RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol;ETHERNET communication interface with multiple monitoring modes;
BulletPoint4 : Micro SD port for recording of real-time operational data; Equipped with SMS (Short Message Service) function. When genset is alarming, controller can send short messages via SMS automatically to max. 5 telephone numbers. besides, generator status can be controlled and checked using SMS;
BulletPoint5 : Equipped with CANBUS port and can communicate with J1939 genset. Not only can you monitoring frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown , raising speed and speed droop via CANBUS port. Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
Color : Black
CompatibleDevices : Solar
ExternallyAssignedProductIdentifier1 : 0707457579997
ExternallyAssignedProductIdentifier2 : 707457579997
Hazmat1 : UN3480
IncludedComponents : Battery

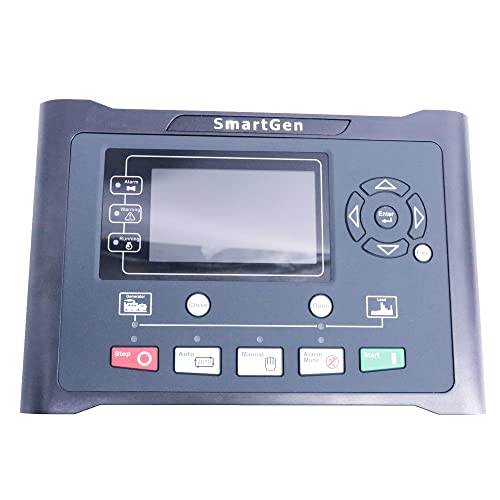

ItemName : Smartgen HGM9610 Remote Auto Start/Stop Generator Controller with Ethernet Port, Schedule Function, CANBUS
ItemPackageDimensions_Height : 13 centimeters
ItemPackageDimensions_Length : 49 centimeters
ItemPackageDimensions_Width : 21 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : pagers
Manufacturer : Graigar
Material : Plastic
ModelName : pag0250
ModelNumber : HGM9610
NumberOfItems : 1
NumberOfLithiumIonCells : 1
PartNumber : HGM9610
ProductDescription :

HGM9610, used for single automation systems, auto start/stop of the unit performed with the help of remote signal.

Display:4.3 inches TFT-LCD (480*272)

Operation Panel:Silicon Rubber

Language:Chinese & English & Others

Digital Input:8

Relay Output:8

Analogue Input:5

AC System:1P2W/2P3W/3P3W/3P4W

Alternator Frequency:50/60Hz

kW/Amp Detecting & Display:yes

Monitor Interface:RS485

Programmable Interface:USB/RS485

CANBUS(1939):yes

RTC & Event Log:yes

Scheduled Start Genset:yes

Maintenance:yes

ULP:yes

SMS:yes

Ethernet:yes

SD Card:yes

DC Supply:DC(8～35)V

Case Dimensions(mm):266*182*45

Panel Cutout(mm):214*160

Operating Temp.:(-25~+70)℃

Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.

For Mains, controller has over and under voltage, over and under frequency, loss of phase and phase sequence wrong detection functions; For generator, controller has over and under voltage, over and under frequency, loss of phase, phase sequence wrong, over and reverse power, over current functions;

3 fixed analog sensors (temperature, oil pressure and liquid level);

2 configurable sensors can be set as sensor of temperature, oil pressure or fuel level;

Precision measure and display parameters about Engine,

Protection: automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;

All output ports are relay-out;

Parameter setting: parameters can be modified and stored in internal EEPROM memory and cannot be lost even in case of power outage; most of them can be adjusted using front panel of the controller and all of them can be modified using PC via USB, RS485
ProductSiteLaunchDate : 2020-02-01T08:00:00.000Z
RecommendedUsesForProduct : Digital
Reusability : Rechargeable
SafetyDataSheetUrl : https://www.bornmieo.com/product/MSDS.pdf
Style : 1 CMU, 30 Call Buttons,1 Clear Call Button & 1 Pager
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : transportation
SupplierDeclaredDgHzRegulation2 : storage
SupplierDeclaredDgHzRegulation3 : other
UnitCount : 1
UnspscCode : 31000000
Voltage : 4.8 volts
