Specification
Brand : Proxicast
BulletPoint1 : DESIGNED FOR VHF, UHF, TWO-WAY, AMATEUR / HAM and CB RADIOS - Features 2 UHF Female SO239 Connectors
BulletPoint2 : BI-DIRECTIONAL PROTECTION - High Quality Construction - Outdoor Rated - Suitable for In-Line Use
BulletPoint3 : VERY LOW RF INSERTION LOSS (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through
BulletPoint4 : 230V GAS DISCHARGE TUBE - Coaxial Cable Surge Protector with Multi-Strike Capability Shunts Damaging Surges, Transients, and Lightning Energy to Ground
BulletPoint5 : CONNECT COAXIAL SURGE PROTECTOR to Antenna Signal Feedline and Earth Ground
Color : UHF-Female/UHF-Female
ExternallyAssignedProductIdentifier1 : 850021295295
ExternallyAssignedProductIdentifier2 : 0850021295295
Impedance : 50 ohm

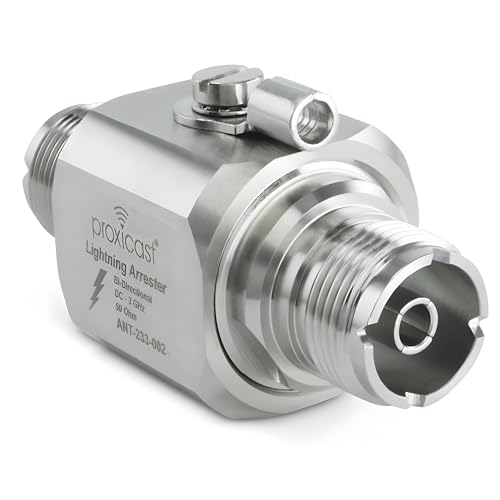

ItemName : Proxicast Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas (ANT-233-002)
ItemPackageDimensions_Height : 7.8994 centimeters
ItemPackageDimensions_Length : 4.191 centimeters
ItemPackageDimensions_Width : 4.191 centimeters
ItemPackageQuantity : 1
ItemShape : Flat
ItemTypeKeyword : electronic-surge-protectors
Manufacturer : Proxicast
ModelName : ANT-233-002
ModelNumber : UHF-Female/UHF-Female
NumberOfChannels : 1
NumberOfItems : 1
PartNumber : ANT-233-002
ProductDescription : This gas discharge tube coaxial lightning surge protector features UHF Female SO-239 connectors and wide-band operation from DC to 3 GHz with low RF insertion loss.

This antenna surge protector will pass DC, so it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LNAs. Both connector ports are equally protected - it can be installed in either orientation. A ground lug on the housing provides superior grounding.

A Coaxial lightning suppressor should be installed between outdoor antennas and radio equipment and as close a possible to the equipment to be protected, often at the point where the coax cable enters the building to protect equipment, structures and personnel from high-energy electrical pulses carried through the coax cable either from a direct or nearby lightning strike.

Specifications
• Frequency Range: 0 - 3 GHz
• Impedance: 50 ohms
• Discharge Voltage: DC 230V
• Max Power: 200 W
• Insertion Loss: < 0.2 dB
• VSWR ADGP < 1.2

Material
• Connector Body: Nickel Plated Brass
• RoHS compliant
• Connectors: UHF Female SO-239
• Ground Lug
• Dimensions 2.2 x 1.0 in (57 x 25 mm)
• Weight 4.5 oz (127.6 g)

Use Self-Bonding silicone tape (ASIN B00K5GW67O) for fast and easy connection weathersealing.

Proxicast is a USA-based manufacturer of wireless equipment.
ProductSiteLaunchDate : 2016-04-10T14:00:00.000Z
Size : UHF-Female/UHF-Female
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 43220000
Voltage : 230 volts
Wattage : 200 watts
