Product Information
Specification
Brand : PGN Bearings
BulletPoint1 : ANSI Chain No.: #60
BulletPoint2 : Single Strand
BulletPoint3 : 0.75 inch Pitch
BulletPoint4 : Chrome Steel
ExternallyAssignedProductIdentifier1 : 0810135409407
ExternallyAssignedProductIdentifier2 : 810135409407
ItemName : PGN #60 Roller Chain Connecting Links (100 Pack)
ItemTypeKeyword : pulling-and-lifting-chain-links
Manufacturer : PGN BEARINGS
NumberOfItems : 1
PartNumber : RC-#60-CL/100

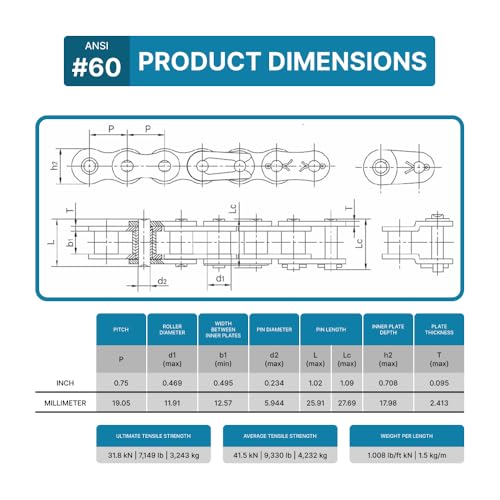

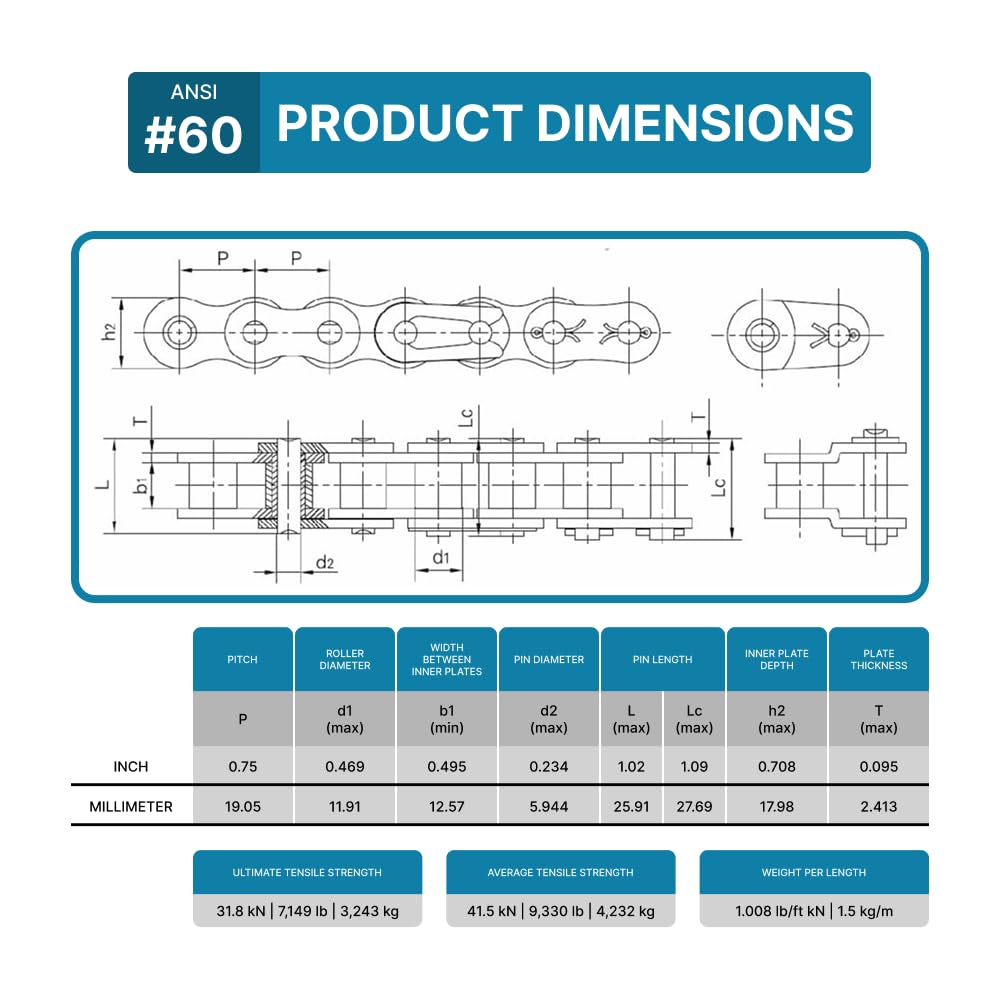

ProductDescription : ANSI Chain No.: #60
Pitch (P): 0.75 inch (19.050 mm)
Roller Diameter (d1 max): 0.469 inch (11.91 mm)
Width Between Inner Plates (b1 min): 0.495 inch (12.57 mm)
Pin Diameter (d2 max): 0.234 inch (5.94 mm)
Pin Lenght (L max): 1.02 inch (25.90 mm)
Pin Lenght (Lc max): 1.09 inch (27.70 mm)
Inner Plate Depth (h2 max): 0.708 inch (18.00 mm)
Plate Thickness (T max): 0.095 inch (2.42 mm)
Ultimate Tensile Strenght (Q min): 31.80/7227 kN/LB
Average Tensile Strenght (Qo): 41.5 kN
Weight (q): 1.008 lb/ft (1.5 kg/m)
ProductSiteLaunchDate : 2025-06-10T12:10:47.141Z
UnitCount : 1
