Specification
Brand : Xiangtat
BulletPoint1 : 【Oscilloscope】This dual-channel oscilloscope can measure pulse waves, circular waves, noise waveforms, and more. When dealing with unknown waveforms, the AUTO automatic recognition function can be used. This powerful auxiliary feature varies in recognition time depending on the size and complexity of the waveform, enhancing measurement efficiency
BulletPoint2 : 【Multimeter】In multimeter mode features 25000 counts and can measure resistance, capacitance, continuity, diodes, and current. Its multifunctional design makes it an ideal tool for electronic measurements, offering high precision and a wide range of applications
BulletPoint3 : 【High Speed Mode】The ZT-703S oscilloscope offers two operating modes, which can be switched on the fourth page of the menu. In normal mode, it features a sampling rate of 200MSa/s and a maximum measurement bandwidth of 30MHz, consuming less power and being more energy-efficient. In high-speed mode, it has a sampling rate of 280MSa/s and a maximum bandwidth of 50MHz, with higher power consumption. The storage depth is 128K, catering to different usage needs
BulletPoint4 : 【Signal Generator Mode】In the expanded application mode, the Oscilloscope can store waveform images and activate the signal generator function. It can output sine waves, square waves, triangle waves, and more, with synchronous display in the demonstration window for easy observation and comparison, greatly expanding the device's application range
BulletPoint5 : 【Charging & Data Transfer】This product uses a Type-C charging port for both charging and data transfer. The Type-C interface supports fast charging and efficient data transfer, making the device more convenient and efficient to use. Due to the multiple functions of this product, please read the user manual before use, and refer to the manual for troubleshooting during use
Color : red
ExternallyAssignedProductIdentifier1 : 0765477855682
ExternallyAssignedProductIdentifier2 : 765477855682
IncludedComponents : Oscilloscope Multimeter，Test Leads，Two Oscilloscope Probes，Carrying Case

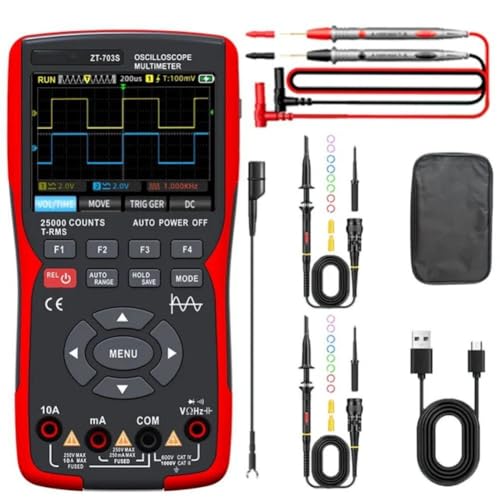

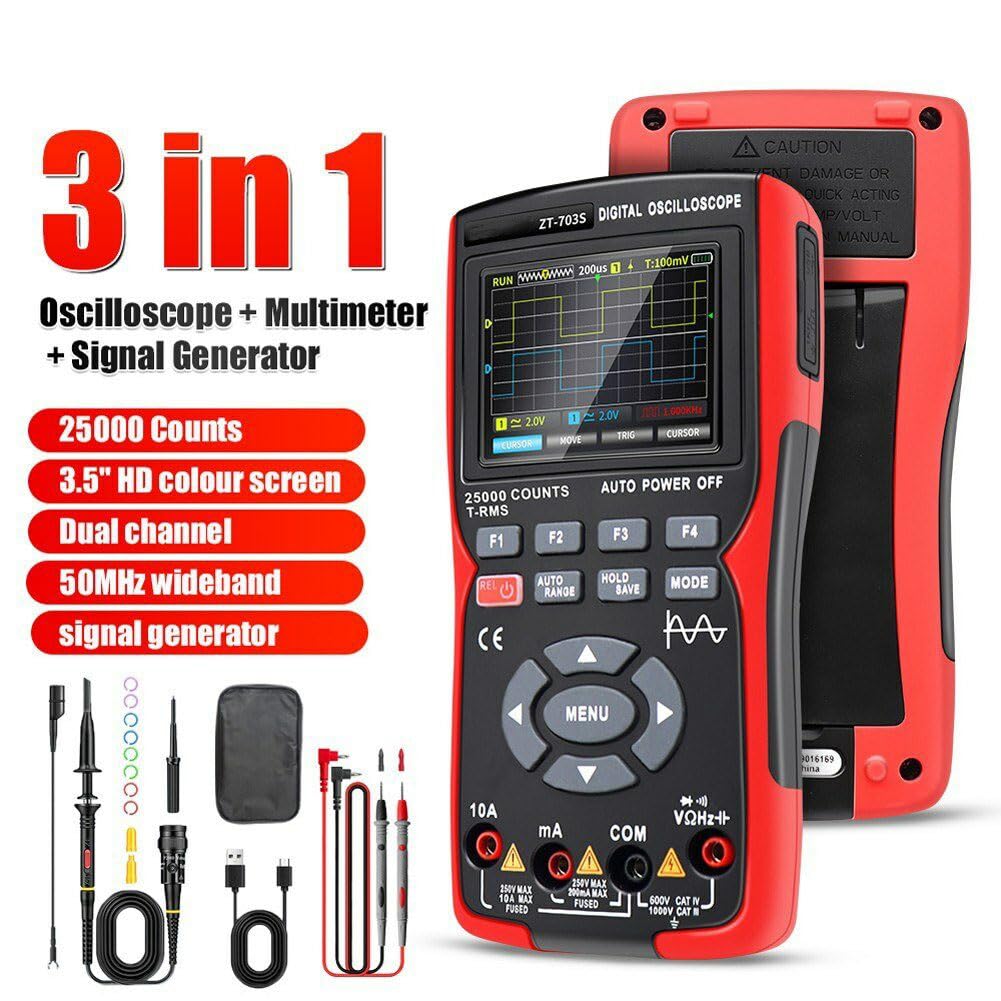

ItemName : Xiangtat 3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
ItemPackageDimensions_Height : 28.0924 centimeters
ItemPackageDimensions_Length : 8.3058 centimeters
ItemPackageDimensions_Width : 19.2024 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Xiangtat
MaximumOperatingVoltage : 3.7 volts_of_direct_current
MeasurementAccuracy : 0.01
ModelNumber : Digital Multimeter
NumberOfItems : 1
PartNumber : Digital Multimeter
PowerSourceType : Battery Powered
ProductDescription : Specifications:

Name: 3in1 Oscilloscope Multimeter

Material: ABS+TPE

Type: standard configuration, high configuration (optional)

Battery: 1 * built-in 3400mAh 18650 battery (included)

Display: 3.5inch color display, 25000 words

Screen resolution: 320*240

DCCurrent: 25.000mA-250.00mA; 2.5000A-10.000A ±(0.8%+3)

ACCurrent: 25.000mA-250.00mA; 2.5000A-10.000A ±(0.5%+3)

DCVoltage: 25.000mV-250.00mV; 2.5000V-1000.0V ±(0.5%+3)

ACVoltage: 25.000mV-250.00mV; 2.5000V-750.0V ±(0.5%+3)

AC current frequency response: 40Hz-1kHz

Resistance: 0-250.0ΜΩ, ±(1%+3)

Capacitance: 0-99 99mF, ±(2.0%+5)

Frequency: 0-999,9kHz, ± (0.1%+3)

Mode: Auto+Manual

Sampling Rate: 3 times/secon

Language: Chinese/English

True RMS: yes

Backlighting: yes

Diode: yes

Buzzer: yes

Low battery indicator: yes

Screen backlight: yes

Data Hold: yes

Bandwidth: 50MHz

Sampling rate: 1.5Sa/S-280MSa/S

Waveform interpolation: (sinx)x

Sweep speed: 10ns/div-20s/div

Time base accuracy: 20ppm

Record length: Up to 128Kbyte

Channel: 2

Trigger: auto, normal, single

Automatic measurement: Period, frequency, peak-to-peak, max, Min, RMS, Duty Cycle, Number of Pulses

Sianal gonerator: Sinewave, SQW, sawtoothwave, halfwave, fullwave

Operation mode: Normal mode 200MSa/s, high speed mode 280MSa/s

Display mode: YT, XY, Rolling

Afterglow mode: Minimum, 500ms, 1s, 10s, Unlimited

Operating temperature: 0-40℃

Item size: 177 * 89 * 40mm / 6.97 * 3.50 * 1.57in

Package size: 232 * 132 * 67mm / 9.13 * 5.20 * 2.64in

Package weight: 732g / 1.61lb


Package included:

Type B: (High Configuration)

1 x 3in1 Oscilloscope Multimeter

2 x Test Probe with Accessory Set

1 x Pair of Meter Pen

1 x Cable

1 x Storage Bag
ProductSiteLaunchDate : 2024-02-28T03:02:15.745Z
Style : Handheld Oscilloscope Automotive Dual Channel 50MHz
SupplierDeclaredDgHzRegulation : other
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41113600
