Specification
Brand : Yuecoom

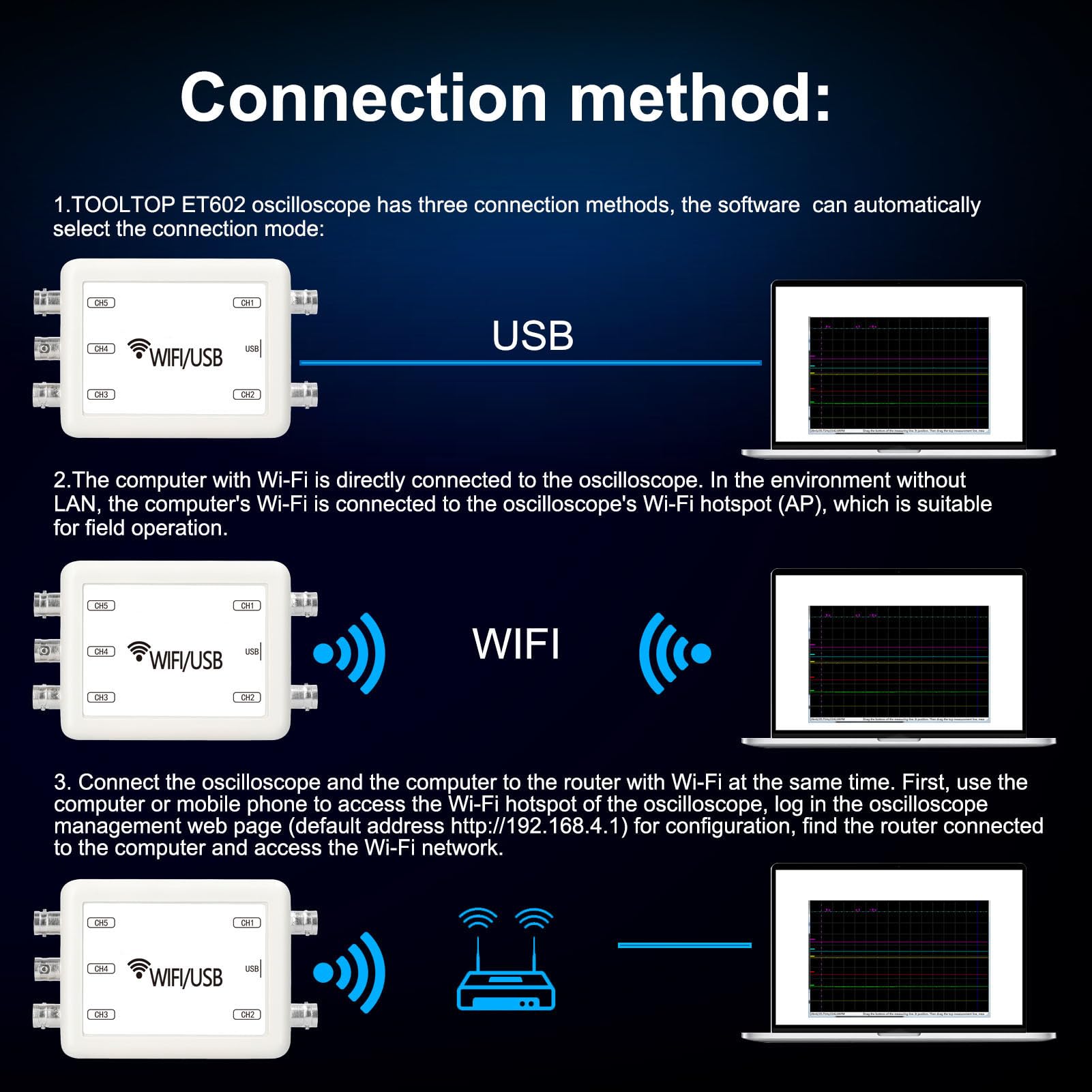

BulletPoint1 : Wifi USB Connection: ET602 is a digital oscilloscope that can be connected wirelessly with a computer or mobile phone, which can achieve physical isolation between the test site and the technician's operation site, such as high-voltage equipment that debugging personnel can not access, mobile equipment, and equipment susceptible to interference.
BulletPoint2 : High Performance: The oscilloscope can measure frequency range 0Hz~50kHz, maximum sampling rate 150kHz, maximum measurement voltage ±8V, ±80V (X10 at the probe), amplitude adjustment range 10mV/DIV~1V/DIV, input impedance 1MΩ (
BulletPoint3 : Multi Channel and Multi Modes: The virtual oscilloscope supports 5-channel input and synchronised display; automatic amplitude measurement, providing 4 measurement modes. The oscilloscope can set any channel as the (trigger) source, set the rising or falling edge (trigger) , and the (trigger) level is adjustable.
BulletPoint4 : Input Catch(Trigger) Function: When the handheld oscilloscope is started, the saved data will be automatically imported, the data can be backed up, the backup data waveforms can be viewed at any time in the future, and can display any two channels of differential signals, and can also be expanded and compressed waveforms.
BulletPoint5 : Data Saving: Virtual oscilloscope is suitable for long-term monitoring and archiving of the operating status of electrical equipment, for long-term acquisition and archiving of data such as temperature, humidity, lighting, etc., and can be used for electronic circuit testing, circuit function testing, design and manufacturing testing.
ExternallyAssignedProductIdentifier1 : 094308439235
ExternallyAssignedProductIdentifier2 : 0094308439235
IncludedComponents : Scope 4824A 8 channel 20MHz USB 3

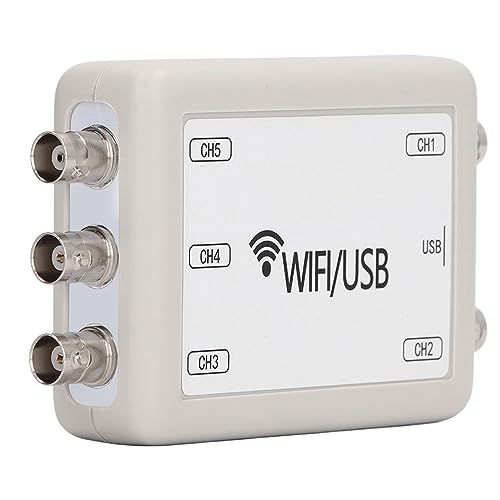

ItemName : Virtual Oscilloscope, Handheld Portable Digital Oscilloscope USB 5 Channel Tablet PC Mobile Phone Oscilloscope 0Hz~50kHz Frequency Range 150kHz Sampling Rate
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Yuecoom
ModelName : Vingvo8v07mgqa4i
ModelNumber : VINGVO8v07mgqa4i
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Yuecoomb6mkgc58tp
ProductDescription : Feature:
1. WIDE RANGE OF USES: Virtual oscilloscope is suitable for long term monitoring of the running status of electrical equipment and archiving, suitable for long term collection and archiving of temperature, humidity, lighting and other data, and can be used for electronic circuit testing, circuit function testing, design and manufacturing testing
Specification:
Item Type: Virtual Oscilloscope
Wireless Communication Mode: WiFi 2.4G
Interface Type: USB 2.0
Input Interface Type: BNC interface, connected to universal oscilloscope probe cable
Maximum Sampling Rate: 150kHz
Working Voltage: 5V Micro USB interface power supply
Current Consumption: <2A
Measureable Frequency Range: 0Hz~50kHz
Amplitude Adjustment Range: 10mV/DIV ~ 1V/DIV
Input Impedance: 1MΩ(<0.5V/DIV); 330kΩ(≥0.5V/DIV)
Maximum Measuring Voltage: ±8V, ±80V(X10 at probe)
Time Domain: 100uS/DIV ~ 10800S/DIV
Data Recording and Storage Depth: 8388608x5
Maximum Time to Record and Save Data: 90 Hours

Package List: 1 x Host 1 x USB Cable 5 x Probe 1 x User Manual
