Specification
Brand : WnewTools
BulletPoint1 : 2uff1a100MHz analog bandwidth @ 100GSa/s sampling rateuff081X = 5MHzuff0c10X = 100MHzuff09
BulletPoint2 : 1uff1aIntelligent anti-burnuff0c1X Can withstand up to 400V withstand voltage
BulletPoint3 : 3uff1aFully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
BulletPoint4 : 4uff1aCapacitive touch screen, the same as the touch mode of modern mobile ipaid, is not a resistive touch screen with ancient nail operation
BulletPoint5 : 5uff1aHigh measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400Vuff0c100X can measure 0 ~ 4000V
ExternallyAssignedProductIdentifier1 : 0769902984343
ExternallyAssignedProductIdentifier2 : 769902984343
IncludedComponents : No

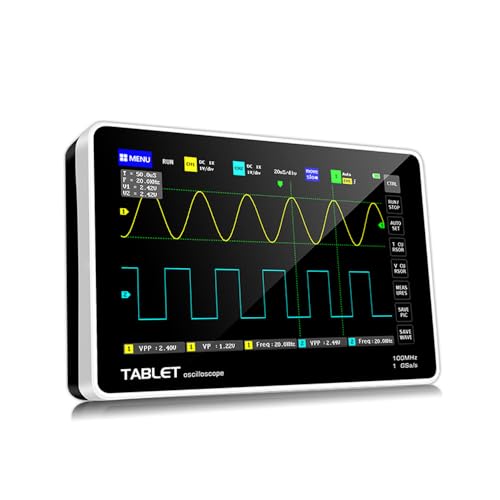

ItemName : Upgraded Version ADS1013D 2 Channels 100MHz*2 Band Width 1GSa/s Sampling Rate Oscilloscope with 7 Inch 800 * 480 Color TFT LCD Touch Screen
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Wnew
ModelName : ADS1013D oscilloscope host
ModelNumber : ATOOL1752476
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL1752476
PowerSourceType : hand_powered
ProductDescription :

Comparison between the new version and the previous version:

1. Product functions and parameters have not changed.

2. Replacement and improved appearance: the screen is replaced with a toughened glass screen, which is more wear-resistant and sturdy; the probe socket is also hidden, which is more beautiful. The overall appearance is more beautiful~

ADS1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1GSa / s and an analog bandwidth of 100MHz * 2 . With complete trigger function (single / normal / automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V. Oscilloscope burnout accident caused by the probe being turned to the 10X position. Large time base scroll mode can monitor slow level changes; Equipped with highly efficient one-key AUTO, which can display the measured waveform without tedious adjustments; the display is equipped with a 7-inch 800 * 480 resolution high-definition LCD LCD screen, and the operation method is capacitor Screen touch + gesture operation, extremely convenient; cursor measurement function, you do not need to read the background scale unit and quantity when manually reading the amplitude and frequency parameters, and you can directly get the peak, peak and frequency without conversion; extremely convenient screenshot And waveform storage function, built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, save the current waveform anytime, anywhere with a single touch, no cumbersome prompts and choices, keep calm The current data is saved in the place, which is very convenient; the powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc., to facilitate secondary analysis. The fuselage is equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis; Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals; Analysis of the harmonic components of the signal; built-in 6000mah lithium battery, which can last for 4 hours on a full charge, and can be used while charging like a notebook

Features:

1：Intelligent anti-burn，1X Can withstand up to 400V withstand voltage

2：100MHz analog bandwidth @ 100GSa/s sampling rate（1X = 5MHz，10X = 100MHz）

3：Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast

4：Capacitive touch screen, the same as the touch mode of modern mobile ipaid, is not a resistive touch screen with ancient nail operation

5：High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V，100X can measure 0 ~ 4000V

6：Up to 12 parameters measurement：VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period

7：Cursor measurement function, it is convenient to manually measure the period and frequency and voltage

8：Complete triggering function (single, normal, automatic)

9：At any time, the waveform display (pause function) is frozen

10：Equipped with high efficiency One-button AUTO

11：One-button waveform storage and screenshot

12：Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

13：Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

14：Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis

15：Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals

16：FFT display function, can analyze the spectral characteristics of the signal

17：Built in 6000mAh rechargeable lithium battery，Fully charged for 4 hours of continuous use at the highest screen brightness

18：Memory compression technology, waveform refresh screen does not flicker

19：Screen brightness adjustment

20：Background grid brightness adjustment

21：Ultra thin, easy to carry

Specifications:

1：Analog band width: 100MHz * 2

2：Number of channels：2 channels

3：Maximum real time sampling rate: 1GSa/s

4：Vertical sensitivity: 50 mV/div ~ 500 V/div

5：Horizontal time base range: 50S/div ~ 10nS/div

6：Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

7：Storage depth: 240Kbit

8：Input resistance: 1M

9：ADC precision: 8bits

10：Coupling mode: AC/DC

11：Trigger mode: Single, Normal, Auto

12：Trigger edge: Rising edge/Falling edge

13：External trigger voltage 0 – 40 V

14：Display: 7 inch - 800*480

15：Operating: Capacitive touch screen + gesture

16：Extension ports：USB picture export

17：Power supply: 6000 mAh lithium battery

18：Size: 184mm x 124mm x 50mm

19：Total weight:650g

Package Included:

1 x ADS1013D oscilloscope host

2 x Matching 100MHz probe（1X and 10X）

1 x 5V2A Charger（Include USB data line）

1 x User manual (English)
