Brand : Marhynchus
BulletPoint1 : [VERSATILE AND CONVENIENT] This handheld portable digital oscilloscope is the tool for professionals and DIY enthusiasts. It combines the functions of a digital oscilloscope, transistor checker tester, and inductance capacitance meter into one compact device.
BulletPoint2 : [COMPREHENSIVE TRANSISTOR TESTING] The Mos test mode can identify device types, pin polarity, hFE, on-state voltage, junction capacitance, , and inductive components of various transistors. Say goodbye to guesswork and improve your electronic projects!
BulletPoint3 : [ PERFORMANCE] Equipped with a high real-time sampling rate and a bandwidth of 500 kHz, this oscilloscope ensures accurate measurements of voltage up to 400V. Ideal for circuit analysis and troubleshooting.
BulletPoint4 : [POWERFUL GENERATOR] The generator mode offers 5 built-in basic waveforms and a frequency output of 1-10kHz with a voltage range of 0-3.3V. Generate different waveforms and calibrate your circuits with ease.
BulletPoint5 : [USER-FRI
Color : #511
ExternallyAssignedProductIdentifier : 7504358324281
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : CA_SmallLithiumIonBatteryWithEquipment
Hazmat11 : CN_SmallLithiumIonBatteryWithEquipment
Hazmat12 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat13 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat14 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat15 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat16 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat17 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat18 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat19 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat21 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat22 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat23 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat24 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat25 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat26 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat28 : IE_SmallLithiumIonBatteryWithEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : US_SmallLithiumIonBatteryWithEquipment
Hazmat6 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat7 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat8 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat9 : JP_SmallLithiumIonBatteryWithEquipment
IncludedComponents : No

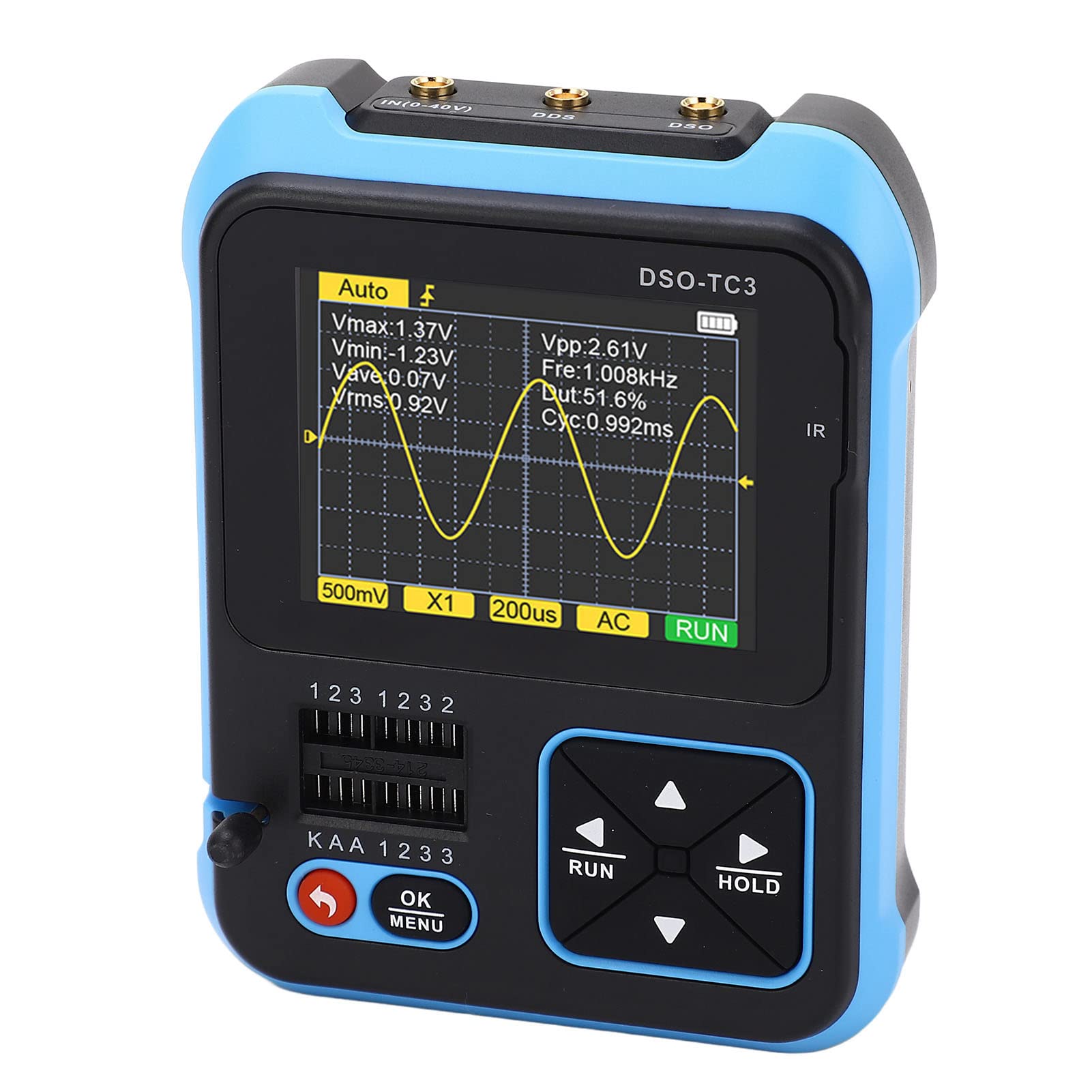

ItemName : Portable Digital Oscilloscope Transistor Checker Tester, Handheld Oscilloscope Meter for Circuit and Component Testing (Standard)
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Marhynchus
MeasurementAccuracy : 0.1mm
MetalType : other
ModelName : Marhynchus1agopf9brm-11
ModelNumber : Marhynchus1agopf9brm-11
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Marhynchus1agopf9brm-11
PowerSourceType : Ac/Dc
ProductDescription : 1. Convenient and 3 in 1: This digital oscilloscope, electronic component tester, and PWM generator function, combined into one. The oscilloscope has a realtime sampling rate and a bandwidth of 500 kHz. Voltage up to 400V can be measured.
2. Identify Device Type: Oscilloscope mode can test the waveform of the circuit, while Mos test mode can test various types of transistors, which can identify device type, pin polarity, hFE, on state voltage, junction capacitance, , inductive components, etc. generator mode, you can use sine, pulse, triangular or ramp waveform.
3. Sine Waveform Frequency Output: The generator has 5 built in basic waveforms, sine waveform frequency output 1‑10KHz 0‑3.3V 50%, vertical sensitivity 10mV to 10V , horizontal time base range 1us‑10s, more waveform data can be obtained per unit time, thus making the waveform more accurate.
4. Screen: The oscilloscope is powered by a built in 1500 mA battery, which will be fully charged in 1‑2 hours via a 5V 2A adapter and can operate for 4 hours (green indicator for completion/red indicator for charging). The digital handheld pocket oscilloscope and transistor tester is designed with a high resolution 2.4 inch screen with adjusting backlight. Better reading experience and easy to use.
5. Multi Interface Screen Display: The oscilloscope can test different functions and support multi interface screen display. With keypad design, it is more convenient to operate and select different test function modes.
6. Applicable Items: The oscilloscope supports PC online , which is especially suitable for fast pairing of transistors, identification of mixed face mount and wordless components, and initial screening of small batch components. It can automatically identify and measure various transistors, including NPN and PNP transistors, diodes, double diodes, etc.

Spec:
Item Type: Digital Oscilloscope
Material: ABS
Main Parameters Of The Machine
Model DSO TC3
Display 2.4 Inch Color Screen, LED Backlight
Power Supply Voltage1 x 803450 1500mah Li Polymers Battery (Shipping With Built In Battery)
Charging SpecificationUSB Type C
Stand SpecificationsOne Piece Foldable Stand
Digital Oscilloscope Mode Parameters
Realtime Sampling Rate 10MSa/s
Analog Bandwidth 500Khz
Input Impedance 1MO
Coupling Method AC or DC
Test Voltage Range ±400V
Vertical Sensitivity 10mV-10V
Horizontal Time Base Range 1us-10s
Actuator Mode Auto, Normal, Single
Actuator Type Rising Or Falling
Waveform Freeze Yes
Automatic Measurement Yes
Component Test Mode Parameters
Class Range Description
Triode β greater than 10 less than 600 Magnification hfe, base emitter voltage Ube, lc/le, collector emitter reverse cutoff current lceo, lces, diode forward voltage drop Uf
Diode Forward voltage drop Forward voltage drop, junction capacitance, reverse leakage current
Voltage regulator diode 0.01-4.5V (1 2 3 test area) Forward voltage drop, reverse breakdown voltage
0.01-32V (K A A test area) reverse breakdown voltage
Field Effect Tube JFET Gate capacitance Cg, drain current ld at Vgs, diode forward voltage drop Uf
IGBT Drain current ld at Vgs, diode forward voltage drop Uf
MIOSTET Turn on voltage Vt,gate capacitor Cg,drain resistor Rds, diode forward voltage drop Uf
One way thyristor Turn on voltage Gate voltage
Bi directional thyristor Actuator current
Capacitance 25pF-100mF Capacitance value, loss factor Vloss
Resistor 0.010-50MO Value
Inductance 10uH-1000uH Inductance Value, DC
Battery 0. 1-4.5V Voltage value, positive and negative polarity
Input Voltage 0-40V Voltage Value
DS 18B20 0-85°C Temperature
DHT1 0-60°C/5-95% Humidity
Infrared remote control decoding protocol infrared coding Display user coding and data coding, well display the corresponding infrared waveform
generator parameters
Sine Waving 1-10KHz/0-3.3V/50%
Rectangle Waving 1-100KHz/3.3V/50%
Pulse Waving 1-100KHz/3.3V/0-100percent
Triangular Waving 1-10KHz/0-3.3V/50%
Slope 1-10KHz/0-3.3V/0-100percent
DC 0-3.3V

How to Use:
Take out the product, install it and use it.

PackageList:
1 x Oscilloscope
1 x USB Cable
3 x Test Hook Cable
1 x Ordinary Probe
1 x Instruction Manual
or
1 x Oscilloscope
1 x USB Cable
3 x Test Hook Cable
1 x Ordinary Probe
1 x Adapter

1 x P6100 High Voltage Probe

1 x Instruction Manual
