Specification
BatteriesRequired : 1
Brand : JAOCDOEN
BulletPoint1 : 2 In 1 Design: This professional oscilloscope multimeter features a 2 in 1 design, a portable tool for field debugging that integrates digital oscilloscope and multimeter functions into a single device, supporting dual mode switching between oscilloscope and multimeter.
BulletPoint2 : 2.4 Inch Color Display: This oscilloscope multimeter adopts a 2.4 inch clear color display with high resolution and large font for easy reading of data, which is suitable for a variety of measurements in complex environments.
BulletPoint3 : Multifunctional: This oscilloscope multimeter is multifunctional and can measure multiple electrical parameters or waveforms at the same time and display the electrical parameters or electrical signall waveforms. The oscilloscope mode supports high speed sample rates up to 50 Msps and an analog bandwidth of 10 MHz. One button automatic waveform catch function with three waveform scanning modes: automatic, regular and single. Automatic，manual range switching, real time data and stored data are
BulletPoint4 : Built In 10A Dual : This handheld oscilloscope multimeter has built in 10A dual with 750mAh overload guard, automatic sleep function without operation for 15 minutes, panel calibration function, memorized calibration coefficients, no need for potentiometer adjustment.
BulletPoint5 : Wide Application: This portable oscilloscope multimeter has high accuracy, high speed, high sensitivity, a variety of measurement modes, can easily cope with the measurement of various fields, widely used in the testing and debugging of electronic circuits, electronics, communicating, computer faults and repairs and other fields, etc.
Color : Multicolor
IncludedComponents : no

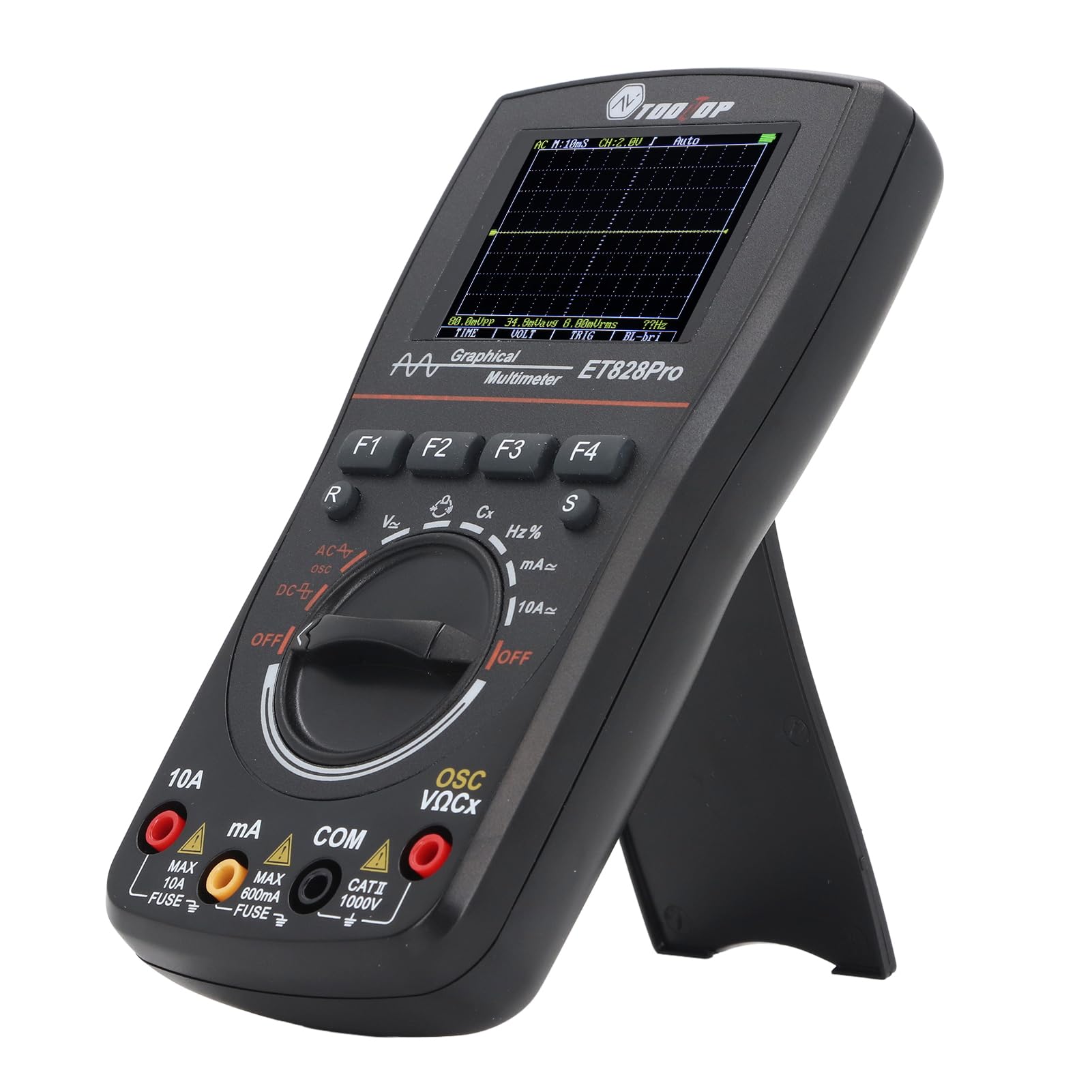

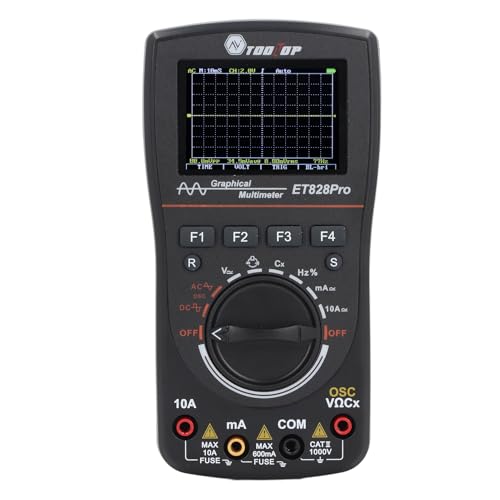

ItemName : Oscilloscope Multimeter 2 in 1 50Msps 2.4 Inch Color Display 6000 Counts 10Mhz Handheld Oscilloscope Multimeter
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 14 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : JAOCDOEN
Material : plastic
MeasurementAccuracy : see detailed description
ModelName : TRE25852-S
ModelNumber : JAOCDOEN0ke1o2habp
NumberOfItems : 1
PartNumber : JAOCDOEN0ke1o2habp
PowerSourceType : ac/dc
ProductDescription : Spec:
Item Type: Oscilloscope Multimeter
Material: PVC
Power Supply: 3 AA Batteries (Not Included)
Bandwidth: ACV, 10MHz
Maximum Real Time Sampling Rate: 50Msps
Display: 320 x 240, White Backlight
Storage: 100 Data, 10 Waveforms
Operating Environment: 0°C-+40°C, Storage Conditions: -10°C-+60°C, Channels: 1
Vertical Sensitivity Range: 500mV-200V/div
Vertical Amplitude Accuracy: ±(5%+0.2div)
Time Base Range: 200ns-10s/div
Time Base Accuracy: ±(0.01%+0.1div)
Trigger Modes: Auto, Single, Normal
Trigger Edge Selection: Rising Edge, Falling Edge
Auto Sleep: No operation within 15 minutes
Input Impedance: Approx. 5MΩ
Measurement Functions: Vp-p, Vavg, Vrms, Hz
DC Current: 60mA-10A
Resistance: 600.02-60.00MΩ
Frequency: 1Hz-20MHz
AC Current: 60mA-10A
Capacitance: 99.99nF-99.99mF
Percentage: 0.1%-99.9%
Continuity Test: Resistance < 502, Beep

How to Use:
Follow the instructions manual after taking out the oscilloscope multimeter.

packing list:
1 x Oscilloscope Multimeter
1 x Carrying Bag
2 x Test Pens
2 x Manuals
ProductSiteLaunchDate : 2024-08-01T08:52:24.463Z
Size : standard configuration
UnitCount : 1
UnspscCode : 41120000
