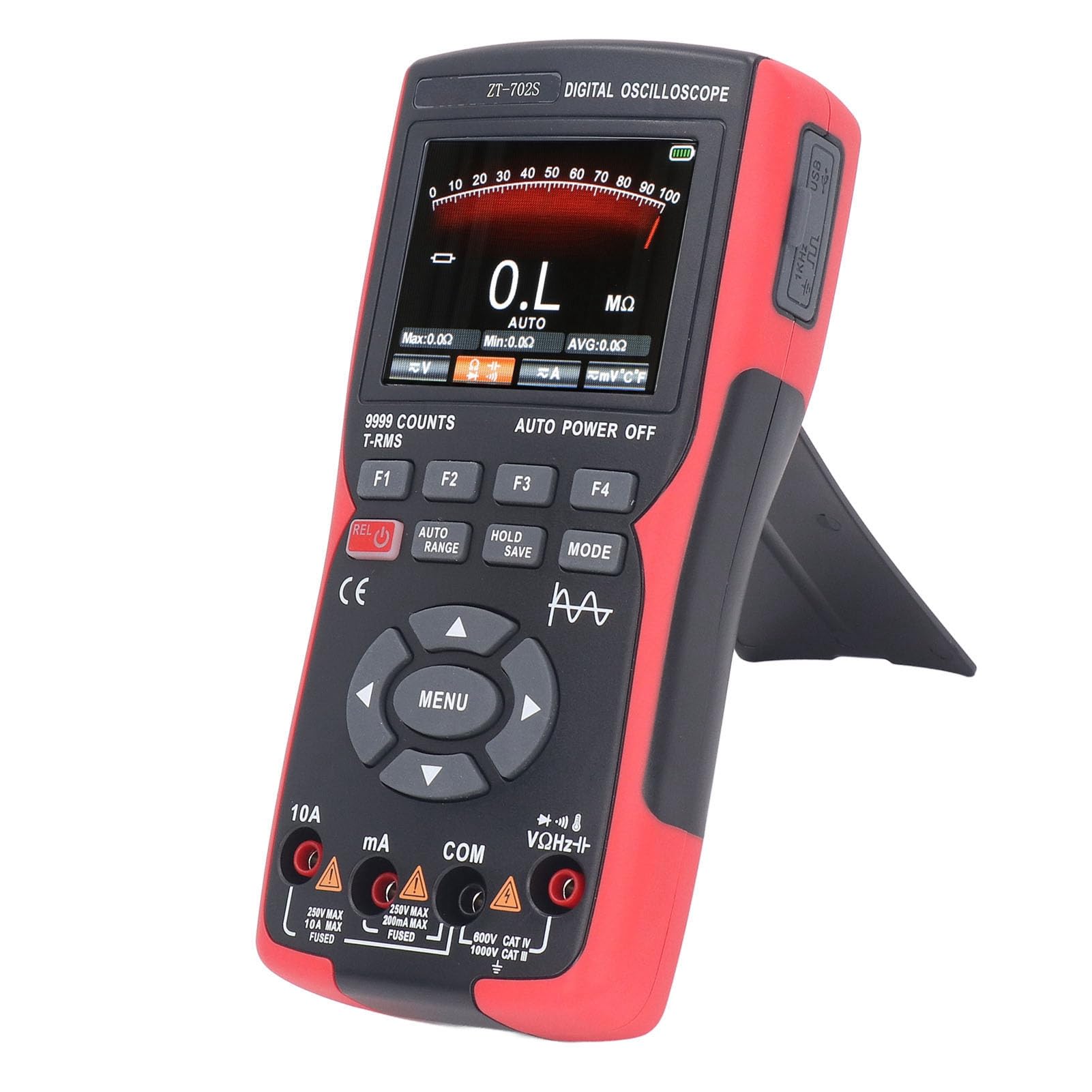

Handheld Oscilloscope Multimeter, Digital Oscilloscope Multimeter, Handheld 10MHz Bandwidth Multifunctional Tester with Color LCD, Oscilloscopes

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 16100/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Hyuduo
BulletPoint1 : [DATA SAVING AND TRANSFERRING] - Save and transfer test data conveniently.
BulletPoint2 : [MULTIPLE VALUE TESTING] - Test maximum and minimum values, capacitance, current, temperature, diode, voltage, resistance, frequency, and conductivity.
BulletPoint3 : [MULTIFUNCTIONAL DESIGN] - Color LCD voltmeter with 10MHz bandwidth, 48MSa/s sampling rate, auto calibration function, and memory function.
BulletPoint4 : [PORTABLE STORAGE BAG] - Includes an excellent storage bag for on-the- use.
BulletPoint5 : [RECHARGEABLE BATTERY] - Comes with a rechargeable battery and charging cable, eliminating the need for constant power supply worries.
ItemName : Handheld Oscilloscope Multimeter, Digital Oscilloscope Multimeter, Handheld 10MHz Bandwidth Multifunctional Tester with Color LCD, Oscilloscopes
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Hyuduo
ModelNumber : Hyuduo4qgokf1pws
NumberOfItems : 1
PartNumber : Hyuduo4qgokf1pws
ProductDescription : 1. Multiple Value Testing: This digital oscilloscope multimeter has maximum and minimum values, capacitance, current, temperature, diode, voltage, resistance, frequency, and conductivity testing.

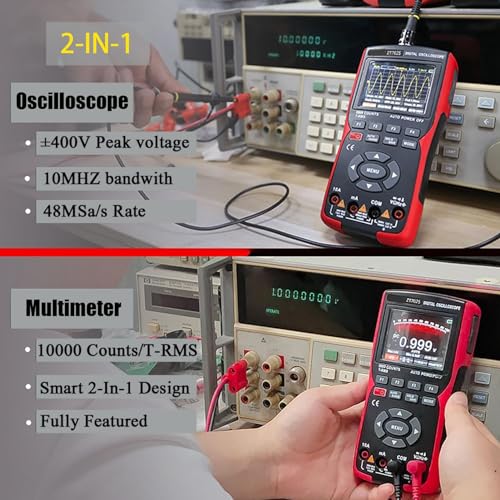

2. Multifunctional: This color LCD digital voltmeter can also be used as an oscilloscope with 10MHZ bandwidth, 48MSa/s real time sampling rate, auto calibration function, memory function and so on.
3. Data Saving And Transferring: The test data of this digital oscilloscope multimeter can be saved and transferred which is very convenient.
4. Rechargeable: This digital oscilloscope multimeter comes with rechargeable battery and charging cable, you will never worry about power supply.
5. Storage Bag: This digital oscilloscope multimeter comes with a excellent storage bag, which is for when you are going out.

Spec:
Item Type: Handheld Digital Oscilloscope Multimeter
Material: ABS, TPE
Battery: Battery x 1, Battery Capacity: 2000mAh ( Shipped With Built In Battery )
Display: 9999 Counts
Screen Size: 2.8 Inch
Frequency Band: 10MHz
Real Time Sampling Rate: 48MSa/s
Input Impedance: 1MΩ, at 16pf
Maximum Input Voltage: 150V (DC and AC )
Horizontal SEC Range: 50ns/div-20s/div
Vertical Sensitivity: 20mV/div-10V/div
DC Voltage: 9.999mV, 99.99mV, .9mV, 9.999V, 99.99V, .9V
AC Voltage: 9.999mV, 99.99mV, .9mV, 9.999V, 99.99V, 750.0V
DC Current: 9999μA, 99.99mA, .9mA, 9.999A
AC Current: 9999μA, 99.99mA, .9mA, 9.999A
Resistance: 99.99Ω, .9Ω, 9.99KΩ, 99.99KΩ, .9KΩ, 9.999MΩ, 99.99MΩ
Capacitance: 9.999nF, 99.99nF, .9nF, 9.µF, 99.99µF, .9µF, 9.999mF
Frequency: 99.99Hz, .9Hz, 9.999kHz, 99.99kHz, .9 kHz
Oscilloscope Probe Parameters:
Model: P2060
Attenuation Ratio: 1X and 10X
Frequency Band: 60MHz
Rise Time: 5.8ns
Input Resistance: 1MΩ, 10MΩ±2%
Input Capacitance: 10X: 14pF-70pF
Maximum Input Voltage: 1X: 150V RMS CAT II and 10X: 300V RMS
ProductSiteLaunchDate : 2024-03-17T23:44:10.885Z
