Specification
Brand : Hilitand
BulletPoint1 : [Large Color Screen] Handheld oscilloscope multimeter features 3.98 inch TFT screen with 480x320 DPI, providing clear data for accurate measurements.
BulletPoint2 : [Double Channel] With isolated dual channels, the oscilloscope ensures accurate detection by preventing interference between channels, making detection more accurate.
BulletPoint3 : [Dual Mode Display] Easily switch between oscilloscope and multimeter modes to improve work efficiency and versatility in various electronic projects.
BulletPoint4 : [Shock Proof Design] Equipped with silicone protective cover, silicone button, and silicone test pen, the multimeter is designed to withstand daily bumps and drops for long lasting durability.
BulletPoint5 : [Intelligent Anti Burning] Voltage current meter features intelligent overload protector, preventing the meter from burning out during measurements, ensuring reliable usage even for beginners.
Color : Multi
ExternallyAssignedProductIdentifier : 7626601796604
IncludedComponents : Fake

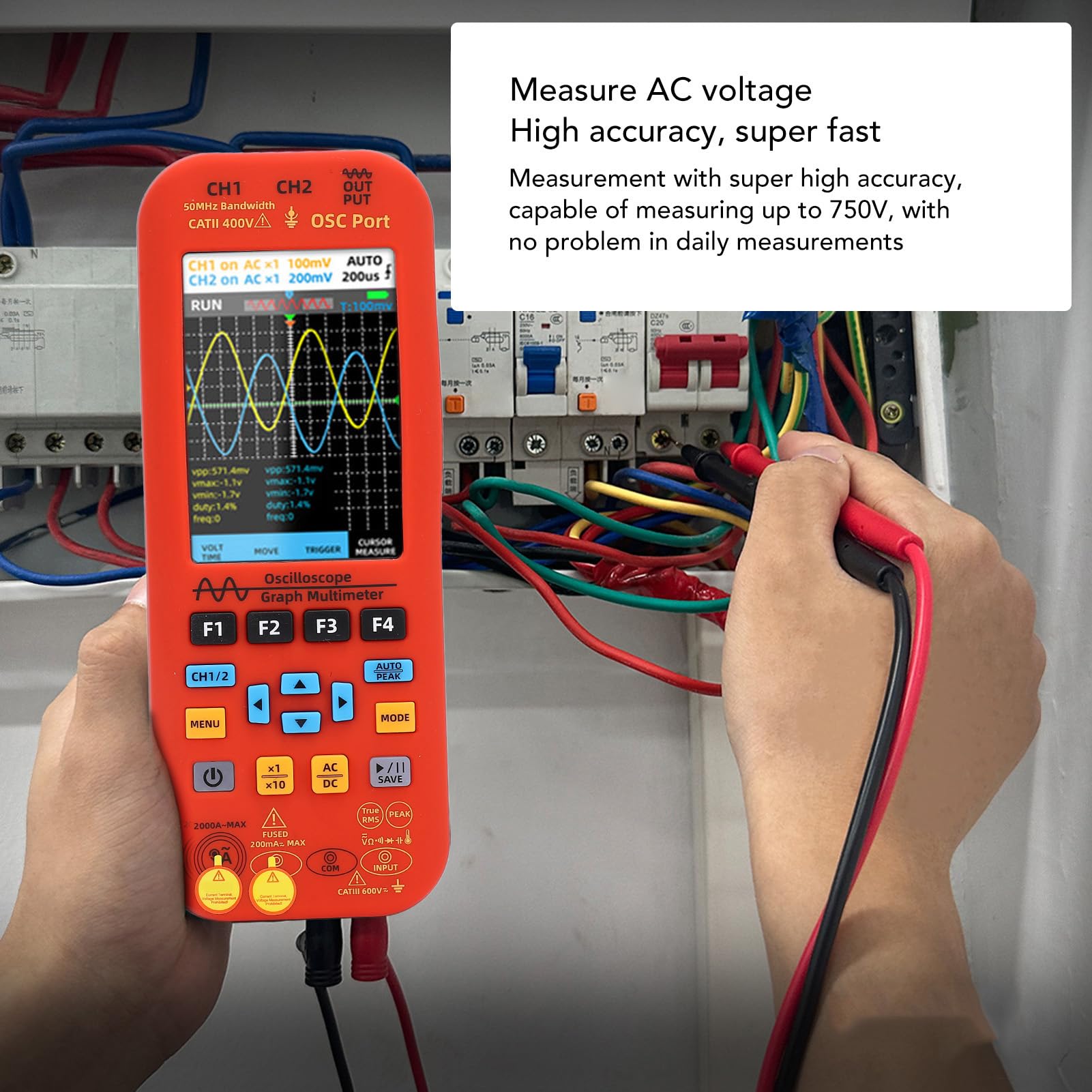

ItemName : Handheld Oscilloscope Multimeter 3.98 inch TFT Screen Double Channel Dual Mode Display Shock Proof Design Generator for Electronics
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 24 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Hilitand
MeasurementAccuracy : 0.1mm
ModelName : Hilitandrui9v4k8nd
ModelNumber : Hilitandrui9v4k8nd
NumberOfItems : 1
PartNumber : Hilitandrui9v4k8nd
PowerSourceType : AC/DC
ProductDescription : Spec:
Item Type: Oscilloscope Multimeter Generator
Material: ABS, silicone
Model: O9
Power Supply Battery: 1 x lithium ion battery 5000mAh (built in)
Multimeter Technical Specifications
Function Range Resolution Accuracy
DC Voltage (V) 2.0000V 0.0001V ±(0.8%+3)
20.000V 0.001V
200.00V 0.01V ±(0.5%+5)
1000V 0.1V
DC Voltage (mV) 20.000mV 0.001mV ±(1.0%+5)
200.00mV 0.01mV ±(1.0%+3)
AC Voltage (V) 2.0000V 0.0001V ±(1.0%+3)
20.000V 0.001V
200.00V 0.01V ±(1.2%+5)
750V 0.1V
AC Voltage (mV) 20.000mV 0.001mV ±(1.2%+5)
200.00mV 0.01mV ±(1.0%+3)
AC Voltage Frequency Response: 40Hz~1kHz
DC Current (mA) 20.00mA 0.001mA ±(1.0%+3)
200.00mA 0.01mA
AC Current (mA) 20.00mA 0.001mA ±(1.2%+5)
200.00mA 0.01mA
Flexible Current Clamp AC Current (A) 200.0A 0.1A ±(1.0%+5)
2000A 1A
The current clamp is AC 50Hz, the relationship between current and tower is 1mV 10A; The compatible current coils are 100mv at 1000A
Resistance 200.00Ω 0.1Ω ±(1.2%+5)
2.0000KΩ 0.0001kΩ ±(1.0%+3)
20.000KΩ 0.001kΩ
200.00KΩ 0.01kΩ
2.0000MΩ 0.0001MΩ ±(1.5%+5)
20.000MΩ 0.001MΩ
200.00MΩ 0.01MΩ
Capacitance .99nF 0.01nF ±(0.5%+20)
9.999uF 0.001uF ±(4.5%+5)
.99uF 0.01uF
99.999mF 0.001mF ±(5%+10)
Temperature (-20~1000)℃ 1℃ ±(2.5%+5)
(-4~1832)℉ 1℉
Diode Yes
On/Off Yes
Generator Technical Specifications
Waveform Type Sine , , triangular , half , full , sawtooth , DC
Frequency Range 0Hz~20MHz
Output Channel 1
Output Amplitude 0.1V~3.0V
Minimum Resolution 1Hz
Duty Cycle 1%-99%
Real Time Sampling Rate 250MSa/s
packing list:
1 x Oscilloscope Multimeter Generator
2 x Multimeter Probes
1 x Clip Probe
1 x Oscilloscope Probe
1 x Adapter Probe Accessories Pack
1 x Charging Cable
1 x
ProductSiteLaunchDate : 2024-07-28T17:51:14.173Z
Size : 21cmx14cmx11.5cm
UnitCount : 1
