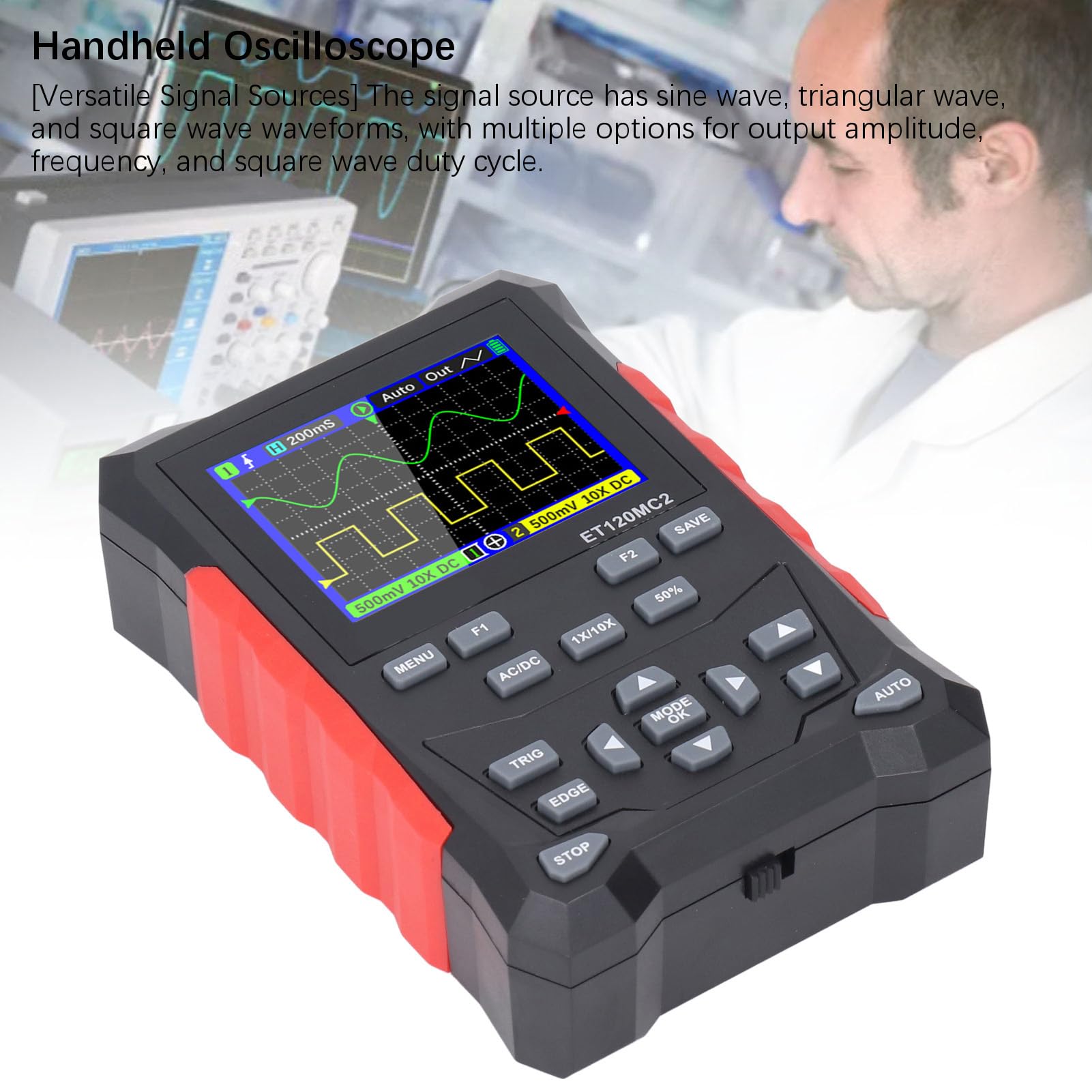

Handheld Oscilloscope, 2 Channel Oscilloscope 2500 Waveforms Oscilloscope with 2.4in TFT Display

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 19300/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Eujgoov
BulletPoint : Oscilloscope Probes
BulletPoint1 : [Longer Battery Life] The oscilloscope is equipped with 2000mAh lithium battery, which can be used continuously for about 8 hours after being full charged. Meanwhile, it is equipped with a Type C charging cable, the device can be used while charging, very convenient.
BulletPoint2 : [Versatile Sources] The source has sine, triangular, and waveforms, with multiple options for output amplitude, frequency, and duty cyc
BulletPoint3 : [Handheld Oscilloscope] With 2.4 inch TFT 320x240 color LCD screen for clear and accurate waveform display. Single channel bandwidth up to 120MHz and dual channel up to 40MHz, with a 500MSps equivalent sampling rate. Comes with two 1X to 10X probes, can measure up to 800VPP, equivalent to 280V AC, and can measure voltages as high as ±400V.
BulletPoint4 : [Professional Design] Features full triggering function (AUTO Normal Single). Suitable for periodic analog and non periodic digital . With Type C interface for data tranfer and charging and interface for directly updating firmware. Can store 2500 waveforms, with functions such as thumbnail browsing and waveform deletion.
BulletPoint5 : [Single Click AUTO] Equipped with all parameters, waveform can be automatically adapted to the screen with single click, without the need to adjust parameters. The waveform parameters such as time base, amplitude, triggering slope, etc. can be set for quick and efficient testing.
Color : One Color
ExternallyAssignedProductIdentifier : 7310411640317
ExternallyAssignedProductIdentifier1 : 7310411646197
ExternallyAssignedProductIdentifier2 : 7310411641390
IncludedComponents : No
ItemName : Handheld Oscilloscope, 2 Channel Oscilloscope 2500 Waveforms Oscilloscope with 2.4in TFT Display
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 19 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Eujgoov
MeasurementAccuracy : 0.1mm
ModelName : Jectse8e7tg2pc1d-11
ModelNumber : Eujgoovrgko6fui2e
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Eujgoovrgko6fui2e
ProductDescription : Specification:
Item Type: Handheld Oscilloscope
Material: ABS
Model: ET120MC2
Screen Size: 2.4 Inch Color Screen
Screen Resolution: 320x240
Display Technology: TFT
Waveform Bandwidth: 120MHz
Maximum Sampling Rate: 500MSa/S
Storage Depth: 12.8div
Input Impedance: 1MΩ
Vertical Sensitivity: 50mV to 100V
Time Base Range: 6nS to 50S
Triggering Mode: Auto, Normal, Single
Triggering : Rising , Falling
Number of Channels: 2
Single Click Auto: Supported
Waveform Storage: 2500 Sets of Waveforms
Waveform Manager: Supported
Frequency Accuracy: 1%
Measurement Parameters: 12 Types
Battery: 1 x 2000mAh Rechargeable Lithium Battery (Built in)
Standby Time: About 4 Hours
Backlit Brightness: 1-8 Levels
Charging Requirement: DC5V 1A 2A
Coupling Method: DC AC

How to Use:
Take out the product, install it, and then can be used.

Package List:
1 x Handheld Oscilloscope
1 x Storage Bag
1 x USB Cable
1 x Clip Cable
1 x User Manual
2 x 1X to 10X Probes
26 x Probe Accessories
