Specification
Brand : WnewTools
BulletPoint : Ruilogod X1 X10 20MHz Oscilloscope Scope Clip Probe Analyzer for Tektronix
BulletPoint1 : 1) 2 channels, both are respectively controlled by independent knobes;
BulletPoint2 : 2) 150MHZ analog channel bandwidth;
BulletPoint3 : 3) 1 GSa/s real-time sample rate;
BulletPoint4 : 4) 8M memory depth;
BulletPoint5 : 5) Vertical range 2mV/div ~ 10V/div;
Color : Multiple Colors
ExternallyAssignedProductIdentifier : 7298090752081
ExternallyAssignedProductIdentifier1 : 0769902898534
ExternallyAssignedProductIdentifier2 : 769902898534
FinishType : Finish
IncludedComponents : inc

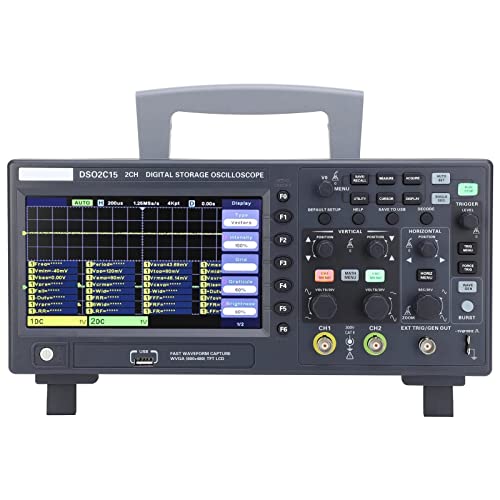

ItemName : DSO2C15 150MHz 1GSa/s Sampling Rate Dual-Channel Digital Storage Oscilloscope Digital Oscilloscope
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Wnew
Material : Material
ModelName : DSO2C15 150MHz 1GSa/s Sampling Rate Dual-Channel Digital Storage Oscilloscope Digital Oscilloscope
ModelNumber : CHU1766506
NumberOfItems : 1
PartNumber : CHU1766506
PowerSourceType : PowerSource
ProductDescription :

Feature:

6) Vertical resolution : 8bit;

7) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;

8) CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN

9) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;

10) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;

11) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;

12) 2 sets of digital voltmeter;

13) Support threshold testing, free measurements within the screen;

14) Abundant SCPI remote command control;

15) Many external interface: USB Host/Device.

Product Model(NOTE:Click on the model to reach the purchase link of the corresponding model)：

Model ChannelsBandwidthSampling RateStorage DepthSignal Source (AWG)

>>DSO2C10<<2CH100MHz1GSa/S8M/

>>DSO2C15<<2CH150MHz1GSa/S8M/

>>DSO2D10<<2CH+1CH100MHz1GSa/S8M1CH

>>DSO2D15<<2CH+1CH150MHz1GSa/S8M1CH

Specifications:

Model: DSO2C15

Channel: 2 CH

Bandwidth: 150MHz

Sample rate: 1GSa/S

Memory depth: 8M

AFG: Without

Parameters

ModelDSO2D15DSO2D10DSO2C15DSO2C10

Bandwidth150MHz100MHz150MHz100MHz

Oscilloscope channels2CH2CH2CH2CH

Waveform generator1CH1CH - -

Oscilloscope

Sample rate1GSa/s (single channel) 500MSa/s (two channels)

Acquisition

SamplingSample data

Peak-to-peak valueDisplay high frequency and random burr

AverageAverage waveform, times: 4, 8, 16, 32, 64, 128

High resolutionUp to 12bit

Input

Input couplingDC, AC, GND

Input impedance1MΩ±2% ‖20pF±3pF

Probe attenuation factor1X, 10X, 100X, 1000X

Voltage classes

ProductSiteLaunchDate : 2023-06-26T15:57:56.204Z
Size : Small
Style : Digital
UnitCount : 1
UnspscCode : 27110000
