Specification
Brand : WnewTools
BulletPoint1 : 60MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
BulletPoint2 : 1M Memory Depth.
BulletPoint3 : High Refresh Rate (2500 frames).
BulletPoint4 : Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
BulletPoint5 : One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
ExternallyAssignedProductIdentifier1 : 0769902950232
ExternallyAssignedProductIdentifier2 : 769902950232
IncludedComponents : Cable

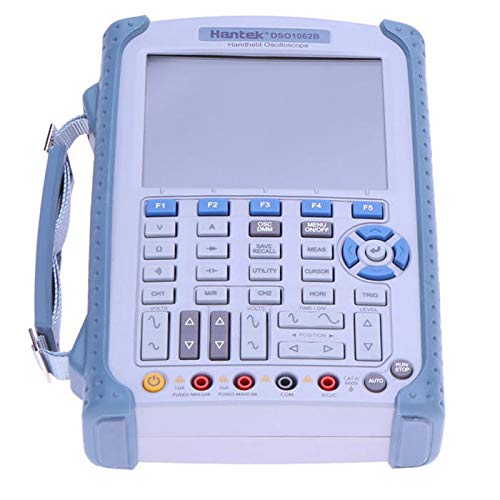

ItemName : DSO1062B 2 in 1 Handheld Oscilloscope 2 Channels 60MHZ 1GSa/s sample rate 1M Memory Depth 6000 Counts Multimter DMM with Analog Bargraph
ItemPackageDimensions_Height : 15 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Wnew
ModelName : DSO1062B Digital Handheld Oscilloscope Right angle 5.6 16-digit color LCD
ModelNumber : PANN1280031
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : PANN1280031
ProductDescription :

Specification:

Bandwidth 200MHz 100MHz 60MHz

Real-time Sample Rate 1GSa/s

Equivalent Sample Rate 25GSa/s

SEC/DIV Range 2nS/div-2000S/div (in a 2, 4, 8 sequences)

Vertical

A/D Converter 8-bit resolution

VOLTS/DIV Range 2mV/div¡«5V/div at input BNC

Position Range ±50V(5V/div), ±40V(2V/div¡«500mV/div), 2V(200mV/div¡«50mV/div)±400mV(20mV/div¡«2mV/div)

Rise Time at BNC ≤1.7ns ≤3.5ns ≤5.8ns

DC Gain Accuracy ±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div ±3% for Sample or Average acquisition mode, 5V/div to 10mV/div

Trigger

Trigger Sensitivity (Edge Trigger Type) DC: CH1/CH2(Typical) 1div from DC to 10MHz; 1.5div from 10MHz to Full EXT£¨Typical£ 200mV from DC to 40MHz EXT/5£¨Typical£ 1V from DC to 40MHz AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity

Trigger Level Range CH1, CH2: ±8 divisions from center of screen EXT: ±1.2V EXT/5: ±6V

Trigger Type

Edge Trigger on the rising or falling edge

Pulse Width Trigger (when >,<,=,≠) on positive or negative pulses Pulse Width Range: 20ns-10s

Video Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)

Slope Trigger (when >,<,=,≠) on a positive or negative slope Set Time: 20ns–10s

Size 245 x 163 x 52 (mm)

Package Included:

1 x DSO1062B Digital Handheld Oscilloscope

2 x Oscilloscope Probe

1 x Test Probe

1 x USB Cable

1 x CD and Manual

1 x Wall charger with EU,US, Standard Plug

1 x Package bag

ProductSiteLaunchDate : 2023-11-21T16:07:19.963Z
UnitCount : 1
UnspscCode : 43210000
