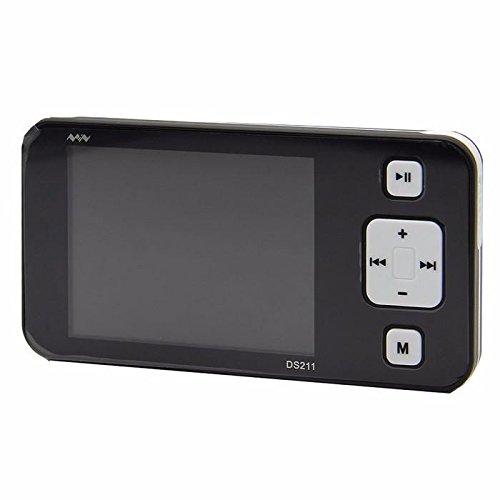

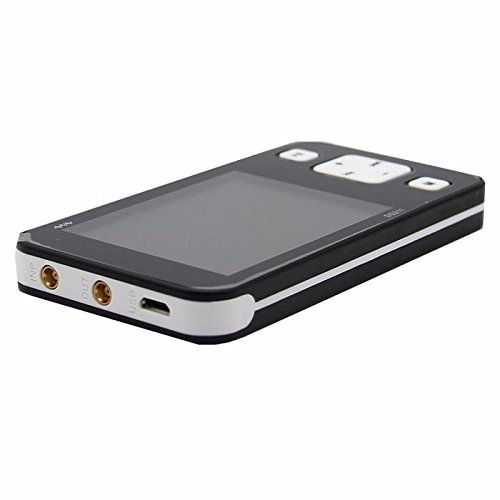

ItemName : DS211 ARM Nano Pocket Portable Digital Oscilloscope
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Wnew
ModelName : DS0211 Digital Oscilloscope
ModelNumber : ATOOL977755
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL977755
PowerSourceType : hand_powered
ProductDescription :

Description:

DS211 is the update version of DS201.

It is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements.

Features :

DSO mini oscilloscope.

Rising/falling edge trigger.

Compact rectangular housing.

Large display screen.

Buttons on the side.

Mini pocket sized.

Compact and lightweight.

Store file as BMP, DAT, BUF, or CSV format.

Use build-in flash disk to save/read waveform image.

Math waveforms: DATA, -DATA, Inp+D, Inp-D, -Inp.

Output test signal: 10Hz-1MHz (1-2-5 step).

Synchronous mode: auto, normal, single, none, scan.

Auto measurement: frequency/duty cycle, DC RMS voltage/Vpp /Vmax/Vmin.

Specification :

Parameters of Mini DSO DS211

Model DS211

MCU STM32F103VC

ADC MCU internal ADC

Channels 1 Analog channel+1 Operation channel

Analog Bandwidth 200KHz

Max Sample Rate 1MSa/s

Max Sample Memory Depth 8K

Horizontal sensitivity 1uS/Div~2S/Div(1-2-5 step)

Vertical Sensitivity 20mv/Div~10V/Div(1-2-5 step)

Analog Input Impedance >500kΩ

Coupling DC/AC

Synchronous Mode Ascend/Descend Edge Trigger Mode

AUTO_FIT AUTO_FIT

Math Waveforms -A, RecA, A+ RecA

Inbuilt Signal Generator Sine/Square/Triangle/Sawtooth wave

Synchronous Mode Auto, Normal, Single, Scan

Auto Measurement Signal /cycle/duty ratio, peak voltage/virtual value/max value/min value/average

Storage 8MB USB flash disk memory

APP installed 1

Operation Button

USB port MicroUSB

Battery 500mAh

Screen Size 2.8‘’

Screen Resolution 320 x 240

Dimension 106.5mm x 55.7mm x 11.5mm

Weight(with Battery): 65g

Open Source Application layer Open-Source

Certifications CE/FCC

Application:

Outdoor Maintenance(AC/DC Power and Inverters, floor fire equippment and circuit-control).

Hardware maintenance and software debugging RS232/RS485/I2C/CAN and so on circuit, LED display and scanning driver circuit via keyboard

Audio device and circuit, elecrtic toys and remote models, car circuit maintenance.

School tutoring and DIY electronic-development.

Somewhere needs to observe the slow signal changes (eg. Relay module and inch-switch, battery charge and discharge curve, temperature sensor measure and so on.)

Power for related circuit.

Package Included:

1 x DS0211 Digital Oscilloscope

1 x MCX Probe

1 x USB Cable

1 x User manual
