Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : BSIDE

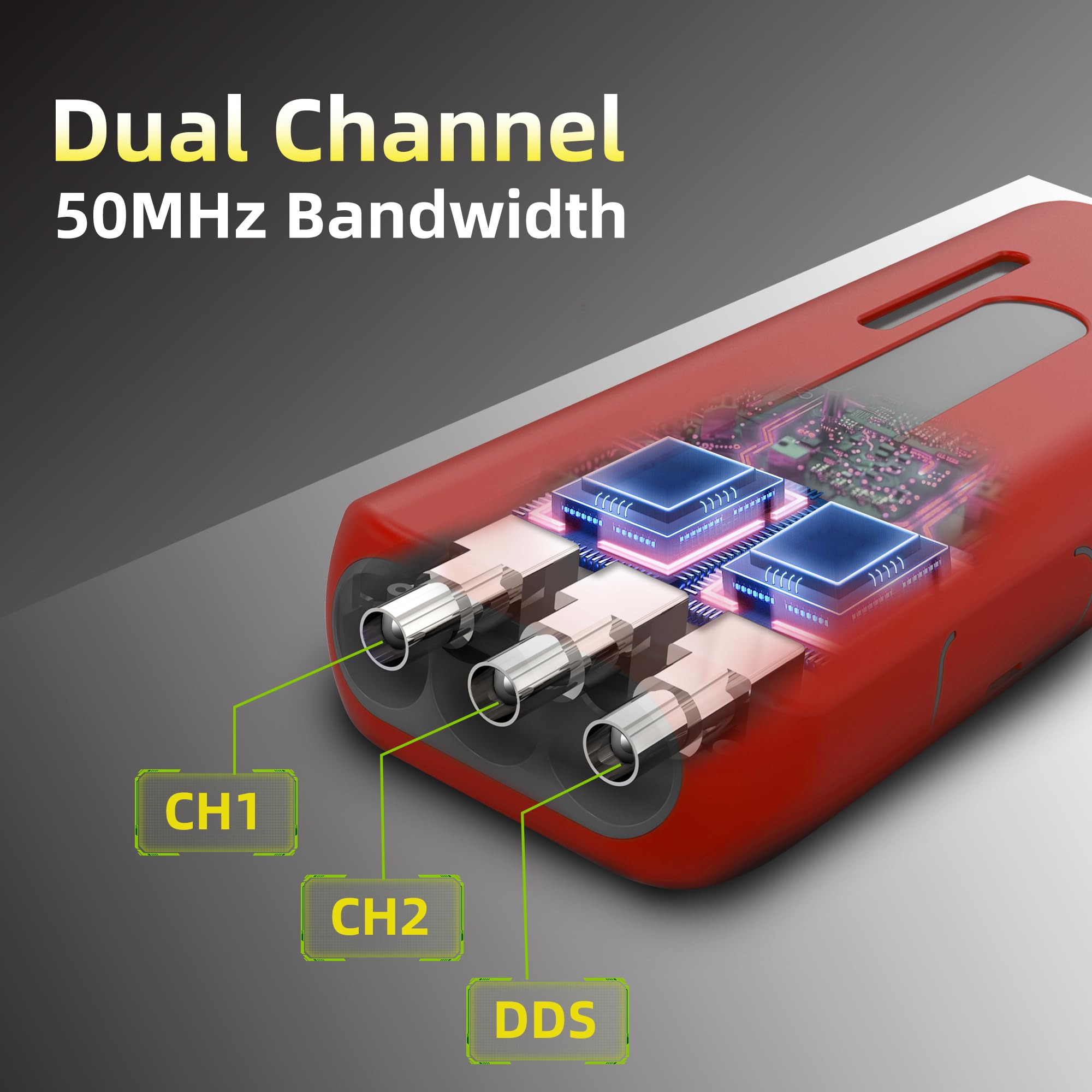

BulletPoint1 : [Dual Channel 50MHz Bandwidth]: Dual channel oscilloscope multimeter features 50MHz bandwidth, 250MSa/s sampling rate, 128kb record depth, etc.
BulletPoint2 : [3.98" TFT Display]: Automotive oscilloscope multimeter features ultra-large 3.98 inch color screen, which greatly enhance your reading experience, you can get the measurement very easy, even in bright sunlight or poor light.
BulletPoint3 : [Full-Viewing LCD]: Handheld oscilloscope multimeter equipped with ultra-wide angle 480*320 screen, which provides you with best reading enjoyment, you could get the clear test results at any angle.
BulletPoint4 : [Flexible AC Current Clamp Measurement]: Digital multimeter tester measures flexible ac current clamp accurately up to 2000A. The flexible clamp wire were not included.
BulletPoint5 : [5000mAh Rechargeable Battery]: BSIDE O9 multimeter tester comes with rechargeable 5000mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
BulletPoint6 : [Soft Silicone Protective Case]: Automotive oscilloscope multimeter equipped with full-body soft silicone case that provides a comfortable feel and protection against shocks, friction & bumps.
Color : WHITE
ExternallyAssignedProductIdentifier : 6933540317489
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryInEquipment
Hazmat11 : DE_SmallLithiumIonBatteryInEquipment
Hazmat12 : EG_SmallLithiumIonBatteryInEquipment
Hazmat13 : ES_SmallLithiumIonBatteryInEquipment
Hazmat14 : FR_SmallLithiumIonBatteryInEquipment
Hazmat15 : GB_SmallLithiumIonBatteryInEquipment
Hazmat16 : IE_SmallLithiumIonBatteryInEquipment
Hazmat17 : IN_SmallLithiumIonBatteryInEquipment
Hazmat18 : IT_SmallLithiumIonBatteryInEquipment
Hazmat19 : JP_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : MX_SmallLithiumIonBatteryInEquipment
Hazmat21 : NL_SmallLithiumIonBatteryInEquipment
Hazmat22 : PL_SmallLithiumIonBatteryInEquipment
Hazmat23 : SA_SmallLithiumIonBatteryInEquipment
Hazmat24 : SE_SmallLithiumIonBatteryInEquipment
Hazmat25 : SG_SmallLithiumIonBatteryInEquipment
Hazmat26 : TR_SmallLithiumIonBatteryInEquipment
Hazmat27 : US_SmallLithiumIonBatteryInEquipment
Hazmat28 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryInEquipment
Hazmat6 : AU_SmallLithiumIonBatteryInEquipment
Hazmat7 : BE_SmallLithiumIonBatteryInEquipment
Hazmat8 : BR_SmallLithiumIonBatteryInEquipment
Hazmat9 : CA_SmallLithiumIonBatteryInEquipment
IncludedComponents : Smart Digital Multimeter

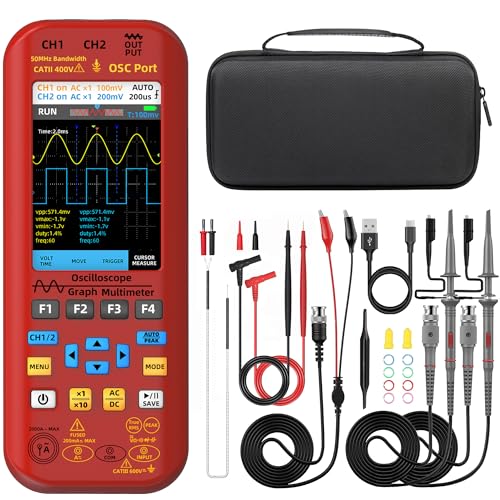

ItemName : BSIDE Dual Channel Oscilloscope Multimeter, 50MHz Bandwidth 3.98" Full-Viewing TFT LCD DDS Generator, Measure Flexible AC Current Clamp Temp Capacitance Diode Voltage with 5000mAh Rechargeable Battery
ItemPackageDimensions_Height : 73 millimeters
ItemPackageDimensions_Length : 240 millimeters
ItemPackageDimensions_Width : 128 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : BSIDE
MeasurementAccuracy : NO
ModelNumber : O9 2 Channel Oscilloscope
NumberOfItems : 1
NumberOfLithiumIonCells : 1
PartNumber : O9 Dual Channel Oscilloscope Multimeter
PowerSourceType : Battery Powered
ProductDescription : Features: Dual channel with 50MHz bandwidth 3.98 inch TFT color display voltmeter Rechargeable graph scope tester Handheld smart digital multimeter tester Measures ac and dc current, capacitance and diode Measures ac and dc voltage, resistance, a-alert and continuity Measures flexible ac current clamp, temperature and live wire check Tested data can be saved and exported to your computer, PC Rechargeable intelligent digital voltmeter with low battery indication Specifications: MAX Display: 20000 counts Bandwidth: 50MHz Channel: 2 Real-time sample rate: 250MSa/s Input Impedance: 1MΩ,@16pf Maximum input voltage: 300V (DC+AC peak) Horizontal SEC range: 100ns/div -20s/div Vertical sensitivity: 20mV/div -100V/div DC voltage: 20mV 0.001mV (1%+5); 200mV/2V/20V 0.01mV/0.0001V/0.001V/ (0.8%+3); 200V/1000V 0.01V/0.1V (1%+5) AC voltage: 20mV 0.001mV (1.2%+5); 200mV/2V/20V 0.01mV/0.0001V/0.001V/ (1%+3); 200V/7500V 0.01V/0.1V (1.2%+5) DC current: 20mA/200mA 0.001mA/0.01mA (1%+3) AC current: 20mA/200mA 0.001mA/0.01mA (1.2%+5) Flexible AC Current: 200A/2000A 0.1A/1A (1.0%+5) Resistance: 200Ω 0.01Ω (1.2%+5); 2kΩ/20KΩ/200KΩ 0.001KΩ/0.01KΩ/0.1KΩ (1.0%+3); 2MΩ 0.0001MΩ (1.2%+5); 20MΩ/200MΩ 0.001MΩ/0.01MΩ (1.5%+5) Capacitance: 999.99nF 0.01nF (5.0%+20); 9.999µF/999.9µF 0.001µF/0.01µF (4.5%+5); 99.999mF 0.001mF (5%+10) Temperature: -20℃1000℃/-4℉-1832℉ 1℃/1℉ (2.5%+5) Diode: Yes Continuity: Yes Output Waveforms: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, dc wave Frequency range: 0-2MHz Output Amplitude: 0.1-3V Square Wave Duty Cycle: 1%-99% Power: 2*Rechargeable Li-ion battery Size: 216.6 x 84.5 x 36 mm Weight: 384g Package Includes: 1 x Handheld Oscilloscope Multimeter 2 x Oscilloscope Probe 1 x BNC to Double-Headed Alligator Clip Test Leads 1 x Test Leads 1 x Thermocouple 1 x Carrying Case 1 x Charging Cable 8 x Marker Rings 1 x Adjustment Tool 2 x IC Test Protection Caps 1 x User Manual Note: The flexible ac current clamp are not included in the package
ProductSiteLaunchDate : 2024-07-02T03:25:14.183Z
Style : NO
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
