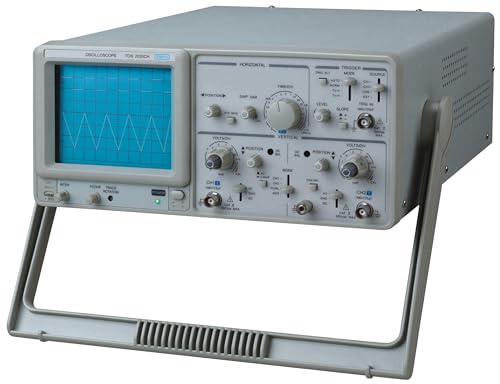

20MHz Dual Channel Analog Oscilloscope, 10 Times Sweep Magnification, X-Y Mode - EX ELECTRONIX EXPRESS

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 116600/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : EX ELECTRONIX EXPRESS
BulletPoint1 : Dual channel, 20MHz Analog Oscilloscope
BulletPoint2 : 10 times sweep magnification
BulletPoint3 : TV synchronization; X-Y mode
BulletPoint4 : High illumination internal graticule CRT
BulletPoint5 : Encoded switch, reliable and durable
BulletPoint6 : Fully sealed durable attenuation switch
BulletPoint7 : ALT triggering function, enabling simultaneous observation of two independent signals
ExternallyAssignedProductIdentifier : 8464664508456
ExternallyAssignedProductIdentifier1 : 0679771869682
ExternallyAssignedProductIdentifier2 : 679771869682
IncludedComponents : Oscilloscope, two probes, power cord, operation manual
ItemName : 20MHz Dual Channel Analog Oscilloscope, 10 Times Sweep Magnification, X-Y Mode - EX ELECTRONIX EXPRESS
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 6 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : EX ELECTRONIX EXPRESS
ModelNumber : Hilitand9mo4zit0x2
NumberOfItems : 1
PartNumber : 01OSC2020CH
ProductDescription :

Features:

  • Dual channel, 20MHz Analog Oscilloscope
  • 10 times sweep magnification
  • TV synchronization; X-Y mode
  • High illumination internal graticule CRT
  • Encoded switch, reliable and durable
  • Fully sealed durable attenuation switch
  • ALT triggering function, enabling simultaneous observation of two independent signals

Specifications:

  • Vertical system:
    • Sensitivity: 5mV~5V/DIV, 10 steps in 1-2-5 sequence
    • Accuracy: ≤3%
    • Vernier sensitivity: ≤1/2.5 of panel indicated value
    • Bandwidth: DC (AC 10Hz)~20MHz
    • AC coupling: <10Hz (at 100kHz, 8DIV, frequency response -3dB)
    • Rise time Approx.: 17.5ns Approx.
    • Input impedance Approx. 1MΩ//Approx. 25pF
    • DC balance shift: 5mV~5V/DIV: ±0.5DIV
    • Vertical mode: CH1, CH2, DUAL (ALT/CHOP), ADD, CH2 INV
    • Chopping repetition frequency: Approx. 250kHz
    • Input coupling: AC, GND, DC Max. Input voltage 400V peak-peak, AC frequency≤1kHz Common mode rejection ratio: >50:1 at 50kHz sine wave (set CH1 and CH2 at same sensitivity)
  • Horizontal system:
    • Sweep time: 0.2us~0.5s/DIV, 20 steps in 1-2-5 sequence
    • Accuracy: ±3%, X10MAG: ±5% (20ns~50ns/DIV uncalibrated)
    • Vernier sweep time control: ≤1/2.5 of panel indicated value
    • Sweep magnification: X10 (fastest sweep time 20ns/DIV)
    • Position shift@X10MAG: ≤2DIV at CRT screen center
    • Linearity: ±5%, X10MAG: ±10% (0.2s~1us)
  • General:
    • Power source: AC110V/220V±10%, 50/60Hz, Max.35VA
    • Accessories: Power cord x1, Operation manual x1, Probe x2
    • Dimension (W x H x D): 310 x 150 x 455mm
    • Weight: Approx. 8kg (17.6 lbs)

ProductSiteLaunchDate : 2024-03-20T17:18:19.317Z
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
