Specification
Brand : WnewTools
BulletPoint1 : Capture output signal function, which can store up to 1000 capture signals.
BulletPoint2 : Built in DDS signal generator, support 12 kinds of function signal.
BulletPoint3 : Targeted high intelligent decoding algorithm, the encoderlife is infinite, and intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage.
BulletPoint4 : With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rateuff081X = 5MHz, 10X = 100MHz).
BulletPoint5 : Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
ExternallyAssignedProductIdentifier1 : 0769902982905
ExternallyAssignedProductIdentifier2 : 769902982905
IncludedComponents : No

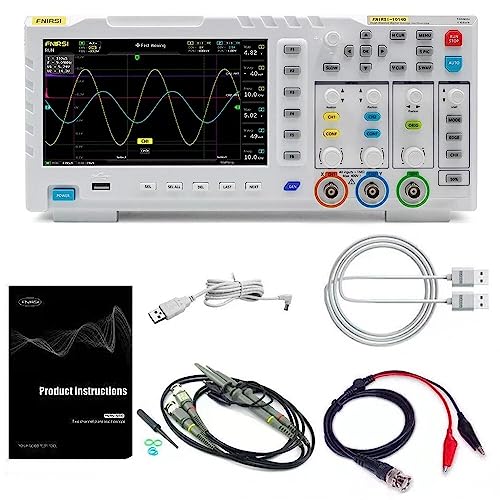

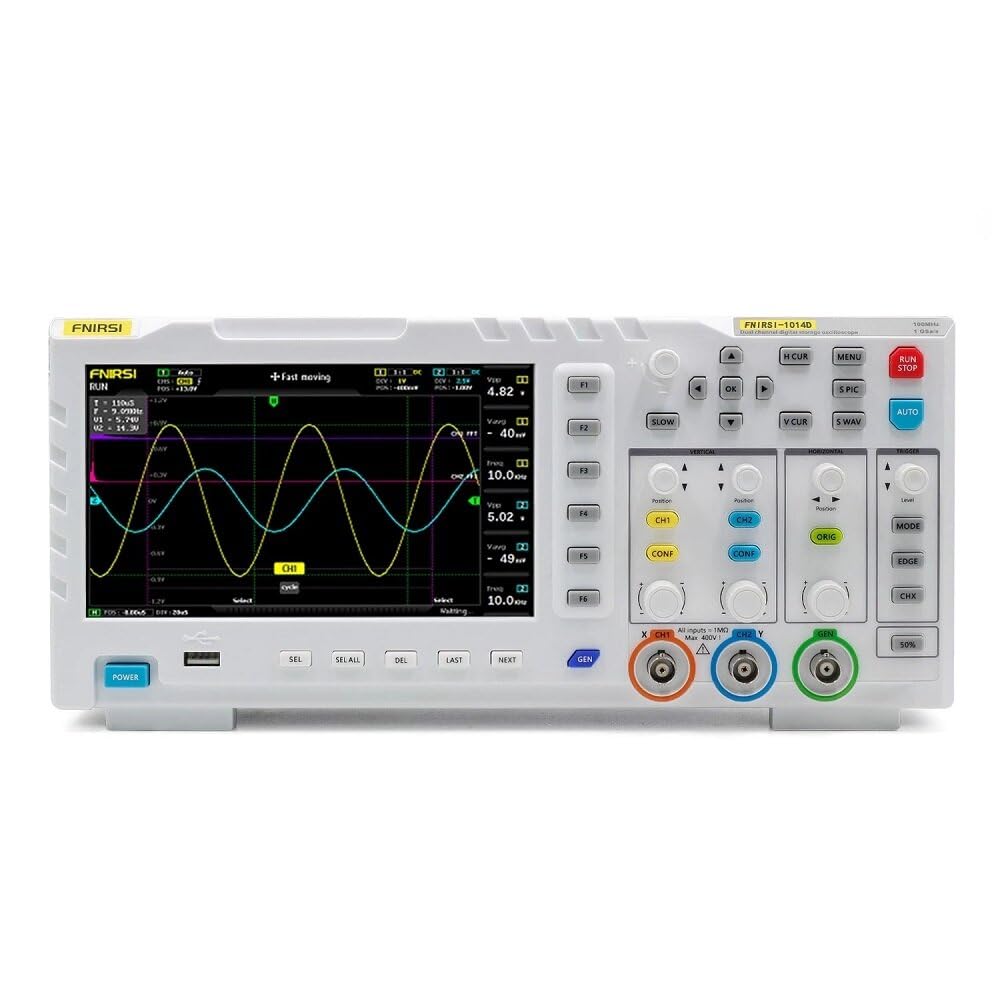

ItemName : -1014D 7 Inch TFT LCD Display Screen 2 In 1 Dual Channel Input Storage Oscilloscope Digital Signal Generator
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Wnew
ModelName : Oscilloscope Host
ModelNumber : ATOOL1864812
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL1864812
PowerSourceType : hand_powered
ProductDescription :

Features:

Targeted high intelligent decoding algorithm, the encoderlife is infinite, and intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage.

With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate（1X = 5MHz, 10X = 100MHz).

Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.

High measurement voltage range: 1X can measure 0~40 V, 10X can measure 0~400V.

Up to 12 parameters measurement：VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period.

Complete triggering function (single, normal, automatic), and at any time, the waveform display (STOP function) is frozen.

Equipped with high efficiency One-button AUTO, and one-button waveform storage and screenshot function.

Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.

Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

Equipped with a USB interface, which can be connected to a com-puter to share its screenshots with the com-puter, which is convenient for secondary analysis.

Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.

FFT display function, can analyze the spectral characteristics of the signal, memory compression technology, waveform refresh screen does not flicker.

With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry.

Specifications:

Material: ABS

Ana-log band width: 100MHz * 2

Number of channels: 2 channels

Maximum real time sampling rate: 1GSa/s

Vertical sensitivity: 50 mV/div ~ 500 V/div

Horizontal time base range: 50S/div ~ 10nS

ProductSiteLaunchDate : 2024-10-20T13:55:28.842Z
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 53000000
