Specification
Brand : Estink
BulletPoint1 : [Low Power Consumption] The probe kit has an input impedance of 1mω:10mω, offering energy-saving advantages while maintaining convenience in testing applications.
BulletPoint2 : [Fully Shielded Bnc Connector] With a welded bnc connector, this probe minimizes interference and ensures a secure connect for precise testing.
BulletPoint3 : [Universal 10:1 and 1:1 Switchable Bandwidth] This oscilloscope probe offers a bandwidth of 50mhz, suitable for scopes up to 500mhz, providing versatile testing options.
BulletPoint4 : [Interchangeable Probe Tip] The probe features high sensitivity and excellent functionality, allowing for confident usage in various testing scenarios.
BulletPoint5 : [Premium Material] Made with superior abs material, this passive oscilloscope probe is to impact and scratches, promoting environmental friendliness.
Color : One Color
ExternallyAssignedProductIdentifier : 7320518725947

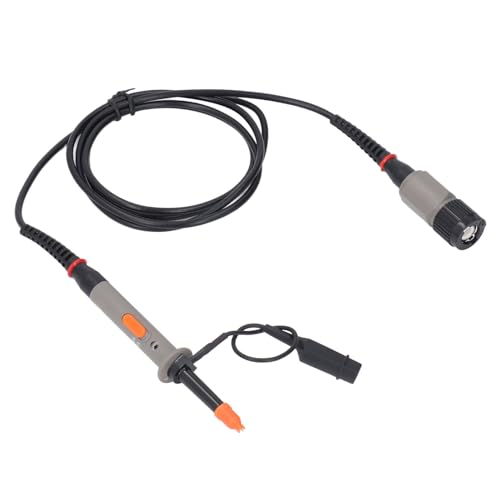

ItemName : Universal Oscilloscope Probe Kit, 500MHz Oscilloscope Clip Probes 200MHz Fully Insulated BNC End Probe with BNC, Minigrabber Test Leads
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : oscilloscope-probes
Manufacturer : Estink
MeasurementAccuracy : 1
ModelName : Marhynchus5xe407gnpm
ModelNumber : Estinkaq2p6dfbs3
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Estinkaq2p6dfbs3
ProductDescription : Spec:
Item Type: Oscilloscope Probe
Material: ABS
Attenuation: 1:10
Input Impedance: 1MΩ:10MΩ
Frequency: 500MHz or 10MHz
Input Capacitance: 1X: 45pF-65pF, 10X: 8.5pF-18.5pF
Compensation Range: 5pF-30pF
System Bandwidth: 1X: DC-10MHz, 10X: DC-500MHz
Maximum Working Voltage Input: 1X:

How to Use:
Before any measurements are taken using a probe, its compensation should first be checked and adjusted to match that of the channel input. Most oscilloscopes have a square Waving reference available on the front panel specifically for the purpose of probe compensation. Connect the probe to the source to display a 1 KHz test on the oscilloscope. Set the probe to the 10X position.

packing list:
1 x Oscilloscope Probe
4 x Identification Ring
2 x Insulation Cap
1 x Spring Needle
ProductSiteLaunchDate : 2024-12-10T17:17:15.618Z
Size : One Size
UnitCount : 1
UnspscCode : 41113700
