Specification
Brand : JAOCDOEN
BulletPoint1 : BANDWIDTH INFORMANCE: Universal oscilloscope probe 10:1 and 1:1 switchable bandwidth is 50MHz, usable with scopes having bandwidth up to 500MHz
BulletPoint2 : INTERCHANGEABLE TIP: Adopt interchangeable probe tip, possess high sensitivity, excellent performance and reliable function, you can use with confidence
BulletPoint3 : INTERFERENCE RESISTANT: Oscilloscope probe come with fully shielded welded BNC connector, possess small signal interference; Copper plated gold pin for good test versatility and capability
BulletPoint4 : TECHNICAL PARAMETERS: Oscilloscope probe kit input impedance is 1MΩ:10MΩ, possess Low power consumption and energy saving, provide great convenience for your work
BulletPoint5 : STRONG MATERIAL：Passive oscilloscope probe has high impedance, adopt excellent ABS material, possess impact resistance, scratch resistance, environmentally friendly
IncludedComponents : No

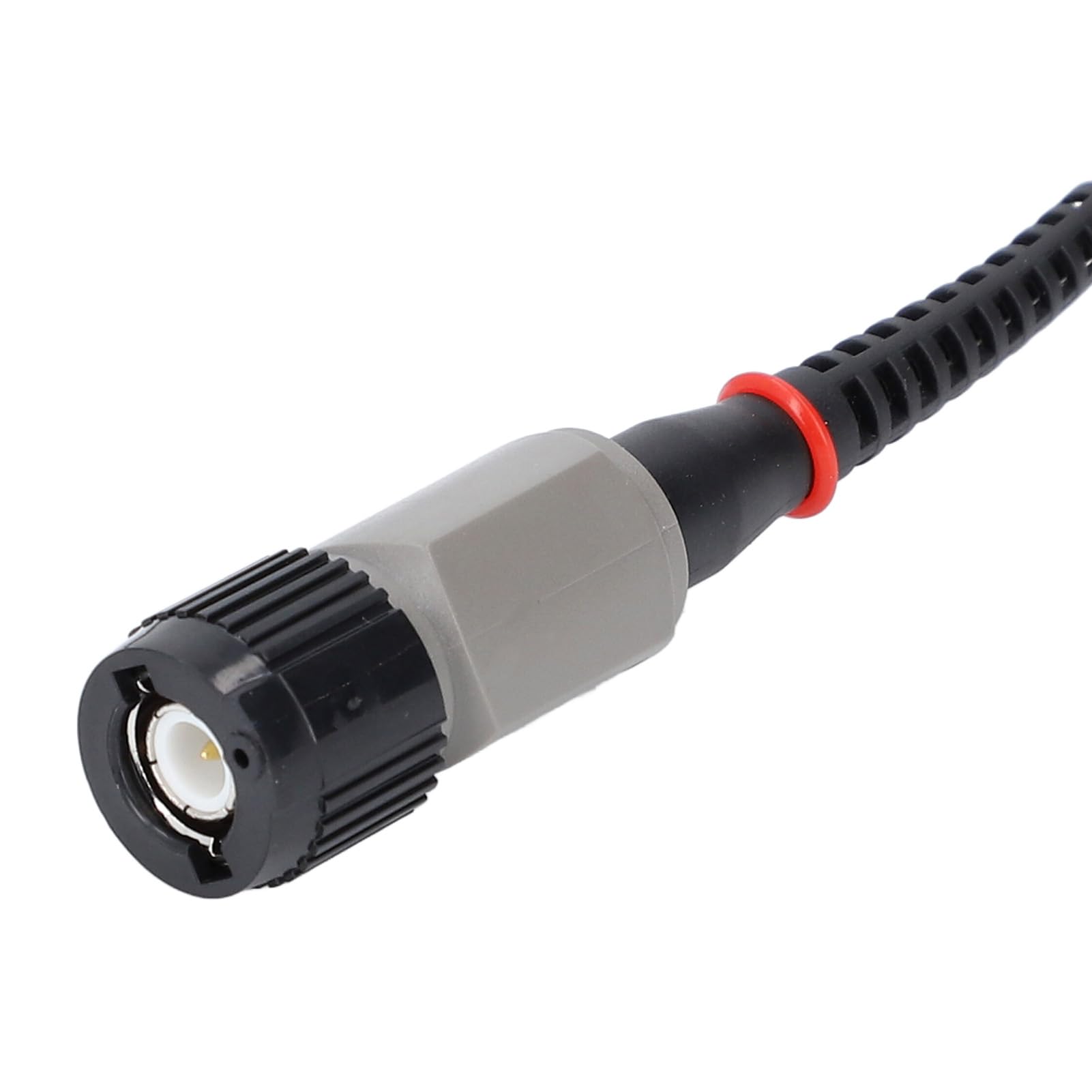

ItemName : Oscilloscope Probe 500mhz Passive High Impedance Universal Kit Interchangeable High Sensitivity with BNC Connector T6500
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 21 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemTypeKeyword : oscilloscope-probes
Manufacturer : JAOCDOEN
MeasurementAccuracy : 0.1mm
ModelName : Eujgoova1khg89dsn
ModelNumber : JAOCDOENph2rqgtioa
NumberOfItems : 1
PartNumber : JAOCDOENph2rqgtioa
ProductDescription : Spec:
Item Type: Oscilloscope Probe
Material: ABS
Attenuation: 1:10
Input Impedance: 1MΩ:10MΩ
Frequency: 500MHz or 10MHz
Input Capacitance: 1X: 45pF-65pF, 10X: 8.5pF-18.5pF
Compensation Range: 5pF-30pF
System Bandwidth: 1X: DC-10MHz, 10X: DC-500MHz

How to Use:
Before any measurements are taken using a probe, its compensation should first be checked and adjusted to match that of the channel input. Most oscilloscopes have a square reference signal available on the front panel specifically for the purpose of probe compensation. Connect the probe to the signal source to display a 1 KHz test signal on the oscilloscope. Set the probe to the 10X position.

Package List:
1 x Oscilloscope Probe
4 x Identification Ring
2 x Insulation Cap
1 x Spring Needle
ProductSiteLaunchDate : 2024-08-07T06:29:24.142Z
