Specification
AgeRangeDescription : adult
Brand : Dntum
BulletPoint : 10PCS Crystal Oscillator Crystal Resonator 4MHz 4M 4.000MHz 4.000M 4.000 49S HC-49S DIP-2 Passive crystal Quartz
BulletPoint1 : 25MHz internal crystal oscillator without external devices
BulletPoint2 : Programmable group blur (dim) / flashing mixed with independent LED brightness.
BulletPoint3 : 16 LED drivers with programmable LED brightness, each output programmable: On/Off.
BulletPoint4 : Each LED output achieves 4096-level (12-bit) linear programmable brightness from fully off (default) to maximum brightness.
BulletPoint5 : The output state can be programmed to change when responding or stopping a command to achieve simultaneous update of all outputs or byte-by-byte update output (default is "stop command change").
Color : 4.000mhz
ExternallyAssignedProductIdentifier : 7071545109179

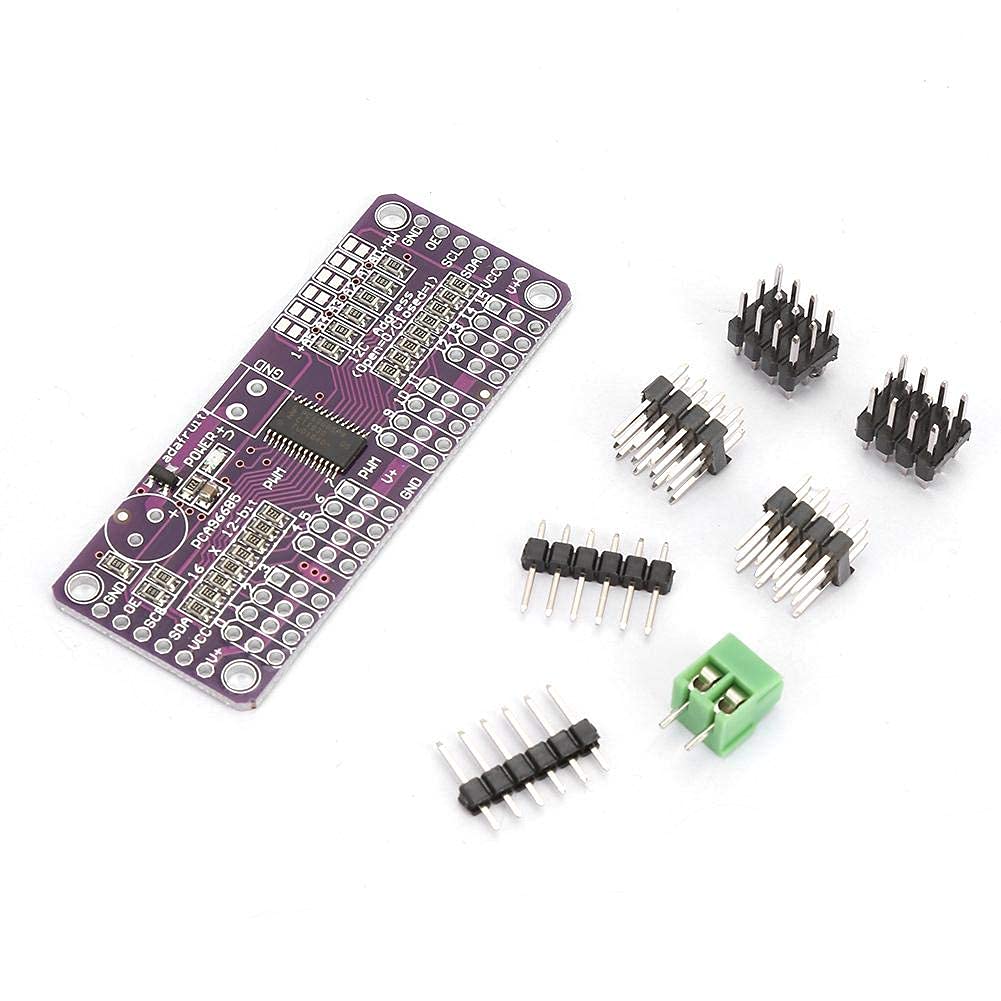

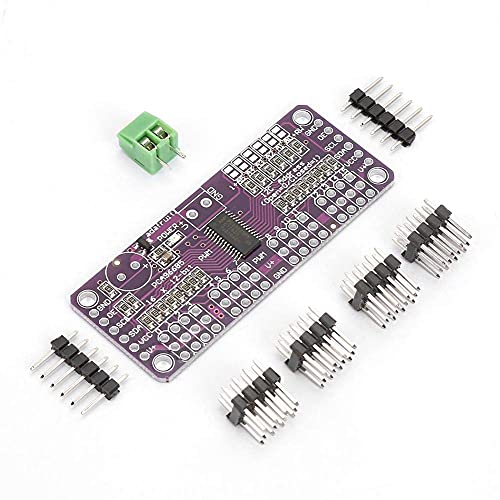

ItemName : Servo Driver for, I2C Interface 16 Channel Servo Driver, 25MHz Internal Crystal Oscillator Durable for School Home Experiment
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : oscillators
Manufacturer : Dntum
Material : Copper
MetalType : other
ModelName : QHMGYLAE
ModelNumber : QHMGYLAE
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : SYMXZJ0073522
ProductDescription : Feature:
16 LED drivers with programmable LED brightness, each output programmable: On/Off. Programmable group blur (dim) / flashing mixed with independent LED brightness. The 1MHz Fast Mode Plus is compatible with the I2C bus interface with 30mA high drive capability on SDA to drive high capacitive buses. The output state can be programmed to change when responding or stopping a command to achieve simultaneous update of all outputs or byte-by-byte update output (default is stop command change). Each LED output achieves 4096-level (12-bit) linear programmable brightness from fully off (default) to maximum brightness. Low effective output enable input pin, when the pin is high, the LED output can be programmed to 0, 1 or high impedance (power-on default is high impedance). The LED output frequency (all LEDs) is typically 40Hz to 1000Hz (when the oscillator is 25MHz, the default value of the prescaler register is 1EH and will generate a 200Hz refresh rate). Software programmable for open-drain LED output selection (default push-pull) of 16 push-pull outputs (25mA sink current and 5mA pull current at 5V), no input function. Six hardware address pins allow 62 PCA9685 devices to be connected to the same I2C bus. Maximum external input clock of 50MHz is allowed. Internal power-on reset. There is a noise filter at the SDA/SCL input. There is no glitch output when powering up. 25MHz internal crystal oscillator without external devices
Specification:
Operating voltage range: 2.3V-5.5V (can withstand 5.5V input)
Working temperature: -40 - 85 °C
ESD protection: over 2000V HBM/JESD22-A114,
ProductSiteLaunchDate : 2024-05-20T07:54:34.518Z
Size : One Size
UnitCount : 1
UnspscCode : 26111500
