Specification
Brand : TOSYUWIR
BulletPoint : Inductors
BulletPoint1 : GPS plus BDS means GPS+BDS
BulletPoint2 : Output 10MHz accuracy sine wave or square wave, low noise. Output 1pps second pulse, sync with UTC.
BulletPoint3 : High-sensitive GPS receives，and the small sky can lock.
BulletPoint4 : With lock inductor, red led off, equipment lock.
BulletPoint5 : Power is 12V/1.5A. Simple, easy, and can use switch power. Inexpensive, small volume used conveniently.
Color : One Color
ExternallyAssignedProductIdentifier : 7375607697551

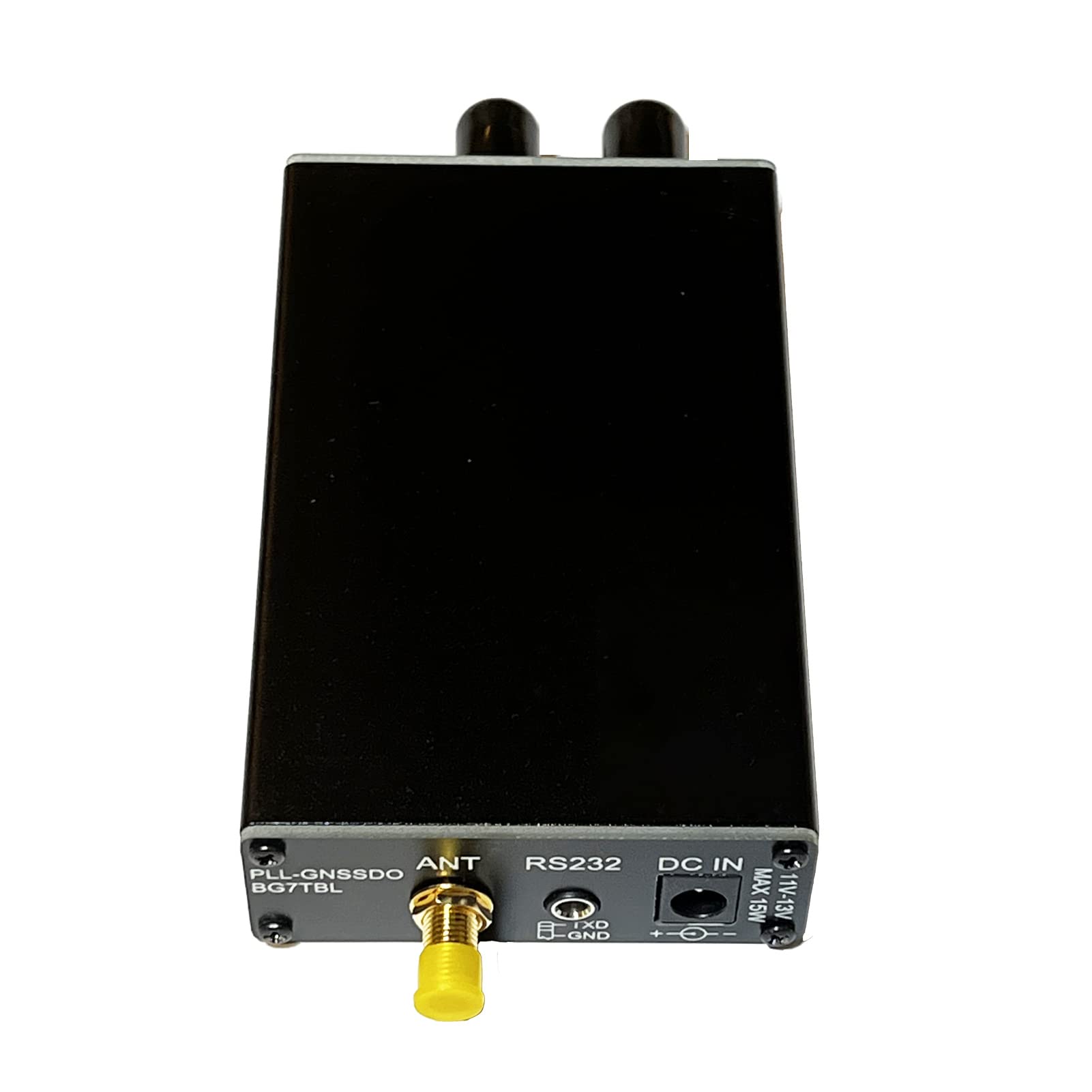

ItemName : Disciplined oscillator PLL-GNSSDO GNSS Disciplined Oscillator GNSS Disciplined Clock 10MHz High Precision Clock (GPS Plus BDS)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : oscillators
Manufacturer : TOSYUWIR
ModelNumber : DMBGRXJF
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DMBGRXJF
ProductDescription :

GPSDO name GPS disciplined oscillator used GPS output accuracy time signal to control clock equipment. This equipment used a GPS output signal, controlled onboard OCXO, and used a unique algorithm to filter the GPS time jitter. Make the OCXO output accuracy clock. Always amend.

TYPE: PLL-GPSDO
POWER: DC11.7-12.9V / < =5W
GPS ANT POWER: DC3.3V
1PPS OUTPUT: SQUARE WAVE, 3.3Vpp, synchronize UTC
10M OUTPUT: SINE WAVE,6dBm+-2dB
RS232 OUTPUT: GPS NMEA SIGNAL,9600BPS
ACCURACY: P-P:0.03Hz@10MHz, FREQUENCY MEAN:0.0001Hz@10M
Dimensions: W*H*D=138*25*65mm (INCLUDE BNC CONNECT)
ACCESSORY: AC110-220-DC12V ADAPTER, 5 meters GPS ANT.

Frequently Asked Questions
Q: How to judge the machine is good
A: After powering on for a period, the red light is off, indicating that the machine is in good condition

Q: How to judge the MCU is running well
A: When power is on, all LEDs are on, then the RUN light flashes and the red light is on. The MCU is in good condition.

Q: What should I do if the GPS antenna is not long enough? Can I not connect the GPS antenna?
A: When the GPS antenna is not long enough, you can use an extension cable, such as 5 meters, 10 meters, 15 meters, and 20 meters. You cannot connect the GPS antenna. Currently, it is an ordinary OCXO.

ProductSiteLaunchDate : 2022-09-08T02:39:16.305Z
Size : 47uh
UnitCount : 1
UnspscCode : 32111706
