Specification
Brand : Respicefinem
BulletPoint1 : Versatile Signal Conversion: This level converter easily converts signals between 5V and 24V levels and can convert within the same voltage range (5V to 5V / 24V to 24V) or cross convert. Suitable for NPN/PNP input signals, ensuring compatibility with a wide range of devices
BulletPoint2 : Improved immunity to interference: The level shifter's built-in optocoupler isolation technology separates input and output signals, significantly improving circuit stability and immunity to interference, making it ideal for noisy industrial environments
BulletPoint3 : Flexible Input/Output Options: The level shifters feature DIP switches for quick configuration of the input level (5V or 24V), and the NPN OC outputs support currents up to 100mA (for 24V outputs), and up to 1A of load capacity when required
BulletPoint4 : Wide Compatibility: Designed to match common cathode and common anode inputs, this level converter complies with European and Japanese PLC interface standards. Includes a conversion and amplification circuit that provides clean waveforms and powerful drive
BulletPoint5 : Robust Design: This level shifter has a universal AC/DC power interface with a visual power indicator. Measuring approximately 4.1x2.9x1.2 inches and weighing approximately 100 grams, the module is a compact and powerful solution. Optional M3 standoffs (not included)
Color : Blue
ItemName : Respicefinem 8-Channel NPN PNP Signal Converter 5V/24V Square Level Shifter with Optocoupler Isolation 10MHz Frequency Compatibility for PLC MCU Interface Matching
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : optocouplers
Manufacturer : Respicefinem
ModelNumber : Respicefinembo7raxskfp
PartNumber : Respicefinembo7raxskfp
ProductDescription : Features:

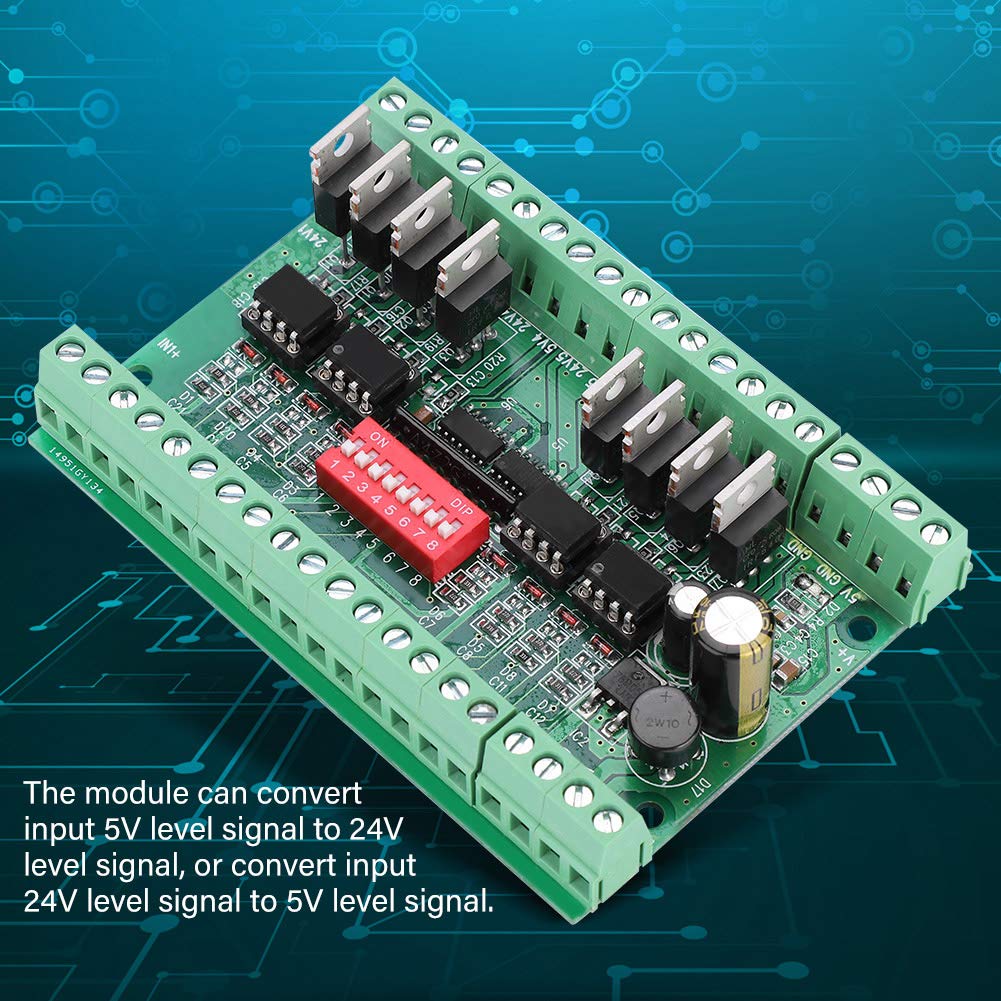

The module can convert input 5V level signal to 24V level signal, or convert input 24V level signal to 5V level signal.
It can also convert signal 5V to 5V, or 24V to 24V level, and isolate input signal and output signal through optocoupler, which can improves anti-interference ability of circuit.
Input level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA.
It has conversion and amplification circuit, good , strong driving ability.
Compatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface standards.
Compatible with AC/DC input power supply interface, designed with power indicator light.
When output is selected as 24V level, it is NPN OC output, with maximum 1A load capacity. 24Voutput is OC output (NPN collector open circuit output), if you want to test output, it must add resistor, normally use a 10KR resistor.
When converting signal to 24V level, the power supply of input should be 24V.
When converting signal to 5V level, the power supply of input can be in between 7V-35V.
You can use 4pcs M3 standoffs(not included) to install it.

Specification:
Model: 8-5V24V
Channel: 8-channel
Input: NPN or PNP, 5V or 24V level squarewave signal
Output: NPN 5V or 24V squarewave signal
Size: Approx. 10.3*7.3*3cm/4.1*2.9*1.2inch
Weight: Approx. 100g / 3.5oz
Switch SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
Input 5V Level ON ON ON ON ON ON ON ON
Input 24V Level OFF OFF OFF OFF OFF OFF OFF OFF

Package List:
1 x Level Converter
