Specification
Brand : Respicefinem
BulletPoint : 10Pcs/Lot MOC3021 DIP-6 Optical Coupler(OC) Optocoupler +
BulletPoint1 : Multiple Input Compatibility: The converter supports NPN and PNP input signals voltage levels (5V or 24V) for square signals, making it a versatile solution for a variety of industrial and automation systems
BulletPoint2 : High Frequency Performance: The converter can process signal conversions at speeds up to 10MHz, ensuring fast and accurate transmission in high-speed applications
BulletPoint3 : 8 Independent Channels: Equipped with 8 independent control channels, the module provides ample capacity for complex signal management and project expansion
BulletPoint4 : Easily Adjust Outputs: The converter is easily configured with intuitive switches (SW1-SW8) that allow you to toggle between a 5V output when each channel is on and a 24V output when it is off
BulletPoint5 : Compact & Robust Design: Measuring approximately 11 x 9 x 5 cm, this converter module is space-saving, weighs approximately 170 grams, making it a reliable addition to any control cabinet or device
CircuitType : digital
Color : One Color
ConnectorType : Dip-6 Pin Header
CurrentRating : 16 amps
ExternallyAssignedProductIdentifier : 7623666600877
ExternallyAssignedProductIdentifier1 : 0733199504614
ExternallyAssignedProductIdentifier2 : 733199504614
Hazmat1 : NO
IncludedComponents : Plastic+iron sheet
InputVoltage : 12 volts_of_alternating_current
InterfaceType : Optical

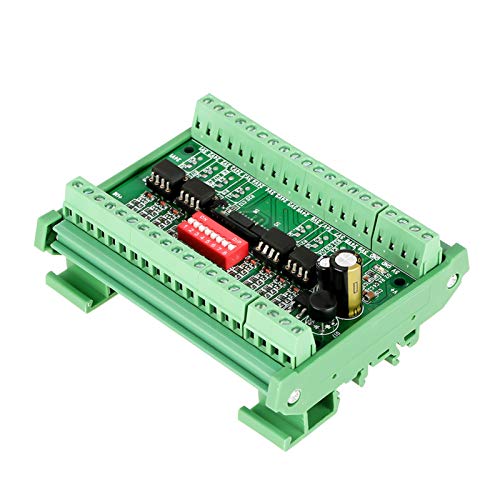

ItemName : Respicefinem 8-Channel NPN NPN 5V 24V SquareWave Signal Level Converter Module Isolated Optocoupler Amplification Circuits for PLC MCU Interface Matching
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : optocouplers
Manufacturer : Respicefinem
Material : Plastic
MaximumSupplyVoltage : 12 volts_of_direct_current
MeasurementSystem : Metric and Number Gauge
MinimumSupplyVoltage : 12 volts_of_direct_current
ModelName : SXQWEPGOM
ModelNumber : Respicefinemef543tz0ap
MountingType : PCB Mount
NumberOfChannels : 4
NumberOfItems : 1
NumberOfPins : 8
NumberOfPositions : 6
OperatingVoltage : 12 volts_of_alternating_current
OperationMode : manual
PartNumber : Respicefinemef543tz0ap
ProductDescription : Features:
The module can convert input 5V level signal to 24V level signal, or convert input 24V level signal to 5V level signal.
It can also convert signal 5V to 5V, or 24V to 24V level, and isolate input signal and output signal through optocoupler, which can improves anti-interference ability of circuit.
Input level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA.
It has conversion and amplification circuit, good , strong driving ability.
Compatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface standards.
Compatible with AC/DC input power supply interface, designed with power indicator light.
When output is selected as 24V level, it is NPN OC output, with maximum 1A load capacity.24Voutput is OC output (NPN collector open circuit output), if you want to test output, it must add resistor, normally use a 10KR resistor.
When converting signal to 24V level, the power supply of input should be 24V.
When converting signal to 5V level, the power supply of input can be in between 7V-35V.
You can use 4pcs M3 standoffs(not included) to install it.

Specifications:
Model: 8-5V24V-D
Channel: 8-channel
Input: NPN or PNP, 5V or 24V level squarewave signal
Output: NPN 5V or 24V squarewave signal
Size:Approx. 11 x 9 x 5cm/4.3 x 3.5 x 2in
Weight: 170g(approx.)
SwitchSW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
Input 5V Level ON
Input 24V Level OFF
Package Includes:
1 x Level Converter

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.



ProductSiteLaunchDate : 2024-09-24T06:18:23.261Z
Size : 1PCS
SpecificationMet : IEC/EN 60947
SupplierDeclaredDgHzRegulation : transportation
UnitCount : 1
UnspscCode : 39122200
