AOICRIE 6pcs PC817 1 Channel Optocoupler Isolation Module 1CH Optocoupler PC817 3-5V 12V 24V Photoelectric Isolator PNP NPN Signal Converter Rail Holder PLC Drive Motor Board

Customer rating 4.7 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹7470 -37% ₹4700/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
Brand : AOICRIE

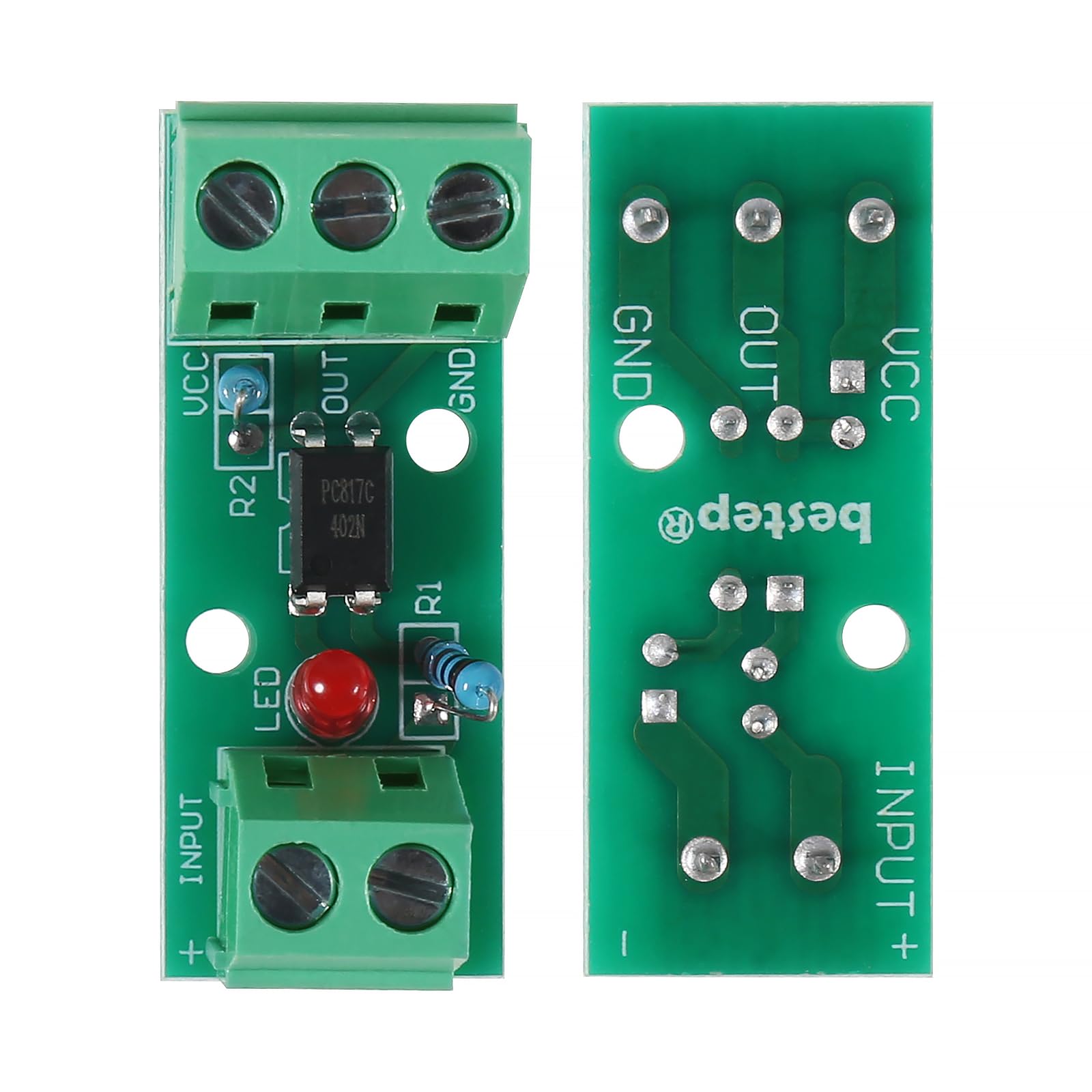

BulletPoint1 : 1-Channel PC817 optocoupler isolation module adopts 5.0 pitch screw terminals for convenient wiring.
BulletPoint2 : 1-way 817 optocoupler drive terminal input signal voltage: DC 3V-5V/12V/24V (optional); Output signal voltage: wide voltage suitable for DC1.8V-24V.
BulletPoint3 : The 1-way optocoupler isolation module is suitable for isolation when the output level of the single-chip microcomputer is used to drive inductive components such as motors, and anti-interference protects some circuits of the single-chip microcomputer.
BulletPoint4 : PC817 1 channel way optocoupler isolation board are good as the level converter(NPN-PNP, PNP-NPN), and can also be used to input a signal to MCU in isolation or MCU control another device in isolation.
BulletPoint5 : Photoelectric isolator rail holder PLC drive motor board output level of the single-chip microcomputer is low, and the driving voltage of the driven module is high for level matching.
ExternallyAssignedProductIdentifier1 : 0687117711472
ExternallyAssignedProductIdentifier2 : 687117711472
InterfaceType : Optical
ItemName : AOICRIE 6pcs PC817 1 Channel Optocoupler Isolation Module 1CH Optocoupler PC817 3-5V 12V 24V Photoelectric Isolator PNP NPN Signal Converter Rail Holder PLC Drive Motor Board
ItemPackageDimensions_Height : 0.1 inches
ItemPackageDimensions_Length : 0.1 inches
ItemPackageDimensions_Width : 0.1 inches
ItemTypeKeyword : optocouplers
Manufacturer : AOICRIE
MaximumSupplyVoltage : 24 volts_of_direct_current
MountingType : DIN Rail
NumberOfChannels : 1
NumberOfPins : 4
PartNumber : PC817 1 Channel Optocoupler Board
ProductDescription : PC817 1-channel optocoupler isolation module adopts 5.0 pitch screw terminals for convenient wiring. PC817 optocoupler board is suitable for isolation when the output level of the single-chip microcomputer is used to drive inductive components such as motors, and anti-interference protects some circuits of the single-chip microcomputer. The output level of the single-chip microcomputer is low, and the driving voltage of the driven module is high for level matching. For example, some PLC inputs require 24V voltage, which can be converted by this module. Used for inverter, can invert the input signal and output. Used for high voltage detection, for example, the output signal level of a certain sensor is 12V, and the voltage of single-chip microcomputer is 5V. PC817 module can be used to isolate and detect. Current amplification. For example, when the output current of the MCU is too small to drive certain circuits, this module can be used for amplification. The module adopts optocoupler isolation, which is stable and reliable and has a long service life.

PC817 parameters:
Input signal voltage: DC 3V-5V/12V/24V (optional)
Output signal voltage: wide voltage suitable for DC1.8V-24V

EL817 features:
Isolation voltage is greater than 3000V
Input current max 50MA
Working current>1MA
Maximum output current 50MA (input current must be 15-20MA)
Working temperature -55~110 degrees.
Maximum application signal frequency: 5KHz

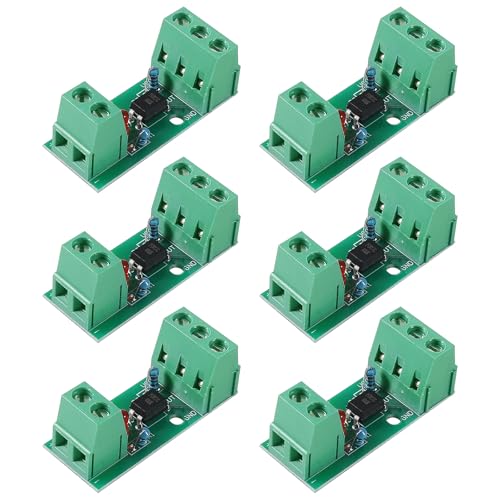

Package Included: 6pcs 1-Channel PC817 Optocoupler Isolation Module
ProductSiteLaunchDate : 2024-12-04T08:00:00.000Z
UnspscCode : 43210000
