Specification
BulletPoint1 : Model: FS-N10
BulletPoint2 : Type: 0-line
BulletPoint3 : Main unit/expansion unit: Expansion unit (No output cable)
BulletPoint4 : Control output: N/A*1
BulletPoint5 : Light source LED: Red, 4-element LED
ExternallyAssignedProductIdentifier1 : 0751753842002
ExternallyAssignedProductIdentifier2 : 751753842002
IncludedComponents : No

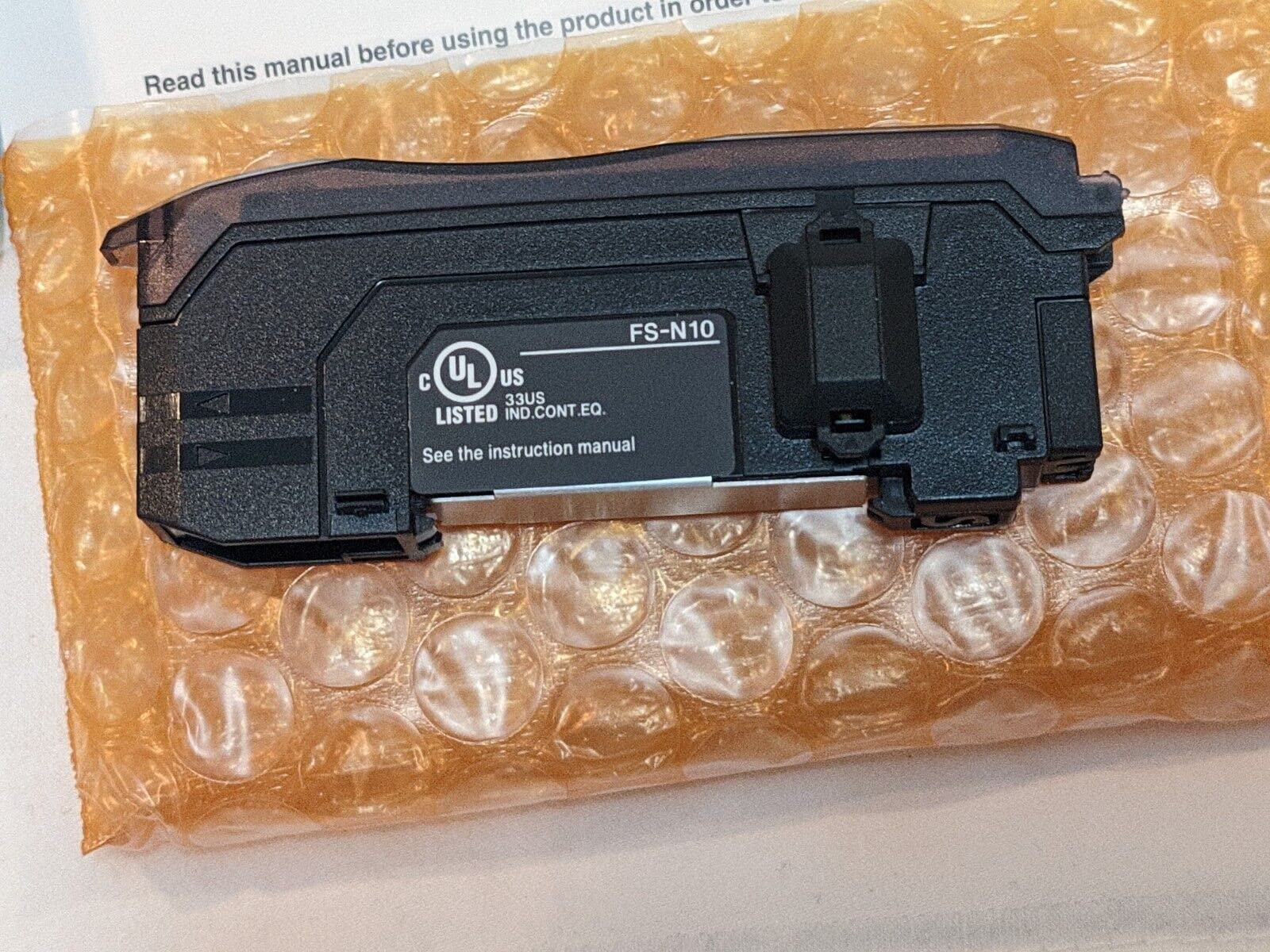

ItemName : Vanky Industry KEYENCE FS-N10 Fiber Optic Sensor New
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-optical-sensors
Manufacturer : Vanky Industry
Material : Polycarbonate
MountingType : Flange Mount
NumberOfItems : 1
PartNumber : FS-N10
ProductDescription :

KEYENCE FS-N10 Fiber Optic Sensor New

Specifications:

Model: FS-N10

Type: 0-line

Main unit/expansion unit: Expansion unit (No output cable)

Control output: N/A*1

Light source LED: Red, 4-element LED

APC: ON/OFF switchable (Factory setting: OFF)

Response time: 50 μs (HIGH SPEED) /250 μs (FINE) /500 μs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA)

Number of interference prevention units: 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.)

Unit expansion: Up to 16 units can be connected total (two output type is treated as two units)

Rating:

1. Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less

2. Current Consumption: Normal: 900 mW or less (36 mA max. at 24 V, 48 mA max. at 12 V)*2 Eco on mode: 800 mW or less (32 mA max. at 24 V, 39 mA max. at 12 V)*2 Eco Full mode: 470 mW or less (19 mA max. at 24 V, 23 mA max. at 12 V)

Environmental resistance:

1. Ambient light: Incandescent lamp: 20,000 lux or less, Sunlight: 30,000 lux or less

2. Ambient temperature: -20 to +55 °C -4 to +131 °F (No freezing)*3

3. Relative humidity: 35 to 85 % RH (No condensation)

4. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

5. Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions

Case material: Both main unit and expansion unit housing material: Polycarbonate

Weight: Approx. 20 g

ProductSiteLaunchDate : 2023-04-12T07:59:44.918Z
Style : Modern
