Specification
Brand : MeterTo
BulletPoint : Multi-channel Resistance Meter, micro ohmmeter with multiple channels
BulletPoint1 : Basic Accuracy: 0.1%Of Reading + 2 Counts;
BulletPoint2 : Range: 20 MΩ, 200 MΩ, 2 Ω, 20 Ω, 200 Ω, 2 KΩ,20 KΩ;
BulletPoint3 : Measuring Speed(Meas/Sec): Fast: 10, Slow: 2.5;
BulletPoint4 : Highly precise and better cost effectiveness;
BulletPoint5 : Ranging Mode: Auto, Keep.
ExternallyAssignedProductIdentifier : 8161220783462
ExternallyAssignedProductIdentifier1 : 0733424207730
ExternallyAssignedProductIdentifier2 : 733424207730

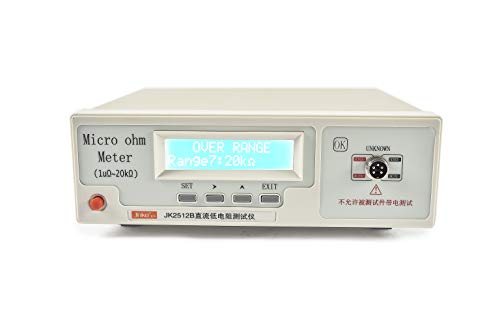

ItemName : MeterTo DC Low Ohm Meter JK2512B Low Resistance Tester 0.001 MΩ—19.99 KΩ 1A-10ΜA
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : MeterTo
Material : Plastic
MeasurementType : Ohmmeter
ModelNumber : VTS AT516L
PartNumber : HZ-5100S
PowerSourceType : Battery Powered
ProductDescription : MeterTo
MeterTo mainly offers instruments and tools.
Please confirm the product is offered by our store MeterTo when purchasing,
otherwise we can't ensure the quality and after-sale service.

Specification
Model: JK2512B Measurement Range：1 Μω- 19.999KΩ
Basic Accuracy: 0.1%Of Reading + 2 Counts
Display Range: 0.001 MΩ —19.99 KΩ
Measuring Current: 1 A, 100 Ma, 10 Ma, 1 Ma, 100 ΜA,10ΜA
Range: 20 MΩ, 200 MΩ, 2 Ω, 20 Ω, 200 Ω, 2 KΩ,20 KΩ
Range Resolution: 1 Μω, 10 Μω, 100 Μω, 1 MΩ, 10 MΩ, 100 MΩ, 1 Ω
Measuring Speed(Meas/Sec): Fast: 10, Slow: 2.5
Ranging Mode: Auto, Keep
Function: On/Lower Limit Set，Pass/Fail，Range Lock，Zero，Data Protection
Interface: HANDLER
Operation Temperature And Humidity: 0℃ —40℃, ≤90% RH
Power Requirements: 198 V —242 V AC, 47.5 Hz —52.5 Hz
Power Consumption: ≤30 VA
Dimensions (W×H×D): 270 Mm×110 Mm×330mm
Weight: 3.3 Kg Approx

Signal Name: Introduction
TF: Test End Signal
RESET: Qualified Switch Output
OUTPUT: Unqualified Switch Output
OUTPUT: Busy
EXT.TRIG: External Trigger Signal：Low Level Trigger（2ms~20ms）
+V（Approx 15V): Separate The Internal Power（Load Capacity：100ma）
N.C: RS232 Interface Standby（Connect RS232 PIN7）; RS232 Interface Standby（Connect RS232 PIN8）
GND: Relative To +V，Segregate Inner Power
ProductSiteLaunchDate : 2019-10-07T07:00:00.000Z
SpecificationMet : Beep
Style : Basic
UnspscCode : 41113600
