Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Hantek
BulletPoint1 : 6 1/2 -bit reading high -resolution internal resistance tester
BulletPoint2 : 1μV voltage resolution, 0.1μΩ Resistance resolution, with high precision, high speed
BulletPoint3 : Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface
BulletPoint4 : Using AC 4 -terminal method, the impedance can not be affected
BulletPoint5 : nternal impedance measurement range:3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.6kΩ.
Color : Multicolored
Hazmat1 : un1993
IncludedComponents : -HBT4566A/H

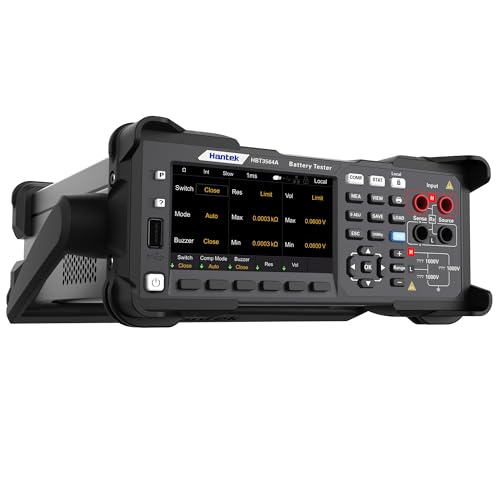

ItemName : Hantek HBT4564A/H HBT4565A/H HBT4566A/H HBT4561A/H HBT4562A/H HBT4563A/H 6 1/2 bit high-Voltage Battery Internal Resistance Tester Battery Tester Battery Internal Resistance Tester （HBT4566A/H）
ItemPackageDimensions_Height : 170 millimeters
ItemPackageDimensions_Length : 220 millimeters
ItemPackageDimensions_Width : 120 millimeters
ItemTypeKeyword : ohmmeters
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : Hantek Qingdao
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : 0.5%
ModelNumber : YQH-HBT4566A/H
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : YQH-HBT4566A/H
ProductDescription : 6 1/2 bit high-voltage battery internal resistance tester HBT4000 series features
6 1/2 -bit reading high -resolution internal resistance tester is a battery internal resistance tester with high accuracy and rapid measurement characteristics. The measured resistance range reaches 3.9kΩ and the measurement voltage range reaches 410V.
1μV voltage resolution, 0.1μΩ Resistance resolution, with high precision, high speed, suitable for various battery types.
Standard RS232/485, LAN, EXT I/O, USB Host, USB Device, ANALOGOUTPUT interface, optional GPIB interface, suitable for more testing scenarios.
Using AC 4 -terminal method, the impedance can not be affected by the impedance of the test line during the impedance measurement.
It has a comparison function with resistance and voltage respectively, and the battery intimidation and voltage are displayed at the same time.
Support U disk screenshots to save functions, and you can upgrade the instrument program through the U disk.
Sampling rate: slow/medium/fast, with a maximum speed of approximately 40 ms for high-speed measurement.
Internal impedance measurement range:3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3.9kΩ.
The full range of voltage measurement covers:160V/260V/410V
Draw the normal distribution diagram to observe the normal distribution of the measurement results.
The measurement results are easily saved into the U disk to facilitate subsequent data analysis and processing.
ProductSiteLaunchDate : 2024-02-28T09:21:08.614Z
Size : -HBT4566A/H
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : ISO 9001
SupplierDeclaredDgHzRegulation : transportation
UpperTemperatureRating : 60 degrees_celsius
Wattage : 10 watts
