Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : AugustknowU
BulletPoint1 : [PORTABLE AND LIGHTWEIGHT] Designed for convenience, this handheld DC milliohm meter is compact and lightweight at just 92 x 72 x 28mm, for professionals who require accurate measurements in various locations.
BulletPoint2 : [PRECISE FOUR-WIRE MEASUREMENT] With its four-wire Kelvin measurement capability, this meter significantly reduces measurement error, providing you with high accuracy in low resistance testing tasks.
BulletPoint3 : [TYPE C RECHARGEABLE BATTERY] The built-in dynamo battery can be conveniently charged through a Type C port, ensuring you are always ready for your next testing job without worrying about battery life.
BulletPoint4 : [DATA HOLD FEATURE FOR EASE OF USE] The device includes a practical test data hold function that enables you to save and review your measurements effortlessly during inspections or evaluations.
BulletPoint5 : [CHECK YOUR MEASUREMENTS] Remember to verify your specific measuring needs prior to using the device to precise outcomes.
BulletPoint6 : Conductor resistance measurement of the connection part between the grounding grid and the grounding electrode
Color : as picture show
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat11 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat12 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat13 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat14 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat15 : IE_SmallLithiumIonBatteryWithEquipment
Hazmat16 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat17 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat18 : JP_SmallLithiumIonBatteryWithEquipment
Hazmat19 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat21 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat22 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat23 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat24 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat25 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat26 : US_SmallLithiumIonBatteryWithEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat28 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat5 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat6 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat7 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat8 : CA_SmallLithiumIonBatteryWithEquipment
Hazmat9 : CN_SmallLithiumIonBatteryWithEquipment
IncludedComponents : Host, Accessories, User Manual, CD, Warrenty Card, Testing Report

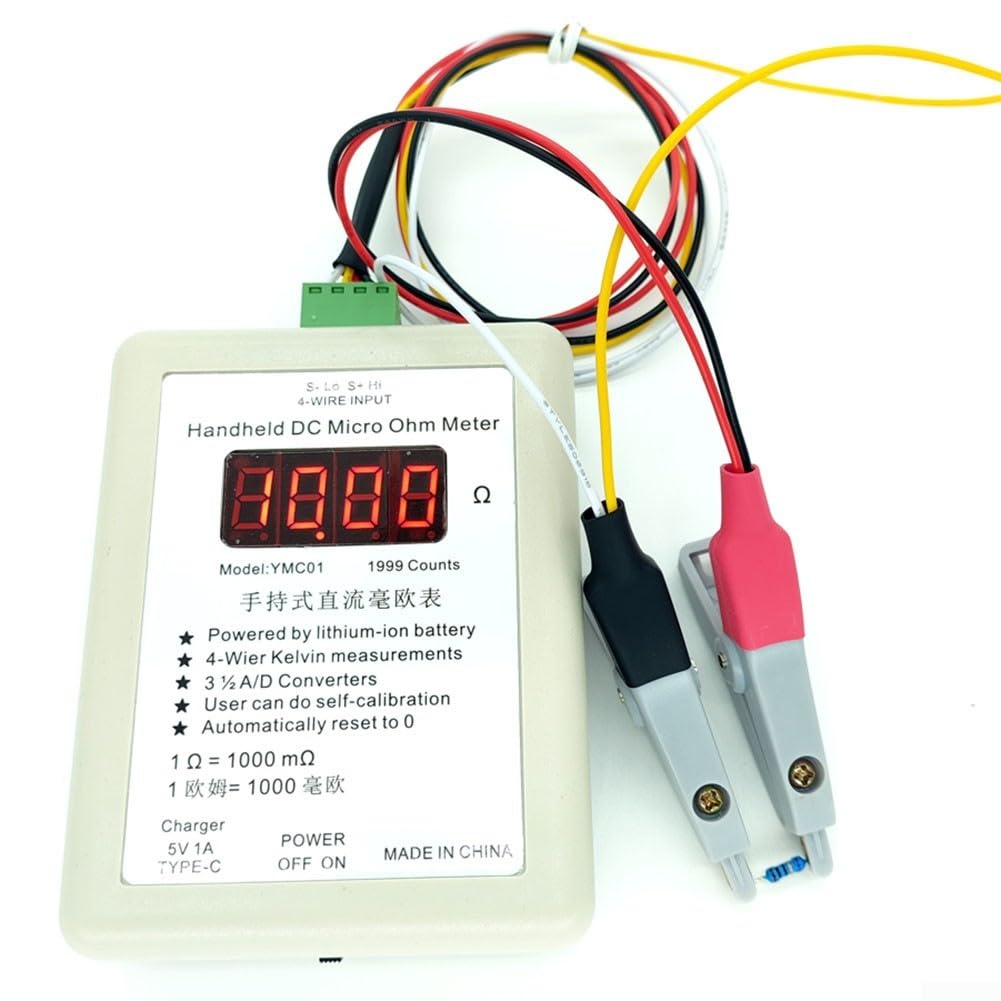

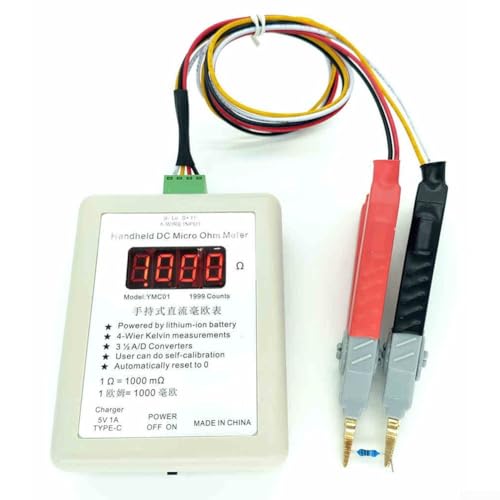

ItemName : AugustknowU YMC01 Handheld DC Milliohm Meter Low Resistance Tester Four-Wire Kelvin Measurement 2R/20R Range Digital Display Earth Ground Resistance Meter with Type-C Charging(Large Clip 2R)
ItemPackageDimensions_Height : 36.322 centimeters
ItemPackageDimensions_Length : 24.638 centimeters
ItemPackageDimensions_Width : 31.242 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : AugustknowU
Material : acrylonitrile_butadiene_styrene
MaximumOperatingVoltage : 12 volts_of_direct_current
MeasurementAccuracy : 0.2 Level
MeasurementType : Ohmmeter
MinimumOperatingVoltage : 7 volts_of_direct_current
ModelName : Akozonnqpe8y1k7o
ModelNumber : L68U88HKP0P2DVIIIEVYQ4J6PME8
NumberOfItems : 4
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : L68U88HKP0P2DVIIIEVYQ4J6PME8
Pattern : HY-UT3513
PowerSourceType : Battery Powered
ProductDescription :

Features:

1. Small size and handheld, easy to carry

2. Built-in dynamo battery, charging via Type-C port

3. Four-wire Kelvin measurement, smaller error

4. Test data hold function

5. Built-in 3296 potentiometer, user can calibrate by themselves

6. 8888 red digital tube display

7. Automatic zeroing, no need to adjust 0

Specifications:

Part name: Handheld DC milliohm meter

Material: abs

Color: white

Size: 92*72*28mm

Resolution: 2R=1Ω, 20R=10mΩ

Measuring range: 2R=1-1999mΩ, 20R=0.01-19.99Ω

Test current: 2R=about 100mA, 20R=about 10mA

Accuracy: ±(0.1% digit + 3 words)

Open circuit output voltage: <4.2V DC

No-load power consumption: 13mA

Power supply: 3.7V 600mAH

Charging port input voltage: Type-C 5V1A

Charging current: 0.5A

Charging indication: Charging, red light on; Charging completed, red light off

Test wire length: 35cm

Resistance measurement way: four-wire Kelvin measurement

Working environment: 10-35℃ RH＜80%

Product use：

Measure small resistance DC resistance, such as:1. Transformer coil, motor coil

2. MOS tube on-resistance (an auxiliary power supply is required to trigger the for GS pole)

3. Contact resistance of switches and relay contacts

4. Resistance of electronic wires and audio wires

5. Find short circuit points on circuit boards

6. Sampling resistance measurement

Package content:

A: 1* small clip range 2R resistance tester + 1* test

B: 1* small clip range 20R resistance tester + 1* test

C: 1* large clip range 2R resistance tester + 1* test

D: 1* large clip range 20R resistance tester + 1*Test

ProductSiteLaunchDate : 2025-02-14T09:26:26.208Z
Size : large clip 2R
SpecificationMet : CE
SpecificationMet1 : CE
SpecificationMet2 : UKCA
SpecificationMet3 : RoHS
SpecificationMet4 : ISO 9001
Style : Portable, High Precision, Full-featured
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
Wattage : 5 watts
