Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : WANLUTECH

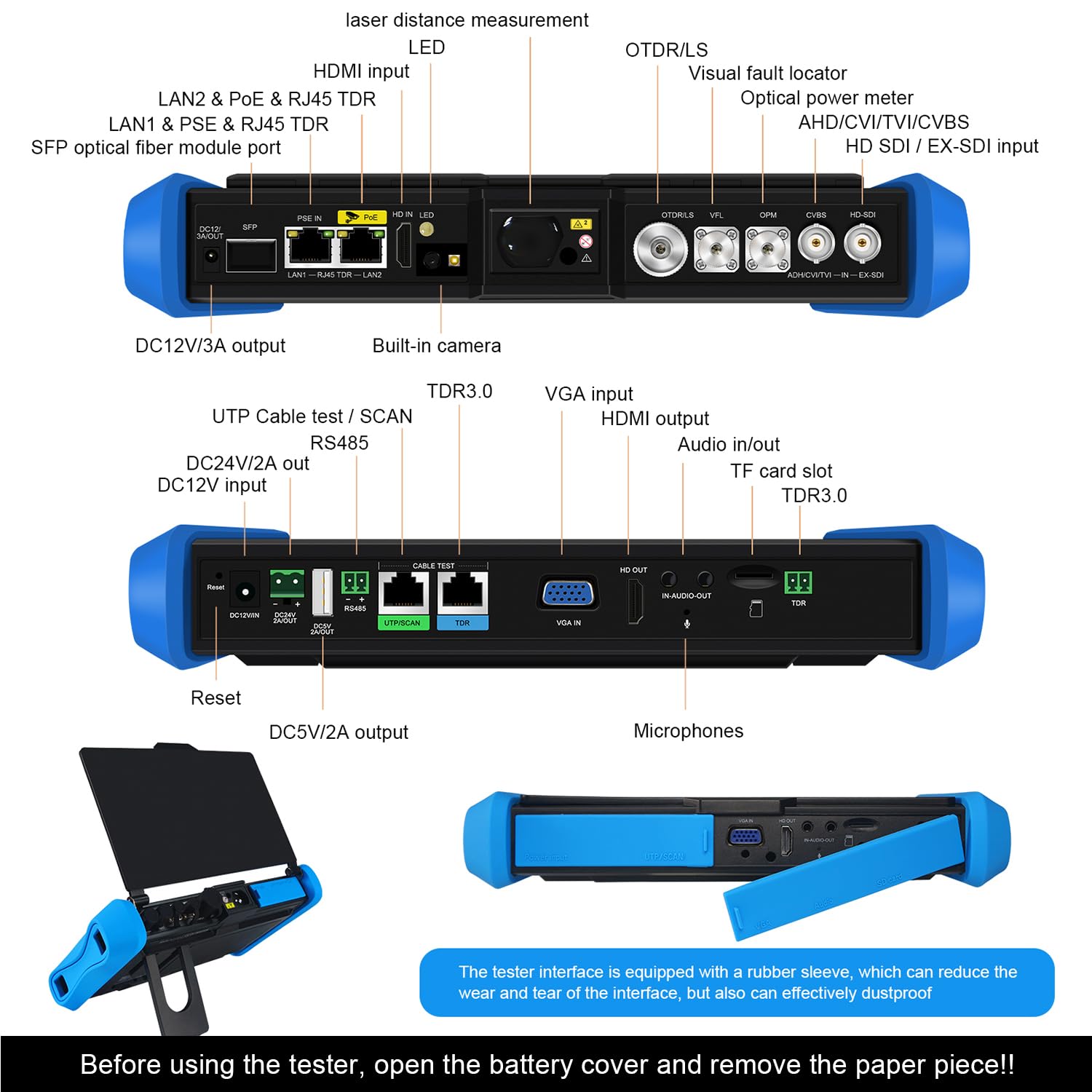

BulletPoint1 : [ OTDR Fiber Optic Tester ] WANLUTECH MT-8810EFST combines necessary fiber optic testing in one handheld device. OTDR test: wavelength 1310nm/1550nm, dynamic range 28dB/26dB. As well, it is for maintenance and installation of 8K IP camera, analog camera, HD coaxial (8MP AHD, CVI, TVI, SDI) cameras. More feature:8 inches touch screen, 1920x1200 resolutions, TDR cable tester, network test tools, digital multimeter, distance measurement, dual gigabit Ethernet 10/100/1000M Ports, PoE power output, VGA input, HDMI in/out, RS485,built-in camera, etc
BulletPoint2 : [ OPM VFL LS OLS Event map ] OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual Fault Locator:10mW output power, 650nm wavelength, max test range 8KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices); EVENT MAP: Visualise the results of fibre optic link inspections. Save and view the testing curves, support zoom and move curves, view details. (Event Blind Zone <1.6 m, Attenuation Blind Zone<8 m), Support create testing report. SOR standard file format PDF/EXCEL
BulletPoint3 : [ CCTV Camera Tester & TDR Cable Tester ] WANLUTECH CCTV Tester supports to test max 8K 32MP 4K 12MP IP cameras, support CVBS analog camera test. It supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support to test max 8MP AHD/TVI/CVI/SDI camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI cameras, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. TDR Cable Breakpoint Short Circuit Test: BNC cable, network cable, telephone cable, RVV cable and TVVB elevator cable, cat 5/6 cable’s length(up to1.2 KM ) and short circuit
BulletPoint4 : [ Network Test Tools & SFP & DMM & Cable Tracer ] Network Test: Ping test, IP scan, FTP file management, PPPOE, Port flashing, LLDP, Link monitor,etc. It has a gigabit SFP optical fiber module port, support to insert SFP optical fiber module, for optical fiber network testing. DMM(Digital Multimeter: DC and AC voltage measurement, DC and AC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement ). Digital Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 CABLE TDR Test: It can test cable pair status, length, attenuation, reflectivity, impedance, skew
BulletPoint5 : [ Distance Measure & WIFI & HDMI & VGA ] The OTDR tester has a distance measuring function, It has several measurement modes, and support export data. WIFI analyzer: support to analyse wifi signal strength,channel,channel level, etc. Built in 2.4G/5G WIFI, speeds 150M/433M, also can create WI-FI hotspot. HDMI input support max 4K 30fps, HDMI output support max 4K 60fps. VGA input support max 1080P 60fps
BulletPoint6 : [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
Color : Blue+black
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat11 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat12 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat13 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat14 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat15 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat16 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat17 : JP_SmallLithiumIonBatteryWithEquipment
Hazmat18 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat19 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat21 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat22 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat23 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat24 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat25 : US_SmallLithiumIonBatteryWithEquipment
Hazmat26 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat27 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat5 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat6 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat7 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat8 : CA_SmallLithiumIonBatteryWithEquipment
Hazmat9 : CN_SmallLithiumIonBatteryWithEquipment

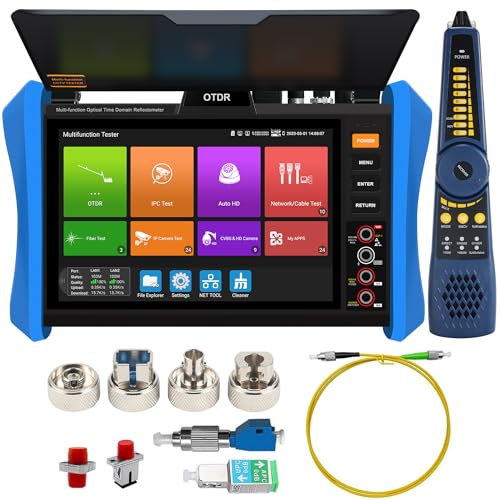

IncludedComponents : OTDR MT-8810EFST +digital cable tracer +tool bag +OTDR test report +accessories
ItemName : WANLUTECH OTDR Fiber Test 1310/1550nm OPM LS VFL OLT Event Map SDI AHD CVI TVI CVBS 8K IP Camera Tester Gigabit SFP Port Digital Multimeter Cable Tracer RJ45 Cable TDR Test Network Tools HDMI VGA
ItemPackageDimensions_Height : 9.5 centimeters
ItemPackageDimensions_Length : 32 centimeters
ItemPackageDimensions_Width : 29 centimeters
ItemTypeKeyword : network-and-cable-testers
Manufacturer : GUANGZHOU WANGLU TECHNOLOGY CO.,LTD
MeasurementAccuracy : ±(1m+ Sampling interval +0.005％×Test distance)
MeasurementType : Wavelength, Optical Power
ModelNumber : MT-8810EFST
NumberOfItems : 1
NumberOfLithiumIonCells : 6
PartNumber : MT-8810EFST
PowerSourceType : Battery Powered
ProductDescription : WANLUTECH multi-function OTDR series MT-8810EFST is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line. It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. as well. Combined with Ping, Scan IP, VFL, OPM, switch port detection and cable test function
ProductSiteLaunchDate : 2024-03-21T08:23:32.166Z
Style : MT-8810EFST
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41113600
