Specification
AgeRangeDescription : adult
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : UNI-T
BulletPoint : Ammeters
BulletPoint1 : Key features * Detect backlight without disassembly
BulletPoint2 : * Intelligent adjustment of voltage and current
BulletPoint3 : * Test value shown on LCD
Color : Multicolored
ExternallyAssignedProductIdentifier : 6430498367790
Hazmat1 : UN1993
IncludedComponents : UT659D

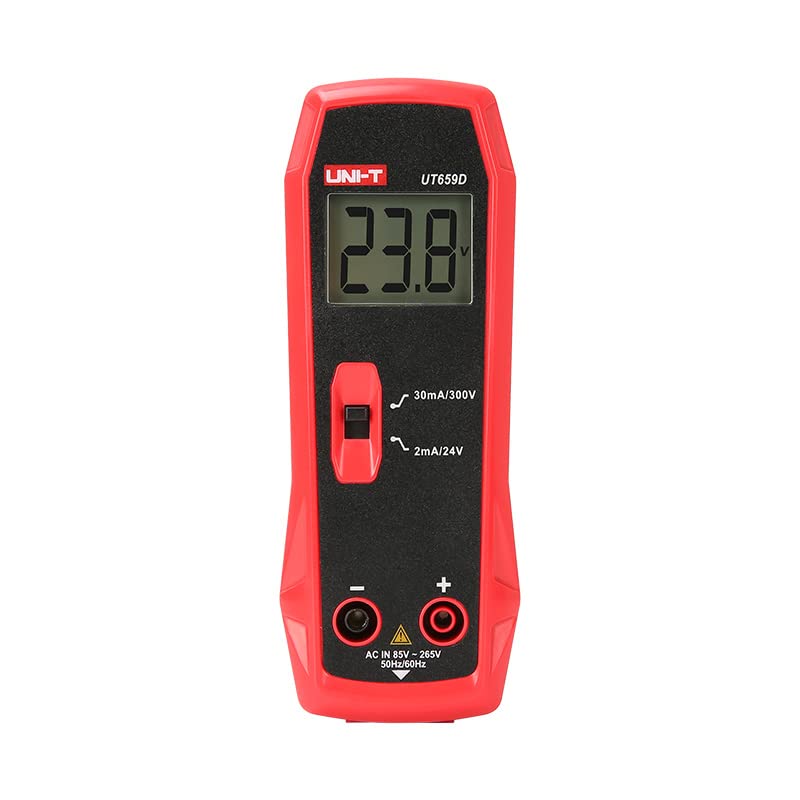

ItemName : UNI-T Uni-Trend UT659A UT659D LED Lamp Tester 0~300V Output TV Backlight Tester Multipurpose LED Strips Beads Test Electric Instruments(UT659D)
ItemPackageDimensions_Height : 130 millimeters
ItemPackageDimensions_Length : 200 millimeters
ItemPackageDimensions_Width : 120 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-and-cable-testers
Manufacturer : UNI-Trend
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +-0.1%
ModelName : ATUUKOPC
ModelNumber : HY-UT659D
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : HY-UT659D
Pattern : HY-UT659D
PowerSourceType : Battery Powered

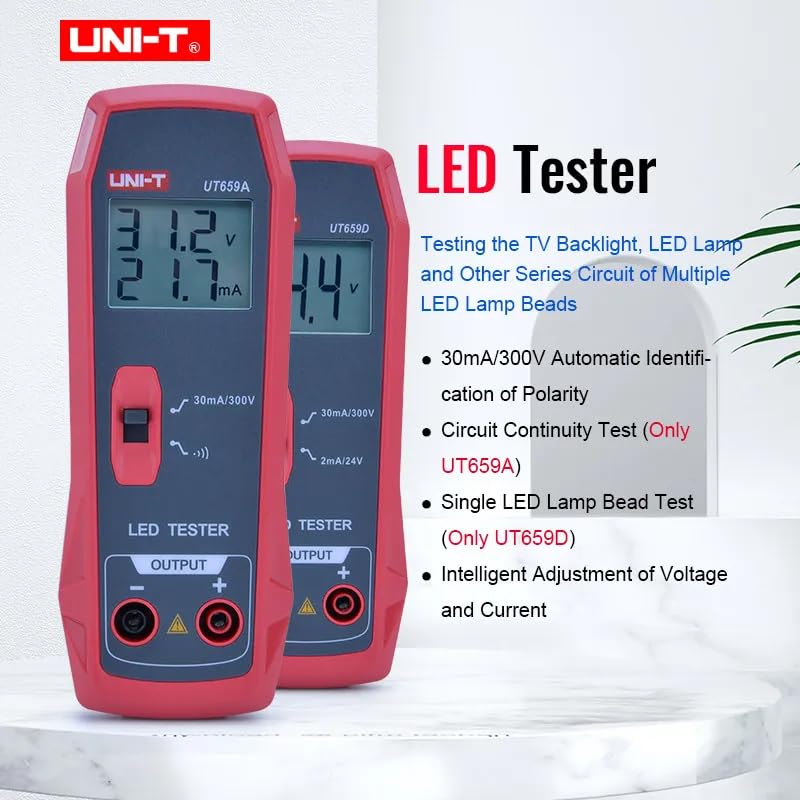

ProductDescription : UT659 Series LED testers

UT659 series products are widely used in LED single lamp bead test (UT659D), inspection and repair of LCD TV backlight, strip light and modulator tube, etc.

UT659A/UT659D LED tester supports full voltage (85V~265V, 50Hz/60Hz) input, which can be used after 1 minute of power-up to ensure stable voltage output.

When performing a LED test at 30mA/300V, the LED polarity can be automatically identified, and the output voltage is adaptively adjusted according to the forward voltage drop of the tested LED.

Models in UT659 Series: UT659A, UT659D

Features of UT659 Series LED testers

● Detect backlight without disassembly

● Intelligent adjustment of voltage and current

● Test value shown on LCD

Continuity Output voltage: 5V (DC)

Measuring resistance: 0~99.9Ω

Input range 85V to 265V @ 50/60Hz

Backlight function constant on

Safety protection High-impedance open circuit

Operating temperature 0°C~40°C

Storage temperature -10°C~50°C

Relative humidity <80% RH

Operating altitude ≤2000m

Drop protection 1m

Category ratings CAT II 300V

General Characteristics

Power AC 85V~260V， 50Hz/60Hz

Display 60mm x 35mm

Product net weight 175g

Product size 150mm x 56mm x 42mm

Standard accessories Power cable, test leads, English manual

Standard individual packing Gift box, blister
ProductSiteLaunchDate : 2023-08-06T13:36:29.794Z
Size : UNI-T UT659D
SpecificationMet1 : CE
SpecificationMet2 : UKCA
SpecificationMet3 : RoHS
SpecificationMet4 : ISO 9001
Style : Cable and Network tester
SupplierDeclaredDgHzRegulation : transportation
UnitCount : 1
UnspscCode : 41113600
Wattage : 5 watts
