Specification
Brand : KOMSHINE
BulletPoint1 : ● Measurement range -70~+10dBm/-50~+26dBm (If we do not receive your message and will ship -70~+10dBm)
BulletPoint2 : ● Equipped with LED lights, not afraid of the dark; ±0.2 dB accuracy
BulletPoint3 : ● Self Calibration Function; We will ship -70~+10dBm if you do not leave us a message for -50~+26dBm
BulletPoint4 : ● 2.5mm universal interface + SC Adaptor
BulletPoint5 : ● Three Years warranty
Color : Green
ConnectorGender : Male-to-Male
ExternallyAssignedProductIdentifier1 : 0767093487971
ExternallyAssignedProductIdentifier2 : 767093487971
ExternallyAssignedProductIdentifier3 : 00754082108856
IncludedComponents : no
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

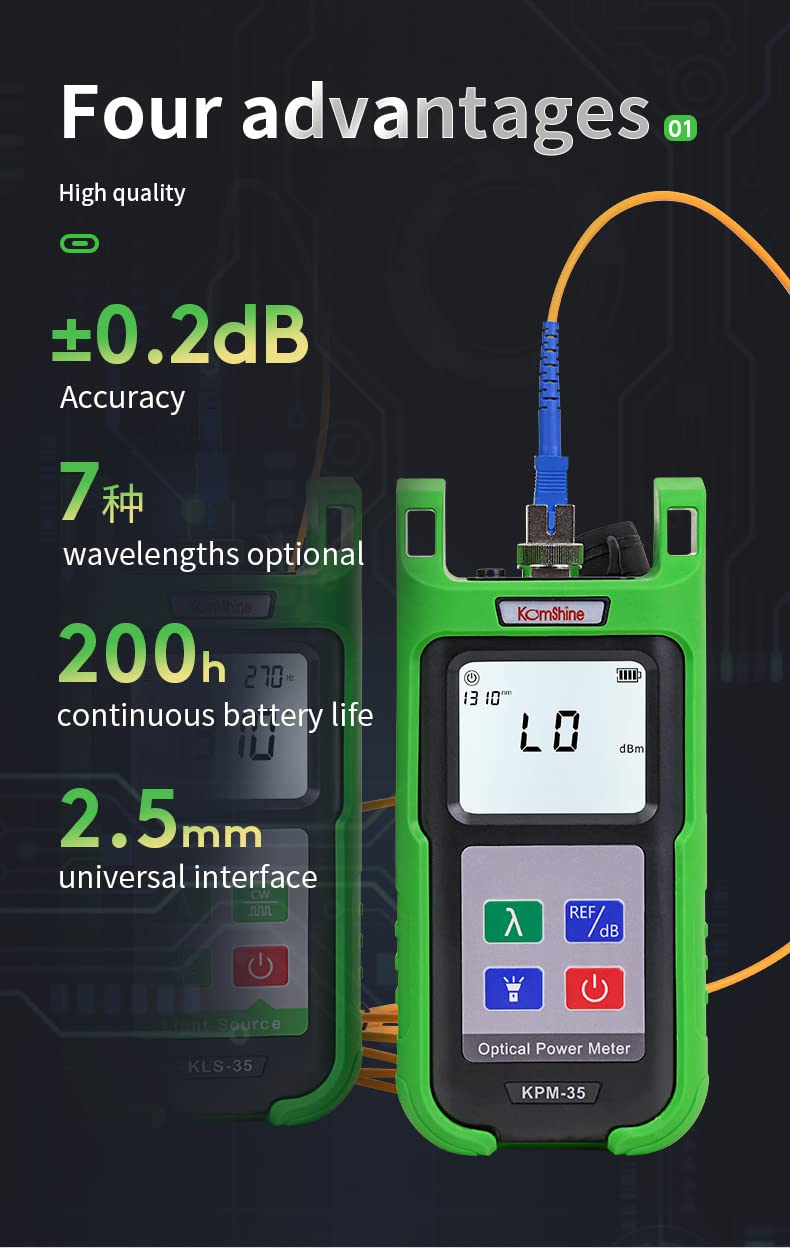

ItemName : KomShine KPM-35 Optic Fiber Power Meter with Measurement Range -70~+10dBm, Self Calibration Function
ItemPackageDimensions_Height : 21.9 centimeters
ItemPackageDimensions_Length : 1.2 centimeters
ItemPackageDimensions_Width : 20.4 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : network-and-cable-testers
Manufacturer : KOMSHINE
Material : plastic
MeasurementAccuracy : 0.01db
ModelNumber : SRC-9-SCSC
NumberOfItems : 1
PartNumber : KPM-35+KLS-35
PowerSourceType : Battery Powered
ProductDescription : 6 calibrated wavelengths optic fiber power meter KomShine KPM-35 High Precision FTTH fiber cable test tool with SC Connector


The KPM-35 Power Meter provides highly accurate power measurements, as well as reference value setting capabilities. What’s more, this convenient unit requires no offset nulling, and it offers power autonomy of 55 hours, for reliable, long-lasting performance in the field.


Specifications:

Wavelength(nm):Wavelength(nm):850,1300,1310,1490.1550.1625nm
Measurement Range:-70+3dBm
Optical Connector: SC 2.5mm universal
Power Supply:Alkaline Battery(3 AA 1.5V batteries)
Display Units:dB / dBm / w
Resolution (dB):0.01
Dimensions/Weight:160x85x45mm / 220g


Standard Accessories:

User guide——1PC
Certificate of Qualified—1PC
SC Connectors—1PC
Guarantee card—1PC
Soft carry bag—1PC

Optic fiber tester light source FTTx hand-held type fiber cable test tools with SC+FC connector


The KomShine KLS-35 Light Source provides excellent stability and high measurement accuracy for up to two single mode wavelengths. It is the perfect complement to the KPM-35 Power Meter when it comes to measuring attenuation on fiber-optic links


Specifications

Wavelength(nm):1310+1550nm
Typical Output Power:-5dB
Optical Connector:FC+SC 2.5mm universal
Power Supply:Alkaline Battery(3 AA 1.5V batteries)
Output Stability:±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies:CW,270Hz,1KHz,2KHz
Dimensions / Weight:160x85x45mm / 220g


Standard Accessories:

User guide——1PC
Certificate of Qualified—1PC
FC Connectors—1PC
SC Connectors—1PC
Guarantee card—1PC

ProductSiteLaunchDate : 2022-04-20T08:47:17.734Z
Size : Medium
Style : KPM-35 Power Meter
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43223300
