Product Information
Editorial Review
For outdoor/indoor applications. Excellent for Wi-Fi hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing Wi-Fi routers, access points or other Wi-Fi enabled devices which have reverse polarity SMA external antenna connectors.This low profile (~ 3 inches tall) fixed mount omni-directional antenna provides 3 to 5 dBi of gain and supports both the 802.11 b/g/n 2.4 GHz and 802.11 a/ac 5.8 GHz frequency bands. Permanently mounts via a 5/8 in. (16 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick threaded mounting post. Includes 10 ft of low-loss RG58U coax fed through center mounting post. Includes "L" bracket for optional wall mounting.Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67) when properly installed.Integrated RPSMA male plug connector mates with RPSMA female jack found on most Wi-Fi access points and routers.* When not used with the wall mount bracket, antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter for optimum performance.Specifications Frequency Range: 2400-2483 / 5150-5250 / 5725-5850 MHz (802.11 a, b, g, n, ac) Impedance: 50 ohm VSWR: < 2.0:1 Gain: 3-5 dBi Radiation: Omni Polarization: Vertical Connector: RPSMA plug (male) Material: UV stabilized ABS plastic (black) Connector: Brass with Nickel plating Cable Length: 10 ft (3m) low-loss RG58U coax Height: 3.2 in (82 mm) Diameter: 1.9 in (48 mm) Weight: 6.2 oz (176 g) Op. Temp.: -40C to +70Note: MIMO systems should have identical antennas on all connectors for best results.Proxicast is a USA-based manufacturer of wireless equipment.
Features
1) Low Profile ~ 3 inches Tall with 3-5 dBi Gain - Omni-directional

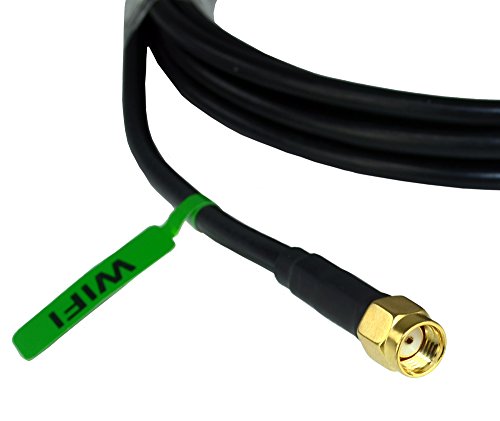

2) RP-SMA Connector on 10 ft Coax Lead / Vandal Resistant Materials & Design
3) IEEE 802.11 a/b/g/n/ac compatible / Works on all Wi-Fi networks including 2400 MHz and 5800 MHz Worldwide
4) Compatible with most SMA-RP devices such as access-points and routers from Airlink, CalAmp, Cisco, Cradlepoint, Digi, Multi-Tech, Netcomm, Novatel, Pantech, Pepwave, Proxicast, Sierra Wireless, Sixnet/Red Lion, and many more.
5) For industrial, commercial and Internet Of Things (IOT) applications such as: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs, etc...), Mobile & Vehicles, Point-of-Sale (POS), SCADA, Telemetry, PLCs, RTUs, Digital Signage, and more.
Specification
Binding : Electronics
Brand : Proxicast
Color : Black
EAN : 0617237750778
Label : Proxicast
Manufacturer : Proxicast
Model : ANT-131-002
PackageDimensions_Weight : 0.65 pounds
PackageDimensions : L:6.60 X W:6.40 X H:3.10
ProductGroup : PC Accessory
ProductTypeName : NETWORKING_DEVICE
Publisher : Proxicast
Studio : Proxicast
Title : Vandal Resistant Low Profile 2.4 / 5.8 GHz Wi-Fi 802.11 b/g/n + ac Omni-Directional Antenna - 3-5 dBi Gain - Fixed Mount - 10 ft Coax Lead
