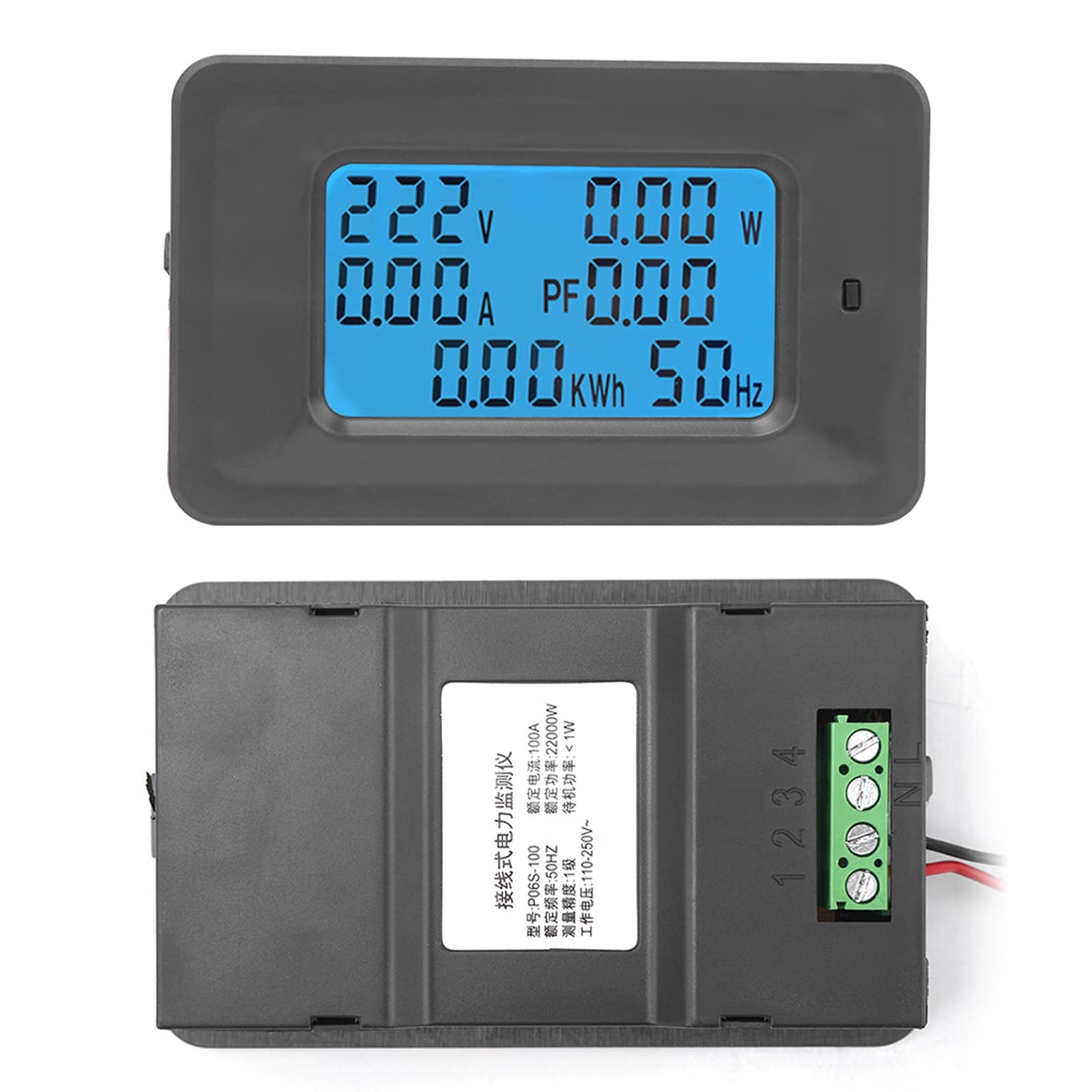

Specification Brand : Hztyyier BulletPoint1 : [ Machined ] -This 6 -in -1 -digital LCD measuring device offers precise measurement values for voltage, electricity, power, frequency and performance factor to ensure reliable measurement results. BulletPoint2 : [Large Energy Display] - With a 5 -digit energy display, you can use this measuring device to monitor the energy consumption of 0.01 to 99999KWH and help you to track and optimize your power consumption. BulletPoint3 : [Width compatibility] - This meter is designed for a frequency range of 50/60 Hz and is compatible with various electrical power supply systems. It can be easily connected to measure voltage, electricity and other electrical parameters. BulletPoint4 : [Comfortable backlit control] - The backlight can easily be controlled with a short press, which offers clear visibility in poor lighting conditions. You can switch it on or off as required. BulletPoint5 : [Simple Reset function] - Delete the energy by simply holding the button. With this comfortable reset function you can start tracking the energy consumption of zero. Color : #439 IncludedComponents : No ItemName : Hztyyier Versatile Voltage Measuring Device with Background Lighting Control 6 in 1 Digital Performance Monitor for Electrical Tests ItemPackageDimensions_Height : 3 centimeters ItemPackageDimensions_Length : 11 centimeters ItemPackageDimensions_Width : 6 centimeters ItemTypeKeyword : Multimeters Manufacturer : Hztyyier MeasurementAccuracy : 0.1mm NumberOfItems : 1 PartNumber : Hztyyierpcs4f5wukg PowerSourceType : Ac/Dc ProductDescription : 1. Energy 5-digit, 0.01 ~ kWh. 2. Compatible frequency 50/60 Hz. 3. Can be connected to the test of electrical power, voltage, electricity, etc. 4. Control of the backlight, press briefly to switch on/off the backlight. 5. Delete energy measurement, hold down button to delete the KWH measurement value.
Technical data: Description: This intelligent performance monitor has an integrated technical data lip. It has good instability and high . It shows the effective value of the voltage, the effective value of the current, the enrollment, the cumulative electrical amount, the network frequency and the performance factor in full screen mode and can be used to a large extent in civilian and industrial areas. Characteristics: Energy 5 -digit, 0.01 ~ kWh. Compatible frequency 50/60 Hz. Can be connected to the test of electrical power, voltage, electricity, etc. Back-up control, press briefly to switch on/off the backlight. Delete the energy measurement value, hold down button to delete the KWH value. Technical dataifications: Model: P06S-100 Name: 6-in-1 voltage meter . Performance: 22,000 W Nominal output: 22,000 W Standby power: . Electricity: 100 a Nominal output: 100 a Tension: 110–250 V Voltage accuracy: ± 1 % Electricity: ± 2 % Performance accuracy: ± 2 % Size: approx. 90 x 55 x 26 mm / 3.54 x 2.16 x 1.02 inches Inner diameter of the CT: approx. 12.68 mm / 0.5 inches Quantity: 1 piece Weight: 106 g Instructions for the button: 1. Click the button to switch on or off the backlight. 2. Keep the button pressed for 3 seconds to get the overload performance. 2.1 Go to the side to set the overload performance (factory setting is 4.4 kW). 2.2 Flackers in the highest position; Click 1 to add 1. Keep the button pressed for 2 seconds to move it. The maximum set value is kW. 2.3 Actual actuation of the button for 5 seconds, it ends and the data is saved. 3. If you keep the button for 5 seconds, the system is reset, the accumulated electrical amount is deleted, and the overload performance is reset to the default setting. Product instructions: 1. Six main functions are displayed in full screen mode. Background light flickers for warning of overload. If the current performance is smaller than the overload performance, the alarm is stopped. 2.P06S-20 and P06S-100 are different products that cannot be used in the same way! Because they take on different internal principles and are designed in different structures. You should use the correct cabling method according to the product. Damage to the product caused by incorrect cabling is not under the guarantee! 3. The product model P06S-100 must be connected to external counter-inductance in normal operation. The threading must follow the of the counter -inductor! No performance and no performance factor after operation indicate incorrect cabling. Please note the circuit diagram! Prevention measures: 1. The sum of the load output of the electrical device connected to the product should not exceed the nominal power, otherwise the product will be damaged and even fires can arise. 2. The product is not , so please use in a dry environment. Avoid water if you use it near a bathroom, a kitchen, a gold fishing glass, etc. Keep it away from children and fire; Do not put any foreign bodies except for cables in the connection opening. Please tighten the screw. 3. Do not disassemble the product without permission. Delivery: 1 x voltage 1 x counter -inductance (Other elements in the picture are not included) ProductSiteLaunchDate : 2025-05-08T16:34:06.924Z Size : Large test hook Style : Common SupplierDeclaredDgHzRegulation : not_applicable SupplierDeclaredHasProductIdentifierExemption : 1
