Editorial Review

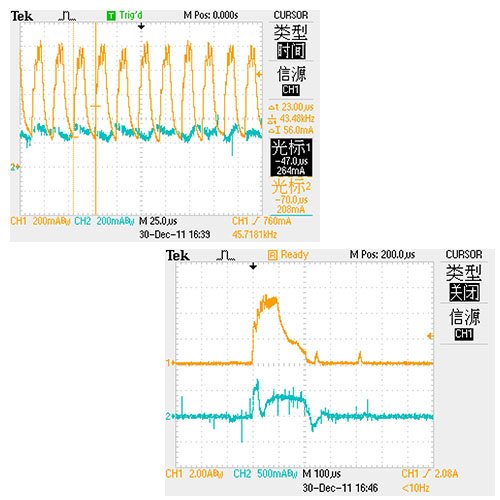

AC/DC frequency range: Up to 20 kHz Effective Measurement Range: 20mA to 650A DC It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, youË?re able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data. Power circuit measurement and malfunction analysis; Motor drive of frequency converter (or other electronics) measurement; Power electronics equipments measurement. Captured Conductor Size:9mm maximum Low Battery Indictor:red LED lighting Operating Temperature:0,,fto 50,,f70% R.H. Storage Temperature:-20,,f to +70,,f, 80% R.H. Battery Type:9V DC, NEDA 1604, 6F22,0006P Battery Life:100 hours typical with alkaline Weight:250 gm typical Dimensions:195mm(H) x 70mm(W) x 33mm(D) Output:Supplied with coil cable with straight banana plug or BNC plug.

Features
1) AC/DC frequency range: Up to 20 kHz
2) Effective Measurement Range: 20mA to 65A DC
3) Power circuit measurement and malfunction analysis
4) Motor drive of frequency converter (or other electronics) measurement
5) Power electronics equipments measurement

Specification
Binding : Automotive
Brand : Hantek
EAN : 0519240055706
Label : Hantek
Manufacturer : Hantek
Model : CC-650
PackageDimensions_Weight : 53.00 hundredths pounds
PackageDimensions : L:8.90 X W:4.40 X H:2.10
ProductGroup : Home Improvement
ProductTypeName : TOOLS
Publisher : Hantek
Studio : Hantek

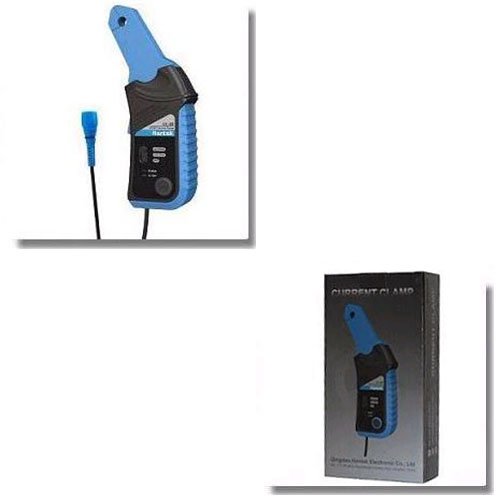

Title : Hantek AC/DC Current Clamp CC 65 Up To 20 kHz 20mA To 65A DC
