Product Information
Editorial Review

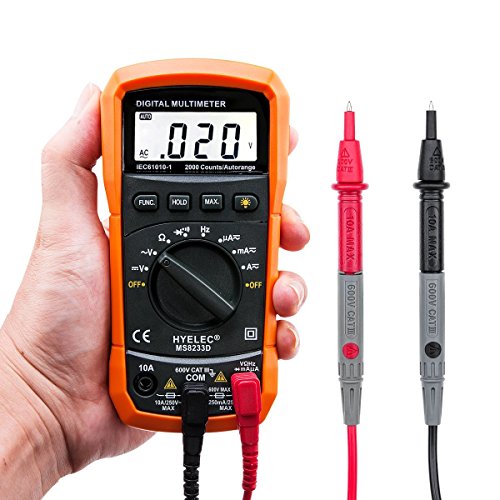

Crenova MS8233D multimeter is an Auto-Ranging Digital Multimeter*The Digital Multi Meter as general measurement tool and widely used in the school, laboratory, factory and other social field. *The equipment is used for measurement in building facilities. Examples are measurements on distribution boards, circuit breaker and industrial equipment located in fixed facilities, as a fixed motor. Crenova MS8233D multimeter is very easy to use*The convenient auto-ranging operation allows you to select the right measurement range when working on a variety of components, from small electronics to main electrical sources. *Very easy to read labels and screen makes it easy to select desired tests and the results. Technical Specifications: 1.DC Voltage: *200mV/2V/20V/200V ±(0.5%+2) *600V ±(0.8%+2) 2.AC Voltage: *2V/20V/200V ±(0.9%+3) *600V ±(1.2%+3) 3.DC Current:200μA/2000μA/20mA/200mA/10A ±(1.5%+3) 4.AC Current:200μA/2000μA/20mA/200mA/10A ±(1.5%+4) 5.Resistance: *200Ω/2kΩ/20kΩ/200kΩ ±(0.8%+2) *2MΩ/20MΩ ±(1.0%+2) 6.Frequency:20kHz ±(1.5%+5) 7.Power Supply: 9V Battery(6F22 or 1604A Type)(not included) 8.Safety Class: IEC 61010-1, CAT II 600V. Safe & Environmentally friendly*Over load protectionUse the PTC protection circuit for Resistance, and frequency measurement.*Auto Power OFFIf the meter is idle for 15 minutes (idle time), the meter automatically turns off. Warm Notice:1.Please install a new battery before usingStep 1:Remove the back cover screwStep 2:Open the back cover and install the 9V battery2.Please read relevant information carefully and observe all the warnings and note strictly. The meter can be cleaned with soft clean cloth to remove any oil, grease or grim. Do not use liquid solvent or detergent.
Features
1) *Multimeter Over load protection:Use the PTC protection circuit for Resistance, and frequency measurement.

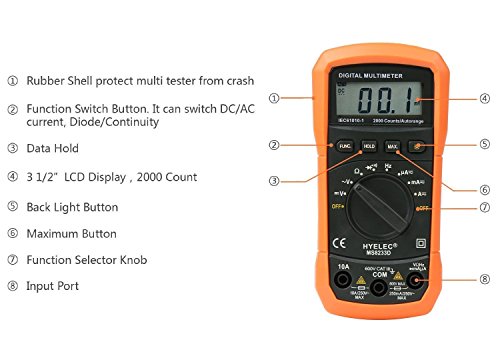

2) *Digital Multimeter 3 1/2 digit LCD display with back light makes the reading clear.

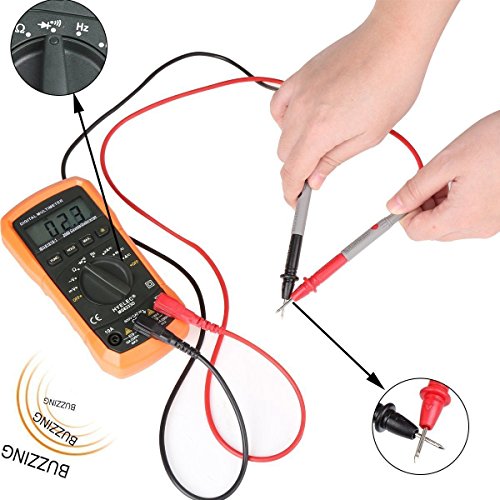

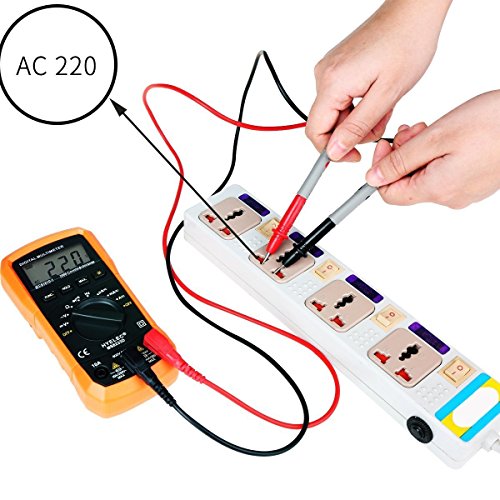

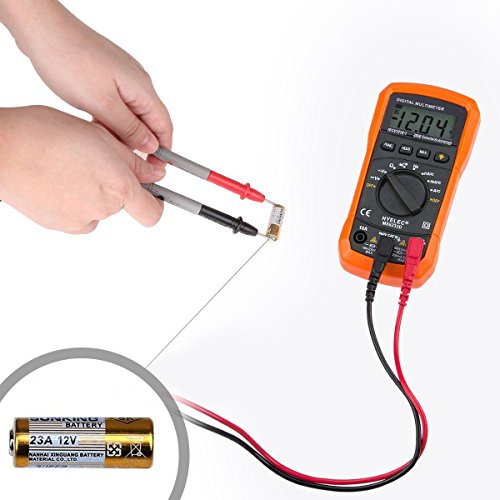

3) *Electrionic meter can measure AC/DC voltage, AC/DC current, resistance, frequency, continuity, diode and etc.

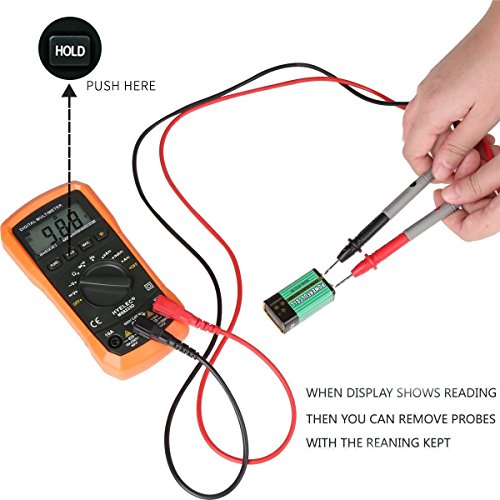

4) *Measuring Instrument with function of data hold, Maximum Value hold, backlight, function switching.
5) *Portable multimeter,Auto Power OFF: If the meter is idle for 15 minutes (idle time), the meter automatically turns off. After auto power-off, pushing any of the push button or changing the rotary switch can turn on the meter again. (Note: it needs install a new battery before using; there maybe a little corlor difference)
Specification
Binding : Tools & Home Improvement
Brand : Crenova
Color : Orange
EAN : 0733520898351
Model : LFUBEM0137EFBANS
PackageDimensions_Weight : 70.00 hundredths pounds
PackageDimensions : L:6.42 X W:5.20 X H:2.20
ProductGroup : BISS
ProductTypeName : HOME_LIGHTING_ACCESSORY
Size : 13*9*4 cm
Title : Digital Multimeter, Crenova MS8233D Auto-Ranging Digital Multimeters Electronic Measuring Instrument AC Voltage Detector Portable Amp / Ohm / Volt Test Meter Multi Tester w/ Diode and Continuity Test Scanners Home Use Electronic DIY Hand Tools with Backlight LCD Display
