Specification
Brand : SUOFEILAIMU-PHONE CASE
BulletPoint1 : Structure: disc
BulletPoint2 : Material: Aluminium
BulletPoint3 : Installation: set screw / clamp
BulletPoint4 : Material of Disc: SUS304 stainless steel
BulletPoint5 : Hard anodizing
ExternallyAssignedProductIdentifier : 8306045794679

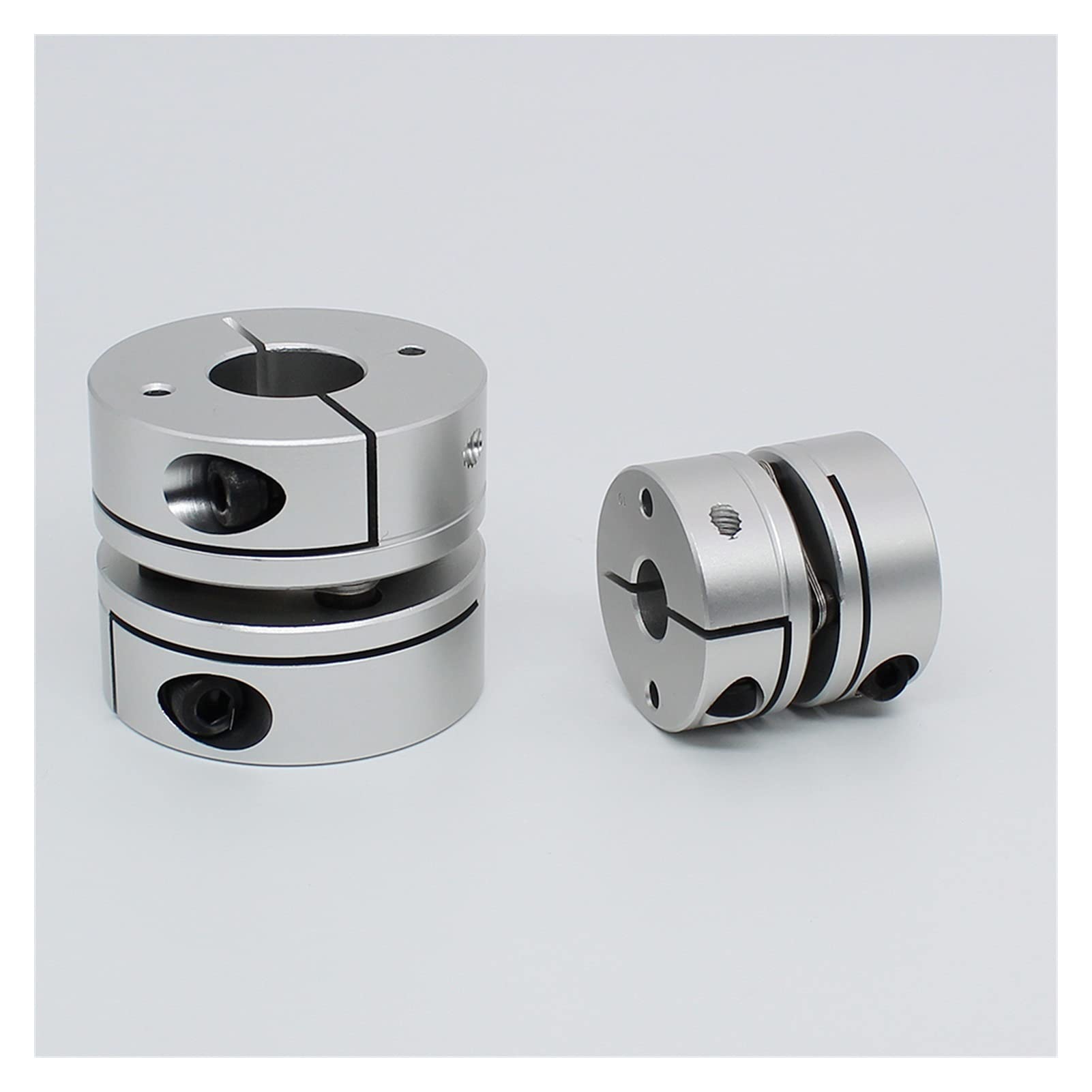

ItemName : SUOFEILAIMU-PHONE CASE Metal Coupler Single Disc Coupler D50 L44 Flexible Diaphgram Coupling Elastic Joint for Stepmotor (Inner Diameter : 12x16)
ItemPackageQuantity : 1
ItemTypeKeyword : multi-flex-couplings
Manufacturer : SUOFEILAIMU-US
Material : Metal
MetalType : Aluminum
NumberOfItems : 1
PartNumber : SUOFEILAIMU-123
ProductDescription : Zero Backlash
Integrated structure
Fit for: For servomotor/stepmotorInner diameter: 8mm to 22mm
LD1-B-D20L20 20 20 3-8 M3.0 8.9 3.3 2.2 1.2
LD1-B-D26L26 26 26 4-12 M3.0 11.4 3.9 3.2 1.2
LD1-B-D34L33 34 33 5-16 M4.0 14.5 5.5 4 2.5
LD1-B-D40L35 40 35 6-19 M4.0 14.5 5.5 6 2.5
LD1-B-D45L35 45 35 8-22 M4.0 14.5 5.5 6 2.5
LD1-B-D50L44 50 44 8-22 M4.0 19 7.5 5 2.5
LD1-B-D56L45 56 45 10-32 M5.0 20 7 5 5
LD1-B-D68L54 68 54 12-35 M6.0 24 8 6 8
LD1-B-D82L68 82 68 14-42 M8.0 31 11 6 20
Technical parameter
Model Max bore
(mm) Rated Torque (n.m) Max Torque (n.m) Max speed (rpm) Moment of Inertia
(kg.m^2) Permissible parallel misalignment
(mm) Permissible angular misalignment (degree) Weight (g)
LD1-B-D20L20 8 1 2 30000 2.9*10^-7 0.02 1 11
LD1-B-D26L26 12 2 4 25000 1.1*10^-6 0.02 1 28
LD1-B-D34L33 16 4.2 8.4 18000 4.0*10^-6 0.02 1 55
LD1-B-D40L35 19 8 16 16000 9.8*10^-5 0.02 1 81
LD1-B-D45L35 22 10 20 14000 1.6*10^-5 0.02 1 99
LD1-B-D50L44 22 12 24 12000 2.0*10^-5 0.02 1 135
LD1-B-D56L45 32 25 50 11000 6.2*10^-5 0.02 1 217
LD1-B-D68L54 35 60 120 9000 1.6*10^-4 0.02 1 345
LD1-B-D82L68 42 80 160 7000 4.2*10^-4 0.02 1 689
ProductSiteLaunchDate : 2021-04-08T06:36:28.878Z
Size : 12x16
Style : Flexible
