Specification
Brand : Wavtech
BulletPoint1 : High Power Output: Delivers 670W x 2 at 1 Ohm, 450W x 2 at 2 Ohms, and 250W x 2 at 4 Ohms, ensuring powerful sound performance.
BulletPoint2 : Versatile Configuration: Supports both dual-channel and bridged setups, providing up to 1380W at 2 Ohms in bridged mode.
BulletPoint3 : Advanced Filtering: Features adjustable low pass and high pass filters (LPF: 50-20000 Hz, HPF: 15-1000 Hz) for precise sound tuning.
BulletPoint4 : Compact Design: Sleek and compact dimensions (6.8" x 6.3" x 2.5") make it easy to install in any car audio system.
BulletPoint5 : Superior Sound Quality: High signal-to-noise ratio (≥ 100 dB) and damping factor (≥ 260) ensure crystal-clear audio output.
Color : Gray
ExternallyAssignedProductIdentifier : 4650185706059
ExternallyAssignedProductIdentifier1 : 700987201468
ExternallyAssignedProductIdentifier2 : 0700987201468
IncludedComponents : (1) Deaf Bonce AAB-600.2D Amplifier (1) Bass Knob

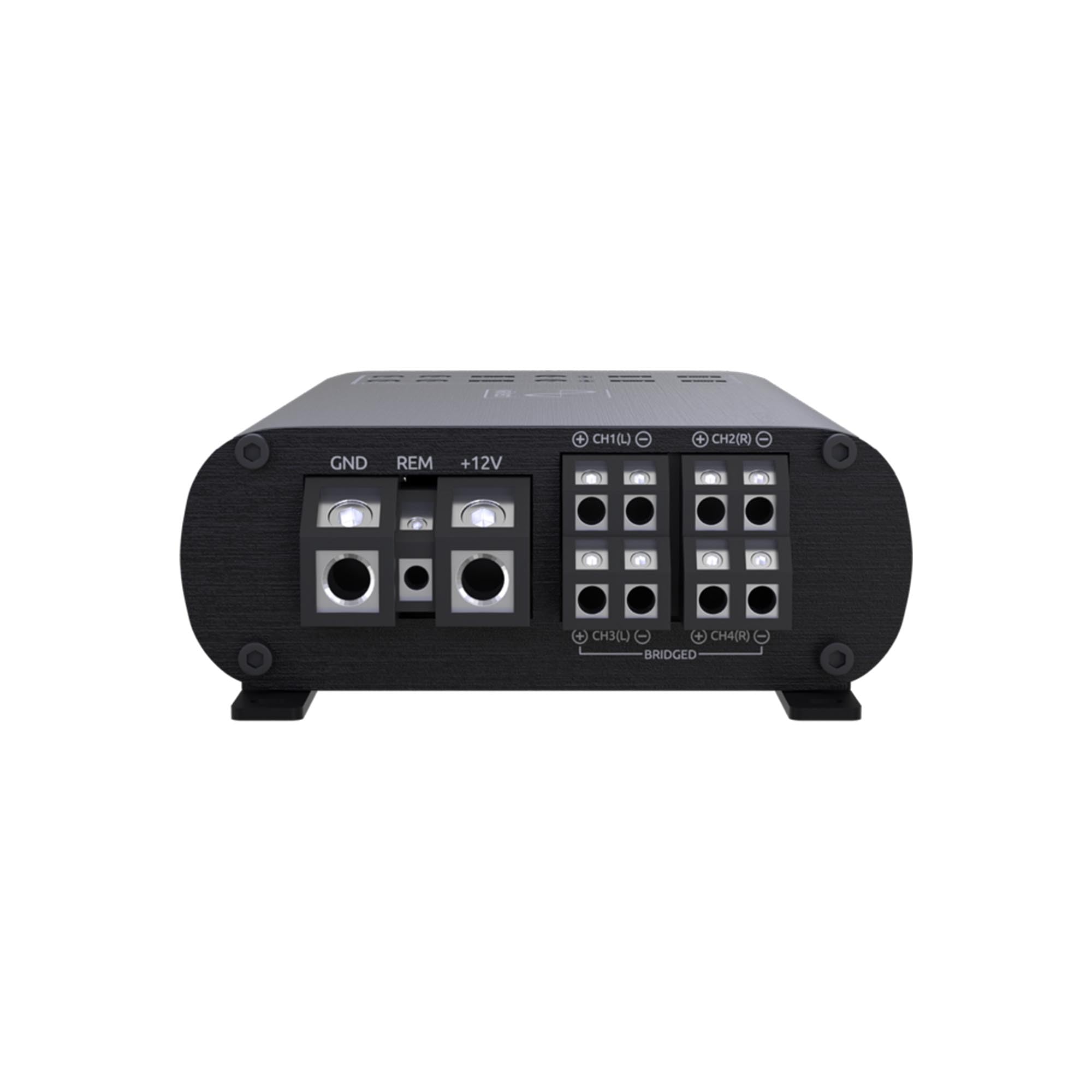

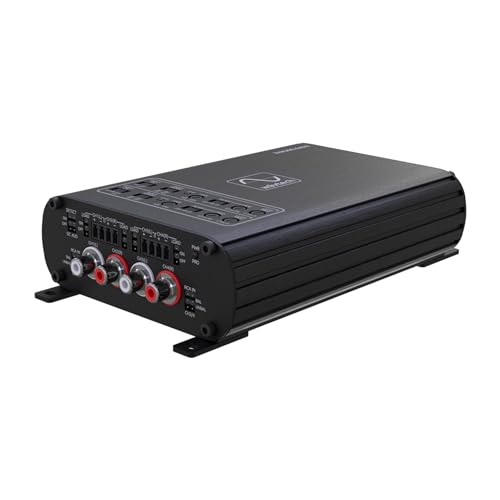

ItemName : Wavtech link300.4mini - 300 Watt 4-Channel Amplifier
ItemPackageDimensions_Height : 3 inches
ItemPackageDimensions_Length : 8.3 inches
ItemPackageDimensions_Width : 6 inches
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Manufacturer : Wavtech
MaximumSupplyVoltage : 15 volts_of_direct_current
MinimumSupplyVoltage : 12 volts
ModelName : MM900.6V
ModelNumber : link300.4mini
MountingType : Surface Mount
NumberOfChannels : 2
NumberOfItems : 1
OutputPower : 670 watts
PackageTypeName : Integrated Packaging
PartNumber : link300.4mini
ProductDescription : The link300.4mini is in a class by itself. The most obvious thing is its extremely small size, but don’t Iet that fool you. Unlike most small footprint amplifiers, the link300.4mini is bridgeable. It can easily drive a nice set of components as well as a subwoofer. The link300.4mini has Wāvtech’s best in class LOC, with built-in loading and the ability to handle up to 40V of hi-level input.

Perhaps the most unique feature is the built-in summing. For factory audio systems that don’t have a full range signal, the link300.4mini can handle that internally, so no additional processor is required. The level trim adjustment allows for fine tuning the output of each pair of channels. As if all of that isn’t enough, the link300.4mini is compatible with OEM start/stop systems as well.

link300.4mini Features
300 Watt 4-Channel Amplifier
50 watts x 4 @ 4 ohms
75 watts x 4 @ 2 ohms
150 watts x 2 @ 4 ohms BTL
Small Footprint Only 6.4”x4.5”x1.65”
Variable Hi/Low Pass Crossover (-12dB/oct)
Built-In Summing w/Level Trim Adjustment
Start/Stop Sytem Compatible
Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Adaptive OEM Load Technology
Locking Detachable Hi-Level Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs

link300.4mini Specifications
Input Sensitivity
SPK: 1-20Vrms, 2-40Vrms
RCA: 0.2V-5Vrms, 0.4V-10Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to >45kHz (+0/-3dB)
THD+N: <1% at rated power
S/N: >80dBA (1W, 4Ω)
ProductSiteLaunchDate : 2023-10-04T16:53:41.801Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 52161547
Voltage : 12 volts
Wattage : 600 watts
