Specification
Brand : Diamond Audio Technology
BulletPoint1 : Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance | 4-Layer PCB Board with Balanced Differential Inputs | Full-Range Digital Class D IR Chipset | “SNAP” Capacitors used Throughout Circuit Audiophile Grade High Tolerance Components | Spring Steel FET Clips Provide Cleaner Board Design
BulletPoint10 : Color: Black Also Available in White Dimensions: 5.27"W x 9.44"L x 1.75"H
BulletPoint2 : Illuminated Logo/Fully Concealed Mounting | Output Clip Indicators for Precise System Set Up | Fine-Tuned Fully Variable Crossover and Phase Control | Top Mounted Controls for Convenient Amplifier
BulletPoint3 : Power Supply: Full PWM | Power Supply Threshold: 10.0VDC-170VDC | Idle Current: (0.7A) | Distortion: THD 4(1KH@4Ω) : 0.06% | S/N Ratio(A weighted@1W): -80dBA | S/N Ratio(A weighted@FP): .95dBA | Input Sensitivity: Low Input Level: 200mV-5.0V | High Input Level: N/A | Input Impedance: Low Input Level: 20 KΩ | High Input Level: N/A
BulletPoint4 : Damping Factor(50Hz@4Ω): >250 | Bandwidth(-3dB): 10Hz-35KHz | Crossover(-12/24dB/Oct) | Variable High-Pass: 40Hz-400Hz(-12dB Ch1/2/3/4) | Variable Low-Pass: 30Hz-300Hz(-12dB Ch 5) | Variable Sub-Sonic: 10-55Hz @ 18 dB | Fuse Ratings: ATC: 40A X 2
BulletPoint5 : Dimensions: Length x Width x Height(Inches): 14.25" x 7.67" x 2" | Length x Width x Height(mm): 362 x 195 x 51.5
BulletPoint6 : Heavy duty aluminum alloy heat-sink Advanced rollback heat protection
BulletPoint7 : Input sensitivity: Low level: 0.2mV-10.0V High level: Up to 25W RMS
BulletPoint8 : Frequency Response: 10 - 33,000 Hz Total Harmonic Distortion (THD): 0.07% Signal to Noise Ratio: -77.4dBA
BulletPoint9 : Variable high-pass filter: 40 - 400 Hz, 24 dB/octave Variable low-pass filter: 40 - 400 Hz, 24 dB/octave 8 gauge power and ground wiring is recommended for installation.
ExternallyAssignedProductIdentifier : 7025881435201
ExternallyAssignedProductIdentifier1 : 0609483052997
ExternallyAssignedProductIdentifier2 : 609483052997
ExternallyAssignedProductIdentifier3 : 00847169024290

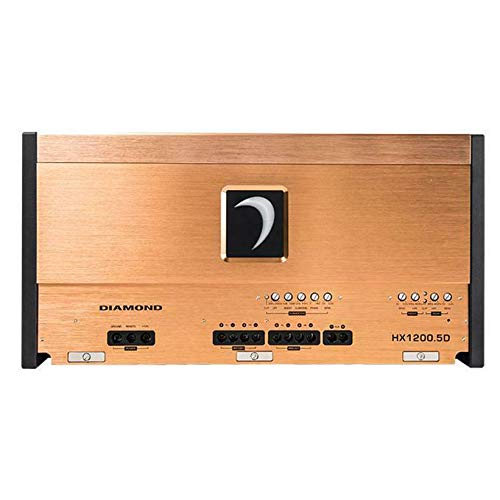

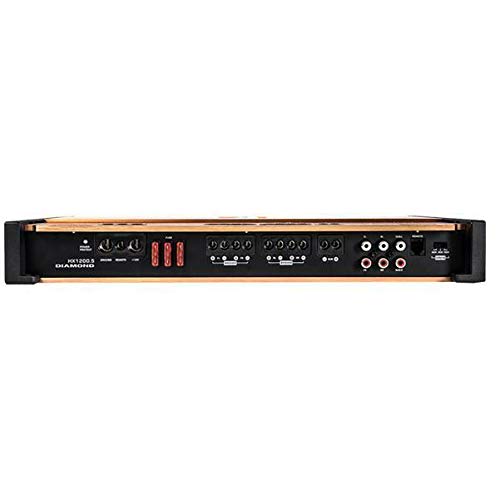

ItemName : Diamond Audio HX1200.5 1200 Watt RMS 5 Channel Class D Full Range HEX Series Amplifier
ItemPackageDimensions_Height : 43.6 centimeters
ItemPackageDimensions_Length : 8.2 centimeters
ItemPackageDimensions_Width : 27.1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Manufacturer : Diamond Audio
MaximumSupplyVoltage : 14 volts
ModelName : XMA-5900IR
ModelNumber : HX1200.5
MountingType : Surface Mount
NumberOfChannels : 5
NumberOfItems : 1
OutputPower : 1200 watts
PackageLevel : unit
PackageTypeName : Box
PartNumber : HX1200.5
ProductDescription : DIAMOND AUDIO HX1200.5 1200W RMS COMPONENT SPEAKERS TWEETERS SUBWOOFER AMPLIFIER RMS Power Rating: -RMS Power (4Ω): 100 W X 4 / 480 X 1 -RMS Power (2Ω): 150 W X 4 / 800 x 1 -Bridged(mono 4Ω): 480 W X 1(sub output) -Bridged(mono 2Ω): 800 W X 1(sub output) -Bridged(stereo 4Ω): 300 W X 2(4Ω) / 800 X 1(2Ω)
ProductSiteLaunchDate : 2016-09-30T22:14:56.105Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 52161547
Voltage : 5 volts
Wattage : 150 watts
