Specification
Brand : HCYHSLH
BulletPoint1 : 48V 750W Electric Dc Motor Kit: The brushless motor has a power of 750 watts and a torque of 2.56 N.m. The powerful power can provide enough power for your electric tricycle, and its 5.44 N.m torque can let you climb hills easily.
BulletPoint2 : Three-speed Adjustable: The brushless motor's rated speed of 516rpm and a no-load speed of 3100rpm provide enough running speed for your e-bike. It also has three adjustable speeds: high, medium, and low to suit different needs.
BulletPoint3 : Excellent Load Capacity: With this high efficiency, energy saving, and stable performance permanent magnet brushless motor, your electric tricycle can carry a load of about 661 pounds, which gives you peace of mind to load people or goods.
BulletPoint4 : Waterproof and Dustproof: The motor with IP65 protection level can effectively prevent splashing water and dust from entering and causing damage, which greatly improves the durability of the product and extends its service life.
BulletPoint5 : High Efficiency and Energy-saving: The efficiency of a permanent magnet brushless motor with a no-load speed of 3100RPM is greater than or equal to 83%, which is more energy-saving and efficient than the excitation-type motor.
Color : Blue
ExternallyAssignedProductIdentifier1 : 0753781770876
ExternallyAssignedProductIdentifier2 : 753781770876
IncludedComponents : 1*Motor 1*Controller

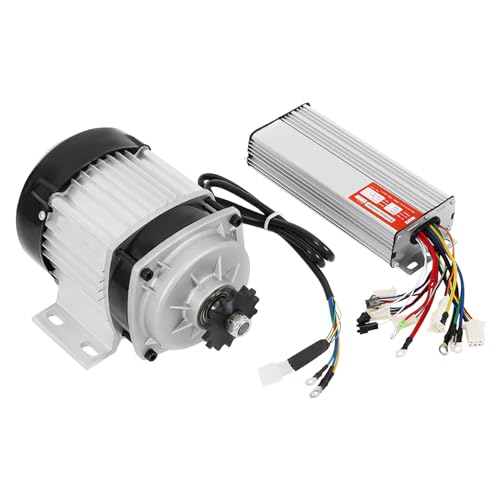

ItemName : Tricycle Brushless Motor, 48V 750W Electric Dc Motor Kit, 3100RPM no-Load Speed Rated Speed Permanent Magnet Brushless Tricycle E-Bikes DIY Electric Scooters Motors W/Controller
ItemPackageDimensions_Height : 40 inches
ItemPackageDimensions_Length : 30 inches
ItemPackageDimensions_Width : 20 inches
ItemTypeKeyword : sports-scooter-motors
Manufacturer : HCYHSLH
Material1 : Aluminum
Material2 : Copper
MetalType : other
ModelName : Tricycle Brushless Motor
ModelNumber : ZXL-4
NumberOfItems : 1
PartNumber : 46846548464
ProductDescription :

Description

The permanent magnet brushless motor carefully built with pure copper coil and aluminum case can provide 750 watts of superpower and greater than or equal to 83% high efficiency for tricycles. Meanwhile, the permanent magnet brushless motor without brush loss and excitation power is easy to maintain and energy-saving. This powerful, stable, and low-noise permanent magnet brushless motor is a good partner for your scooter, e-bike, go-kart, electric bike, electric tricycle, etc.

Details

Thickened Base: The thickened base can support the motor well to prevent shaking, which greatly enhances the safety for you to use with peace of mind.

Heat Dissipation Windshield: The back cover of the machine is hollowed out to increase its heat dissipation capacity, which can effectively increase the length of use of the motor.

Smooth Output Shaft: The smooth and delicate output shaft can protect your hands from scratches during installation. And the smooth output shaft can reduce friction to reduce noise.

Application

 It is suitable for tricycles, e-bikes, electric scooters, medium size tricycles, etc.

Specification

Gross Weight: 6.1kg/13.44lbs

Package Size: 40*30*20cm/15.74*11.8*7.9in

Controller

Matching Motor: 48V 750W

Rated Voltage: 48V DC

Under Voltage Protection: 42±0.5 V

Speed Regulator (Throttle): 1-4 V

Material: Aluminum, Copper

Motor Type: Pure Copper Motor

Rated Voltage: 48V DC

Output: 750W

Rated Current: 15A

No Load Current: ≤3.0A

Rated Speed: 516RPM

No Load Speed: 3100RPM

Gear Ratio: 1:6

Drive Sprocket: 420-14T

Rated Torque: 2.56 N.m

Efficiency: ≥83%

Max. Load-bearing Capacity: About 300kg/661lbs

Protection Level: IP65

Speed Gears: High, Medium, Low

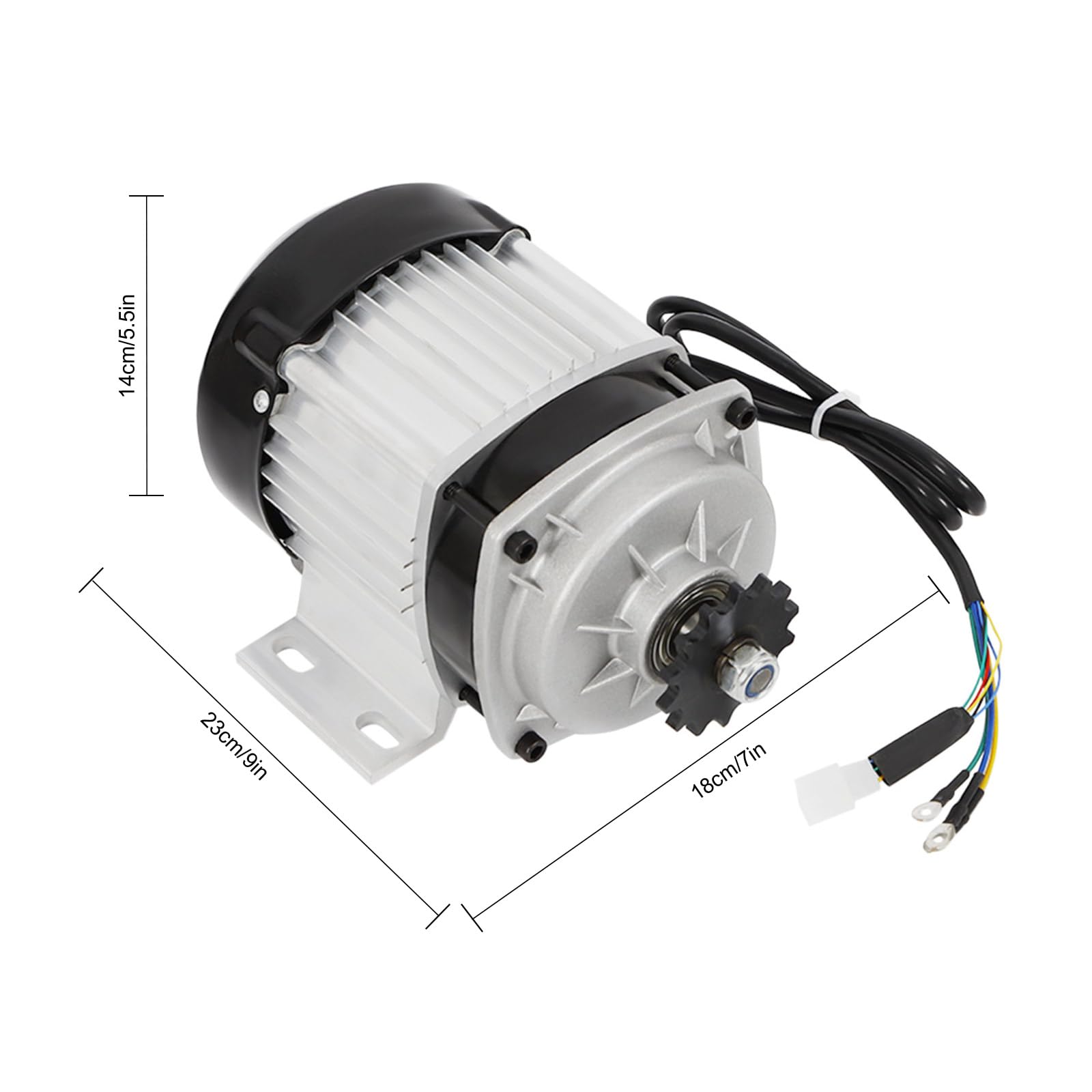

Motor Size: 23*18*14cm/9*7*5.5in

Motor Net Weight: 5.2kg/11.46lbs

Package Included

1*Motor

1*Controller



Notes

1.Please check the connector type, motor size, and specs before ordering.

2.The speed decreases according to the load.

3.The lower the rated speed, the better the motor life.

4.Battery and charger are not included.

5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.

ProductSiteLaunchDate : 2025-06-13T04:56:27.661Z
Size : 1 pc
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 25172500
Voltage : 48 volts
WarrantyDescription : 3 months.
Wattage : 750 watts
WebsiteShippingWeight : 5 kilograms
