Specification
Brand : JINHZIXIU
BulletPoint1 : 【High Precision】The oil pan, stator, rotor pair, and output shaft inside ensure the high precision of the hydraulic gerotor motor and make your use more accurate. Part Number: 101-1008-009.
BulletPoint2 : 【Base】 The base with 7 support legs can effectively maintain stability during the process. Material: Cast Iron, Rubber. Displacement: 200cm³/12.2in³/r. Oil Port: G1/2".
BulletPoint3 : 【Careful Design】The bearings make the 101-1008-009 hydraulic motor have a strong radial force. Good Sealing Performance: The rubber sealing ring can effectively avoid oil leakage, not only ensuring a smooth use process but also saving you cost.
BulletPoint4 : 【Powerful Function】As an executive component of the hydraulic system, the motor can effectively convert the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft, thus providing sufficient energy.
BulletPoint5 : 【Application】It applies to industrial, logistics, agricultural, refitting, engineering machinery, industrial machinery, construction machinery, shipbuilding and aviation, harvester equipment, excavator equipment, light machinery equipment, various types of automobiles, and more.
BulletPoint6 : Excitation method: permanent magnet
Color : black
ConnectorType : Adapter
ExteriorFinish : Carbon Steel
ExternallyAssignedProductIdentifier1 : 0784910509043
ExternallyAssignedProductIdentifier2 : 784910509043
IncludedComponents : 1 x Hydraulic Motor

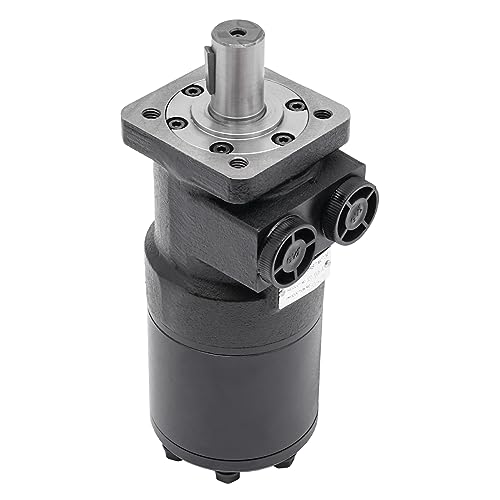

ItemName : JINHZIXIU Hydraulic Gerotor Motor 101-1008-009 Hydraulic Motor for Eaton Char-Lynn H Series Char-Lynn Hydraulic Motor Replacement
ItemPackageDimensions_Height : 5.12 inches
ItemPackageDimensions_Length : 10.24 inches
ItemPackageDimensions_Width : 5.12 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-motors
Manufacturer : Showun
Material : Cast Iron, Rubber
ModelName : Hydraulic Gerotor Motor
ModelNumber : 101-1008-009 Hydraulic Motor
NumberOfItems : 1
NumberOfPieces : 5
PartNumber : 101-1008-009 Hydraulic Motor
PowerSourceType : Solar Powered
ProductDescription :

Specification

● Part Number: 101-1008-009

● Material: Cast Iron, Rubber

● Surface Treatment: Painting

● Number of Items: 1

● Assembly Required: Yes

● Mount Type: Mechanical Equipment

● Displacement: 200cm³/12.2in³/r

● Oil Port: G1/2"

● Net Weight: 7.4kg/16.31 lbs

● Gross Weight: 8kg/17.64 lbs

● Package Size: 26x13x13cm/10.24x5.12x5.12inch

● Overall Size: 8.4x8.4x24.5cm/3.31x3.31x9.65inch

Package Included

1 x Hydraulic Motor

Note

● We recommend that the normal operating oil temperature is 68-140℉, and the maximum system operating temperature is 194℉ (not more than one hour). The kinematic viscosity of the oil at 104℉ is 42-74mm²/s. The hydraulic oil can be selected according to the actual working and ambient temperature.

● We recommend that the filter precision be 10-30 microns. It is better to add a magnetic block at the bottom of the oil tank to avoid metal chips from entering the system.

● The motor can be used in series or parallel. When the back pressure exceeds 10MPA (the rotating speed is lower than 200RPM), the external drain port must be used for pressure relief. It is better to connect the external drain port directly to the oil tank.

● To make the motor have a long service life, the best working condition of the motor should be 1/3-2/3 of the rated working condition. When loading the motor, it should be operated at 30% of the rated pressure for about 1 hour. In any case, before loading the motor, please ensure that the motor is filled with oil.

ProductSiteLaunchDate : 2024-08-27T07:13:41.336Z
Size : Size 1
Style : fashion
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26101300
Voltage : 1 volts
