Specification
Brand : SHOUMANUAL
BulletPoint1 : Interchange Part Number: 5102682YP
BulletPoint2 : Max. Flow: 70L/18.49gal/min; Max. Power: 17.5KW; Max. Torque: 700N·m; Max. Speed: 290rpm; Max. Pressure: 20MPa
BulletPoint3 : S-type three bearings enhances radial load-bearing capacity and high-pressure resistance performance.
BulletPoint4 : Three-layer sealing ring provides excellent sealing performance, effectively preventing hydraulic oil from flowing out, protecting the motor
BulletPoint5 : Applicable Models: Compatible with F-e-rr-i-s IS500Z 61 inch, 52 inch, 44 inch; IS2500Z 61 inch, 52 inch; IS2000Z 61 inch, 52 inch; IS1500ZX 61 inch, 52 inch; IS1500Z 52 inch, 48 inch, 44 inch
ExternallyAssignedProductIdentifier1 : 0769092459645
ExternallyAssignedProductIdentifier2 : 769092459645
IncludedComponents : Hydraulic Wheel Motor

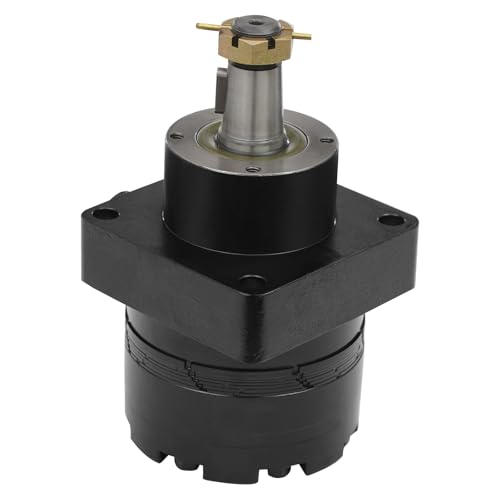

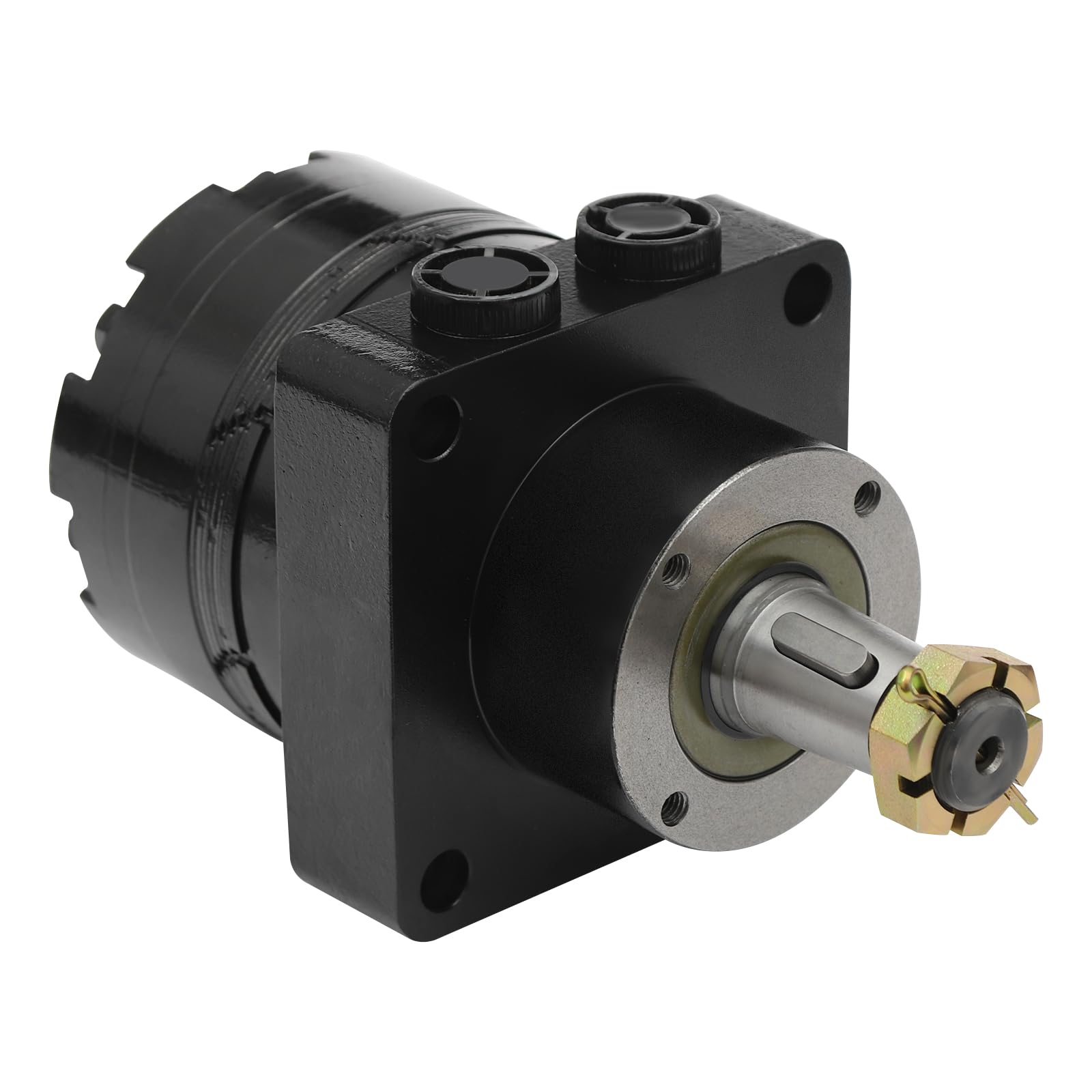

ItemName : Hydraulic Wheel Motor 5102682YP Compatible with F-e-rr-i-s IS500Z IS2500Z IS2000Z IS1500ZX IS1500Z, High Torque Max 290rpm 20MPa
ItemTypeKeyword : hydraulic-motors
Manufacturer : JNLASEER
NumberOfItems : 1
PartNumber : GY426D-000800-SHML
ProductDescription :

Specifications

Interchange Part Number: 5102682YP

Compatible Equipment Type: Universal

Material: Cast Iron

Process: Painting

Color: Black

Type: Hydraulic Motor

Installation Location: Depend on the Equipment

Way of Use: Direct Replacement

Max. Flow: 70L/18.49gal/min

Max. Power: 17.5KW

Max. Torque: 700N·m

Max. Speed: 290rpm

Max. Pressure: 20MPa

Net Weight: 13.5kg/29.76 lbs

Gross Weight: 14kg/30.86 lbs

Package Size: 32*17*17cm/12.6*6.7*6.7in

Applicable Models:

For F-e-rr-i-s IS500Z 61 inch

For F-e-rr-i-s IS500Z 52 inch

For F-e-rr-i-s IS500Z 44 inch

For F-e-rr-i-s IS2500Z 61 inch

For F-e-rr-i-s IS2500Z 52 inch

For F-e-rr-i-s IS2000Z 61 inch

For F-e-rr-i-s IS2000Z 52 inch

For F-e-rr-i-s IS1500ZX 61 inch

For F-e-rr-i-s IS1500ZX 52 inch

For F-e-rr-i-s IS1500Z 52 inch

For F-e-rr-i-s IS1500Z 48 inch

For F-e-rr-i-s IS1500Z 44 inch

Package Included

1 X Hydraulic Motor

Notes

1.We strongly recommend professional installation.

2.Please note that the motor is not allowed to be used at maximum speed and maximum pressure at the same time.

3.Please note that #68 antiwear hydraulic oil (not included) is recommended in the use of hydraulic motors.

4.Please note that the maximum temperature of the hydraulic system should not exceed 176℉.

5.The triaxial seal can withstand a back pressure of 10 MPa, and it is recommended that the motor back pressure not exceed 5 MPa. More than 5 MPa is recommended for sis external drain oil pipe.

6.Please note that the motor should be ensured that the chamber is always filled with hydraulic oil before and during operation so that the motor is well lubricated and cooled.

7.It is strongly recommended that the motor be run at 30% load for approximately one hour before running at full load to allow the motor to be fully broken in.
