Specification
Brand : Emmliy
BulletPoint1 : Strong Power: The high power of 9KW, 14.53gal/min flow rate, and speed of 165rpm deliver great torque (360N·m), allowing this product to be used on various types of heavy machinery
BulletPoint2 : Build to Last: The cast iron and exquisite painting and high-temperature quenching processes give this product great sturdiness and durability and make it resistant to corrosion, rust, abrasion
BulletPoint3 : Carefully Designed: It adopts a column-mounted fixed rotor design, featuring low starting pressure, forward and reverse steering, adjustable speed, controllable torque, and smooth and powerful rotation
BulletPoint4 : Sealing Performance: The 3-layer oil seal is resistant to high temperature and abrasion, providing good sealing performance for the product, which can effectively prevent the hydraulic oil from flowing out
BulletPoint5 : Thoughtful Design: The product adopts S-type three bearings, and the output shaft is treated with carbonitriding and cyaniding processes, ensuring high radial force, high-pressure resistance
IncludedComponents : 1*Hydraulic Motor

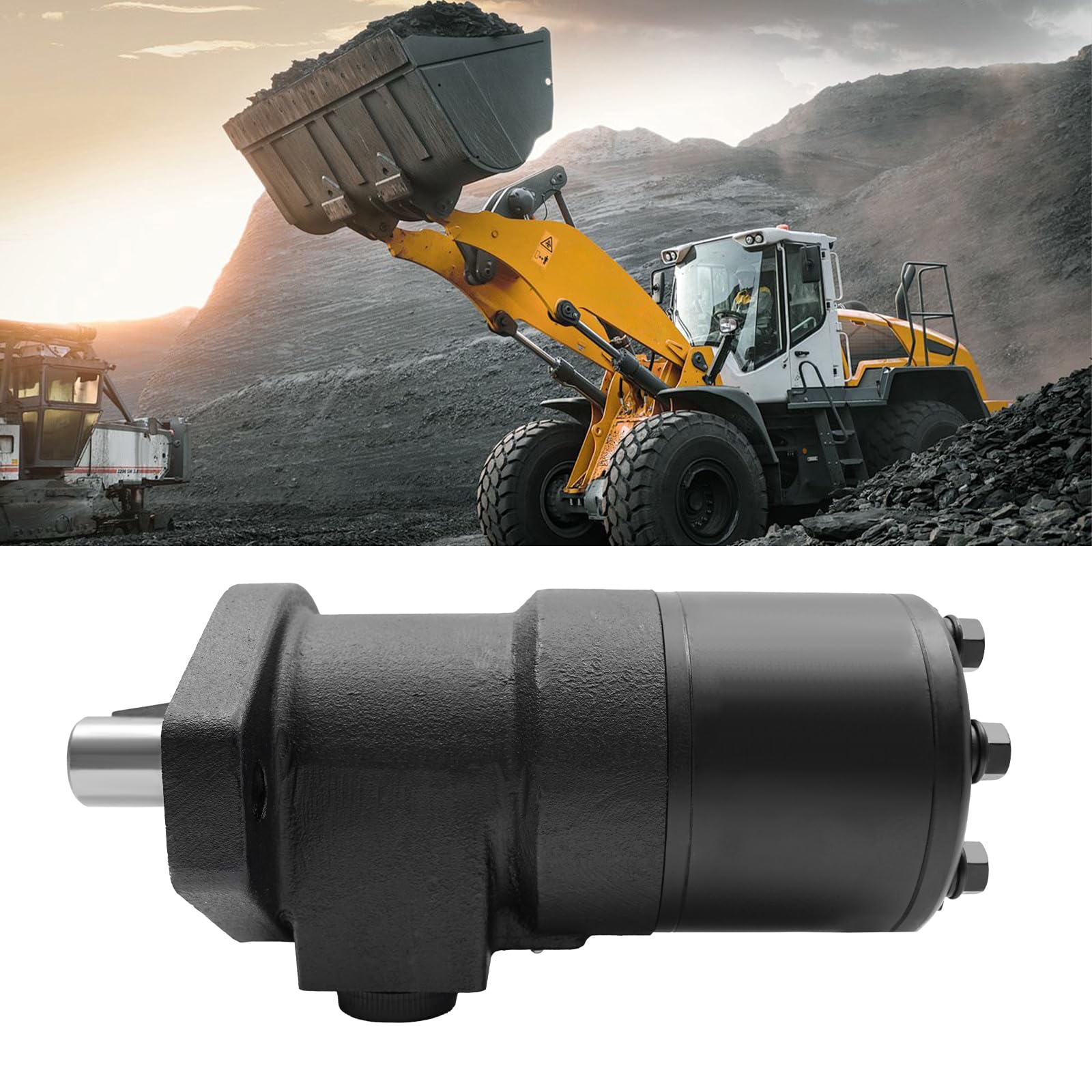

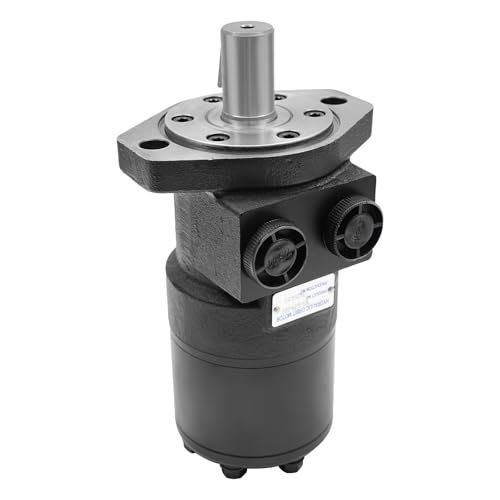

ItemName : Hydraulic Motor Replacement 101-1039-009 Compatible for Eaton Char-Lynn 2000 Series, 9KW 360N·m 165RPM
ItemPackageDimensions_Height : 10.24 inches
ItemPackageDimensions_Length : 5.12 inches
ItemPackageDimensions_Width : 5.12 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-motors
Manufacturer : Emmliy
Material : Cast Iron
ModelName : Hydraulic Motor
ModelNumber : 101-1039-009
NumberOfItems : 1
PartNumber : Hydraulic Replacement Motor
ProductDescription :

Notes

1. Please check the size carefully before ordering. Please note that this product does not include hydraulic oil.

2. The normal operating oil temperature of this product is 68-140℉, and the maximum system operating temperature is 194℉ (not more than 1 hour).

3. Filter filtration accuracy is 10-30 microns, and it is better to add a magnetic block at the bottom of the oil tank to stop metal chips from entering the system.

4. Please select the appropriate hydraulic oil according to the actual operation and ambient temperature. The oil viscosity at 104°F is 42-74mm²/s.

5. When used in series or parallel, the external drain must be used for pressure relief if the back pressure exceeds 10MPa (the rotating speed is lower than 200rpm). It is better to connect the external drain directly with the oil tank.

6. To ensure a long service life of the motor, it should be operated at 30% of the rated pressure for about 1 hour before adding load to the motor. Before adding load to the motor under any circumstances, ensure that the motor is filled with oil.

Specifications

Color: Black

Material: Cast Iron

Assembly Required: No

Process: Painting, High-temperature Quenching, Carbonitriding, Cyaniding

Rated Flow: 55L/14.53gal/min

Rated Displacement: 300CC

Rated Power: 9KW

Rated Torque: 360N·m

Rated Speed: 165rpm

Rated Pressure: 8.5MPa

Product Size(L*H): 13.39*19.4cm/5.27*7.64in

Package Size: 26*13*13cm/10.24*5.12*5.12in

Gross Weight: 9.5kg/20.94lbs

Net Weight: 8.2kg/18.08lbs

Package Included

1*Hydraulic Motor

ProductSiteLaunchDate : 2024-09-21T08:57:13.409Z
Speed : 165 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26101300
Wattage : 9 kilowatts
