Specification
Brand : MuChaIOAK
BulletPoint : Antunes 4000212 Drive Motor Kit, 120V, 9RPM
BulletPoint1 : 【Hydraulic Motor Diamond Flange】It is made of cast iron and rubber, and adopts painting process, which makes the whole product corrosion-resistant, wear-resistant, high-temperature resistant, sturdy, and stable, and can maintain its practicality for a long time.
BulletPoint2 : 【High Precision】The oil pan, stator, rotor pair, and output shaft inside ensure the high precision of the product and Equipped with three layers of rubber sealing rings, it greatly enhances its sealing performance and can effectively prevent oil leakage, making your user experience better.
BulletPoint3 : 【Strong Power】High speed (BMR-200: 284rpm(continuous), 339rpm(discontinuous); and high torque ( BMR-200: 285N * M (continuous) 319N * M(discontinuous) bring you stronger power, thus improving your efficiency and the bearing has strong radial force and high pressure resistance, which can effectively extend the service life of the product.
BulletPoint4 : 【Powerful Function】As an executive component of the hydraulic system, the motor can effectively convert the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft, thus providing sufficient energy.
BulletPoint5 : 【Easy to Clean】The simple structure, small body, and smooth surface allow you easily clean the dust with a soft towel and water.
IncludedComponents : 1* Hydraulic Motor

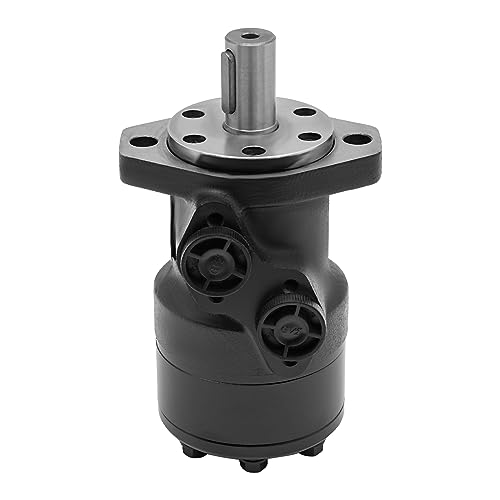

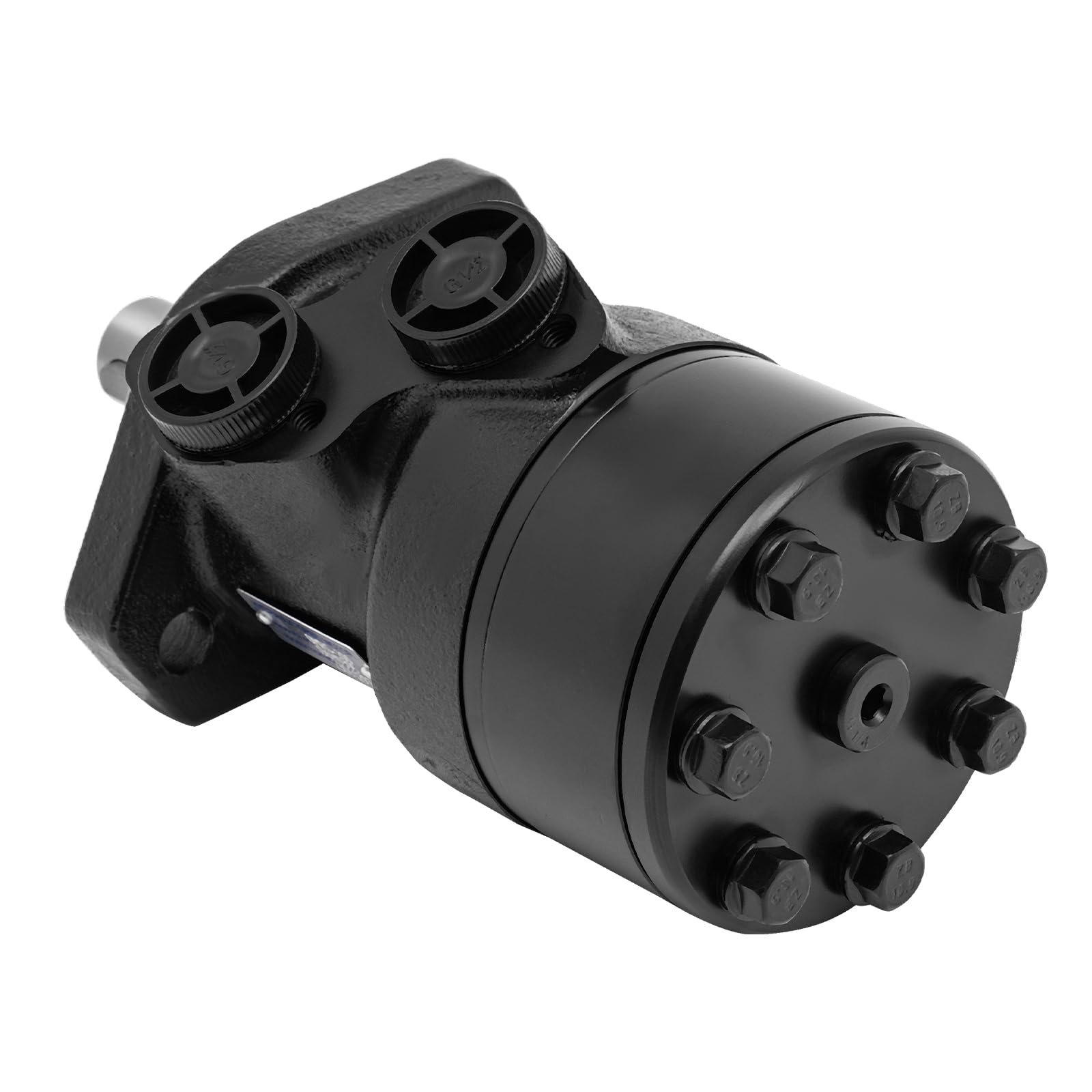

ItemName : Hydraulic Motor Diamond Flange BMR-200 Replace Hydraulic Motor Orbital Shaft 25mm High Speed High Torque High Accuracy Cycloid Hydraulic Motor Used in The Rotating Mechanisms of Various Machinery
ItemPackageDimensions_Height : 10.24 inches
ItemPackageDimensions_Length : 5.12 inches
ItemPackageDimensions_Width : 3.94 inches
ItemTypeKeyword : hydraulic-motors
Manufacturer : MuChaIOAK
Material : Cast Iron, Rubber
ModelName : Diamond Flange BMR-200
ModelNumber : Diamond Flange BMR-200
NumberOfItems : 1
PartNumber : 78151
ProductDescription :

Specification

Style: Modern

Color: Black

Model: Diamond Flange BMR-200

Displacement: 200CC

Material: Cast Iron, Rubber

Surface Treatment: Painting

Number of Items: 1

Assembly Required: Yes

Mount Type: Mechanical Equipment

Port Size: G1/2''

Net Weight: 7.9kg/17.42lbs

Gross Weight: 8.5kg/18.743lbs

Package Size: 26*13*10cm/10.24*5.12*3.94inch

Max Speed: 284/339 RPM(Continuous/Discontinuous)

Flow: 57/68 LPM (Continuous/Discontinuous)

Torque N.m: 285/319 (Continuous/Discontinuous)

Pressure Drop: 110/124 Bar (Continuous/Discontinuous)

Package Included

1* Hydraulic Motor

Notes

1. We recommend that the normal operating oil temperature is 20~60℃/68-140℉, and the maximum system operating temperature is 90℃/194℉ (not more than one hour). The kinematic viscosity of the oil at 40°C/104℉ is 42-74mm2/s. The hydraulic oil can be selected according to the actual working and ambient temperature.

2. We recommend that the filter precision be 10-30 microns. It is better to add a magnetic block at the bottom of the oil tank to prevent metal chips from entering the system. The solid pollution level of working oil shall not be higher than 19/16.

3. The motor can be used in series or parallel. When the back pressure exceeds 10MPA (the rotating speed is lower than 200RPM), the external drain port must be used for pressure relief. It is better to connect the external drain port directly to the oil tank.

4. In order to make the motor have a long service life, the best working condition of the motor should be 1/3-2/3 of the rated working condition. When loading the motor, it should be operated at 30% of the rated pressure for about 1 hour. In any case, before loading the motor, ensure that the motor is filled with oil.

5. It is strongly recommended to run the motor at 30% load for about 1 hour before running at full load to allow the motor to be fully run-in.

ProductSiteLaunchDate : 2024-06-03T10:42:23.446Z
Speed : 200 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26101200
