Specification
Brand : Zerodis
BulletPoint1 : [HIGH PERFORMANCE] - This brushless motor controller is designed to deliver high performance with an operating voltage range of 12V-36V and a maximum current of 15A, making it suitable for various applications.
BulletPoint2 : [WIDE TEMPERATURE RANGE] - With an operating temperature range of -40°C to 85°C, this brushless motor driver board is suitable for use in a wide range of environmental conditions.
BulletPoint3 : [POWERFUL DRIVER BOARD] - With a driver power of up to 500W, this brushless motor controller board is capable of delivering strong and efficient performance for your motor.
BulletPoint4 : [PRECISE SPEED CONTROL] - The speed voltage range of 0.1V-5V allows for precise speed control, ensuring that you can adjust the motor's speed to your specific requirements.
BulletPoint5 : [ AND - Made with materials and built to withstand conditions, this motor controller driver board offers long-lasting durability and performance.
Color : Braker Key throttle kit
Department : unisex-adult
ExternallyAssignedProductIdentifier1 : 0747495769394
ExternallyAssignedProductIdentifier2 : 747495769394
ImportDesignation : Imported
IncludedComponents : 1 x Brushless Motor/ 1 x Controller/ 1 Set x Handlebars/ Other Accessories
IncludedComponents1 : 1). 1 x 500W brushed controller (with fuse wire)
IncludedComponents2 : 2). 1 x Key throttle (or handle throttle or thumb throttle or pedal throttle)
IncludedComponents3 : 3). 1 x Brake lever (optional)
IncludedComponents4 : 4). Some connectors

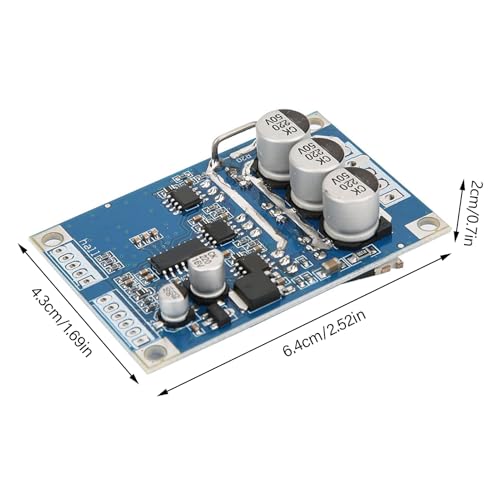

ItemName : DC 12V-36V 15A Brushless Motor Controller Board 500W for Electric Scooter, Capacity500W, Speed Voltage 0.1V-5V
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sports-scooter-motors
Manufacturer : Zerodis
Material : Aluminum
ModelName : Zerodisghs5k0atu7
ModelNumber : Zerodisghs5k0atu7
NumberOfItems : 1
PartNumber : Zerodisghs5k0atu7
ProductDescription : 1. Operating voltage: DC 12V-36V
2. Operating Current: 3. Driver Power: 4. Speed Voltage: 0.1V-5V
5. Operating Temperature:-40-85°C

Spec:
Description:
Brand New &
Specification:
Operating voltage: DC 12V-36V
Operating Current: Driver Power: Speed Voltage: 0.1V-5V
Operating Temperature:-40-85°C
Humidity: 90%RH
Stall :Yes
Enable Control: Yes
Over-current : Yes
Steering control: Yes
Speed control : Yes
Size: 63*42*17mm(L*W*H); Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm
Power terminal Out:
VCC(positive power supply)
GND(negative one)
MC(motor phases W)
MB(motor phases V)
(motor phase U)
Set for the control side:
GND control terminal ground
VR the governor end 0-5V(corresponding to 10% of motor speed -)
reversing control(connected to 5V or ground can the motor rotation direction)
M tachometer pulse output(depending on the number of motor poles corresponding to the number of pulse per revolution of the output number)
EL enable control terminal(connected to 5V ot ground running then 5V, grounding the motor stops)
5V 5V control terminal
HALL for the hall terminals:
5V Hall power positive
Ha Hall
Hb Hall
Hc Hall
GND Hall negative
Wiring:
Control terminal for SET:
1. The motor speed control wiring methods: available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster.
2. Motor steering control wiring methods: you can switch control can also be connected to the MCU control, to GND in one direction, then in 5V.
3. Pulse speed : high and low output . IC can not understand the information with the customer request.
Hall inputs for
ProductSiteLaunchDate : 2024-03-15T13:31:27.424Z
Size : 24V 500W
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111500
Voltage : 72 volts
WarrantyDescription : no
Wattage : 3000 watts
