Specification
Brand : Jauarta
BulletPoint1 : WS55-220 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC
BulletPoint2 : The controller can drive the DLDC motor with HALL or without HALL
BulletPoint3 : The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration, over current protection, overload protection, less phase line. protection, phase line short protection, alarm output, speed output,
BulletPoint4 : This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc
BulletPoint5 : External potentiometer control/external voltage control
IncludedComponents : No

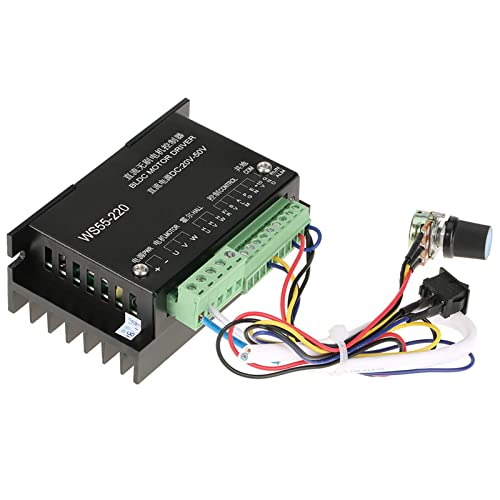

ItemName : WS55 220 DC 48V 500W CNC Brushless Spindle BLDC Motor Driver Controller
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Jauarta
ModelName : FILFEELmebqzk5wgs
ModelNumber : Jauarta1m7dgicfo2
NumberOfItems : 1
PartNumber : Jauarta1m7dgicfo2
ProductDescription : Specifications:
Rated voltage: 20 to 50 VDC
Rated current: 12A
Current limiting: 15A
Maximum speed: 20000RPM( the specific speed depends on the motor itself and load)
Storage temperature: -20℃~+65℃
Usage environment: Avoid direct with dust, fumes and corrosive gases
Temperature: 0-45℃
Humidity:
80%, no frost, frost
Shock: 5.9m/S2 Maximum
Storage humidity: 0~95%RH
Size: Approx. 9.5 x 6 x 3.5cm / 3.74 x 2.36 x 1.38inch
Weight: 258g
Detail:
1.Two modes of speed regulation:
External potentiometer: through this potentiometer speed regulation;
External voltage: external 10VDC voltage speed regulation;
Note: The two speed regulation can not be used simultaneously
2. Speed output PG signal: There is a 5v-revolution pulse output between the port and the ground.
The output frequency is set to P (Hz), the motor class logarithm is N, and the speed is F (RPM), then the output speed frequency is P=F*N/60.
3. Alarm output ALM signal:There is an 5V alarm pulse output between the port and the ground.
4. Positive inversion function:
F/R:Fiddle the toggle switch on the corresponding side, the motor steering direction can be changed. For the toggle switch, the white part is up and down, then twang it up and down. For the toggle switch, the white part is horizontal, and the twang horizontally.
5. Start-stop (two control modes):
1. External switch EN: Transfer through switch.
2. Side toggle switch EN: for the toggle switch, the white part is up and down, then down for the start; for the toggle switch, the white part is horizontal, then dial to start

Package included:
1 x Motor Driver Controller with cable


ProductSiteLaunchDate : 2024-10-08T11:30:09.574Z
UnspscCode : 26000000
