Specification
Brand : Gump's grocery
BulletPoint1 : Single-chip motor driver for sinusoidal microstep control of stepping motors
BulletPoint10 : This item has new two-way large power silicon controlled rectifier and the current can be up to 80A, which is a good solution to over-current of electric stove wire caused by low resistance during cooling
BulletPoint2 : Forward and reverse rotation
BulletPoint3 : Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)
BulletPoint4 : High output withstand voltage: VDSS= 40 V
BulletPoint5 : High output current: IOUT= TB6560AHQ: 3.5 A (peak) TB6560AFG: 2.5 A (peak)
BulletPoint6 : It can easily adjust the output voltage on a scale of 0-100% (nonlinear) to power electric device
BulletPoint7 : Designed with large and thick heat sink that would enhance heat dissipation
BulletPoint8 : Voltage regulator has voltage absorbing circuit and effective protects large power silicon controlled rectifier, longer service life and more durable
BulletPoint9 : This voltage regulator is adjusted with button which is much more stable than potentiometer
Color : Red
ExternallyAssignedProductIdentifier : 3458519479041
ExternallyAssignedProductIdentifier1 : 0695510003421
ExternallyAssignedProductIdentifier2 : 695510003421
IncludedComponents : DC Motor Driver

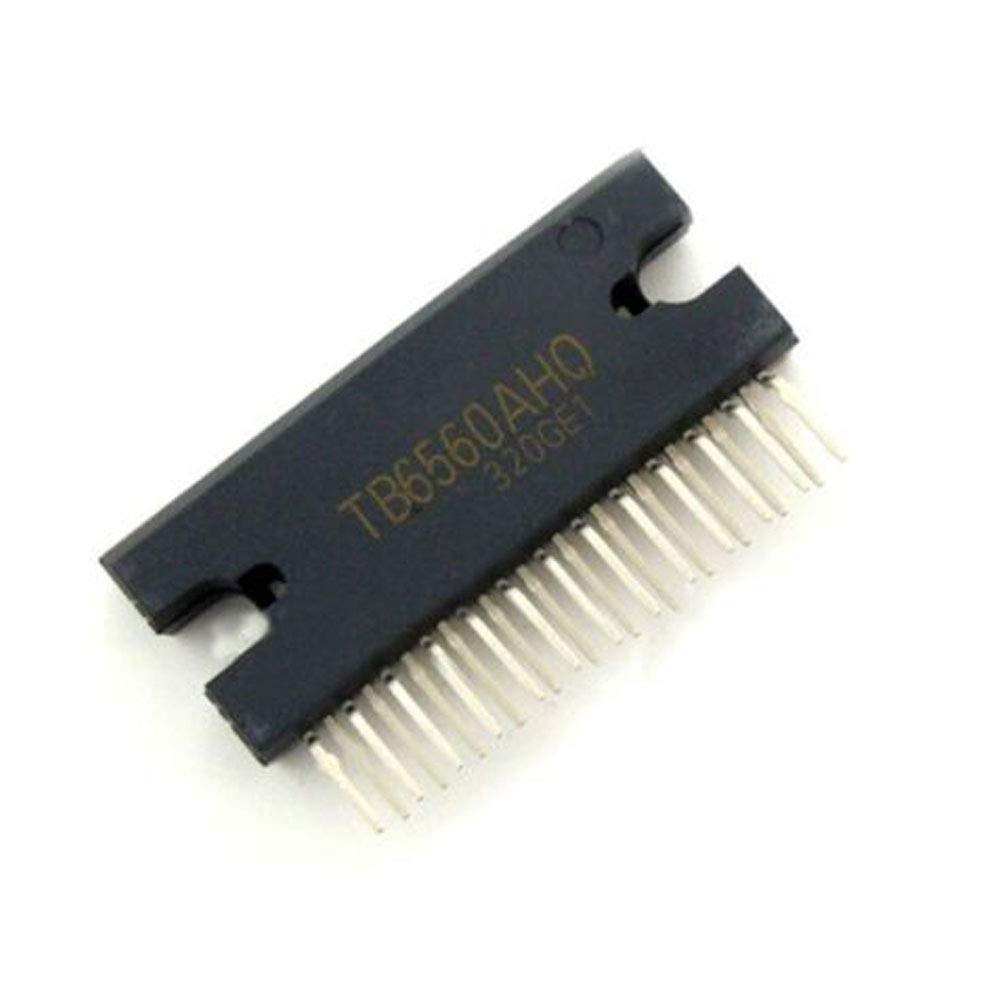

ItemName : TB6560AHQ PWM Chopper Bipolar Driver IC for Stepper Motor Controller
ItemPackageDimensions_Height : 14.1 centimeters
ItemPackageDimensions_Length : 0.5 centimeters
ItemPackageDimensions_Width : 8.1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Gump's grocery
Material : Copper
ModelName : Mrisatavtgp0riu6m
ModelNumber : TG377
NumberOfItems : 1
PartNumber : TG377
ProductDescription : Descriptions:
The TB6560AHQ/AFG is a PWM chopper-type stepping motor driver IC designed for sinusoidal-input microstep control of bipolar stepping motors. The TB6560AHQ/AFG can be used in applications that require 2-phase, 1-2-phase, 2W1-2-phase and 4W1-2-phase excitation modes. The TB6560AHQ/AFG is capable of low-vibration, high-performance forward and reverse driving of a two-phase bipolar stepping motor using only a clock signal.

Features
Single-chip motor driver for sinusoidal microstep control of stepping motors
Forward and reverse rotation
Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)
High output withstand voltage: VDSS= 40 V
High output current: IOUT= TB6560AHQ: 3.5 A (peak) TB6560AFG: 2.5 A (peak)
Packages: HZIP25-P-1.27 HQFP64-P-1010-0.50
Internal pull-down resistors on inputs: 100 kΩ (typ.)
Output monitor pin: MO current (IMO (max) = 1 mA)
Reset and enable pins
Thermal shutdown (TSD)
ProductSiteLaunchDate : 2019-12-28T08:01:06.801Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 32101600
Voltage : 220 volts
